PCB high-voltage reed relays for ATE, hipot, medical and insulation monitoring.
Reed Relay Selection Guide
Select by withstand voltage, package/output style, contact form and coil voltage. Breakdown/dielectric withstand is not the same as maximum switching voltage; verify both before design-in.
Voltage indexPackage guideEngineering RFQ

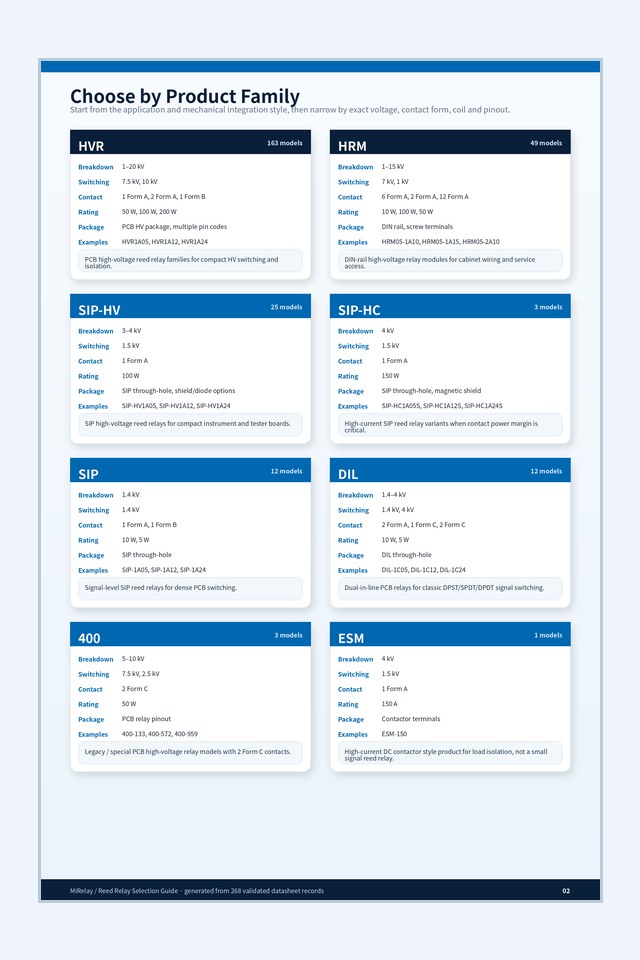

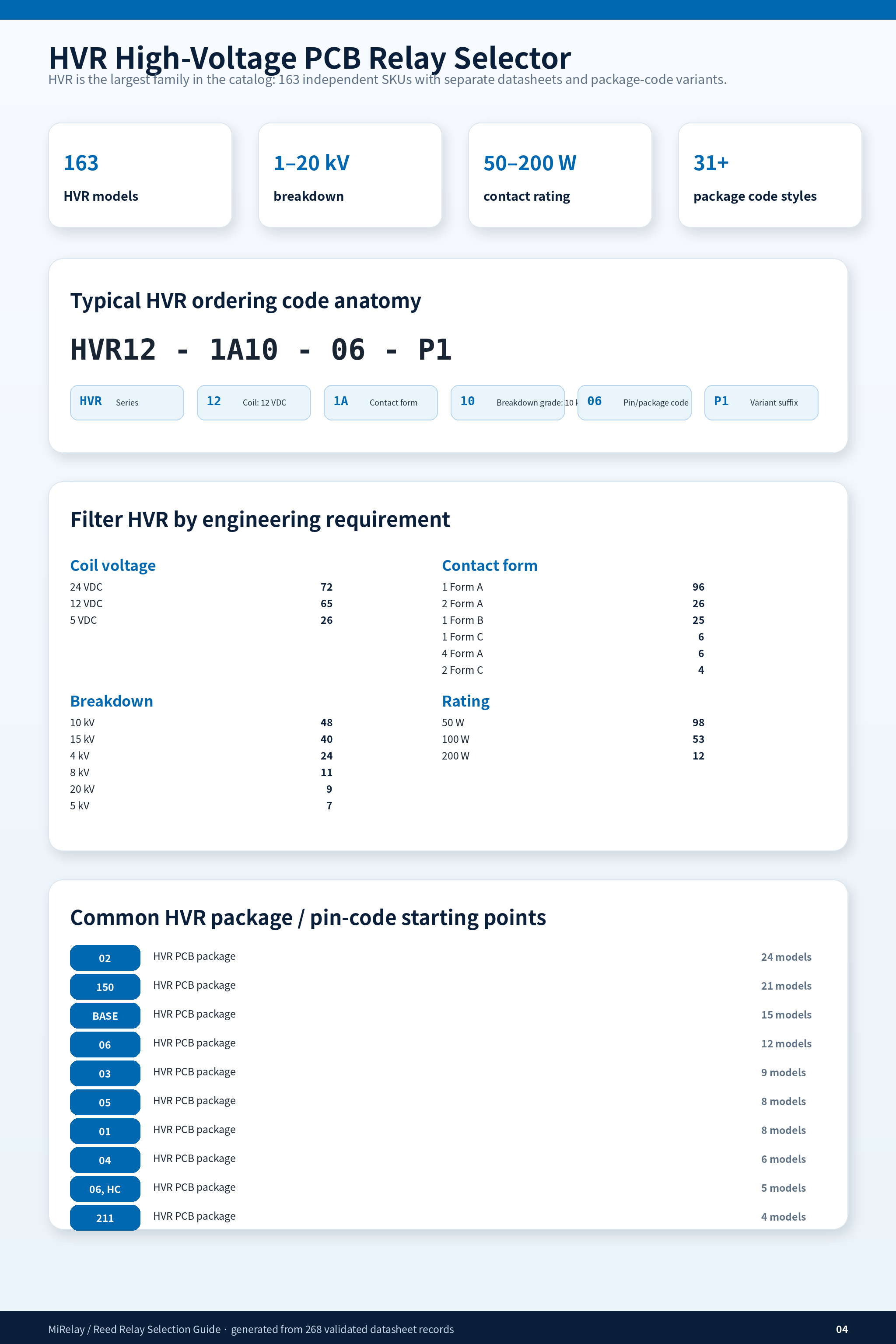

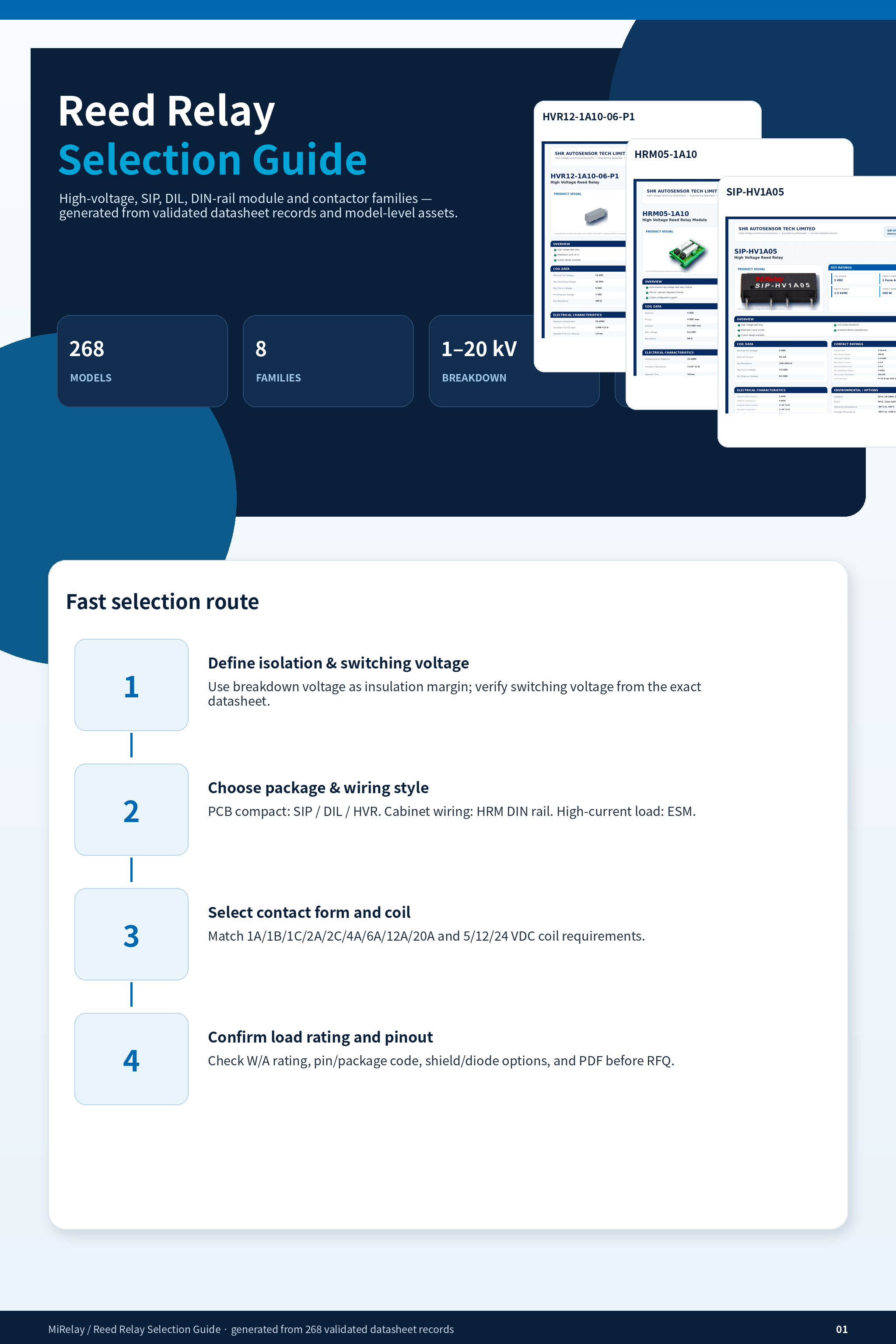

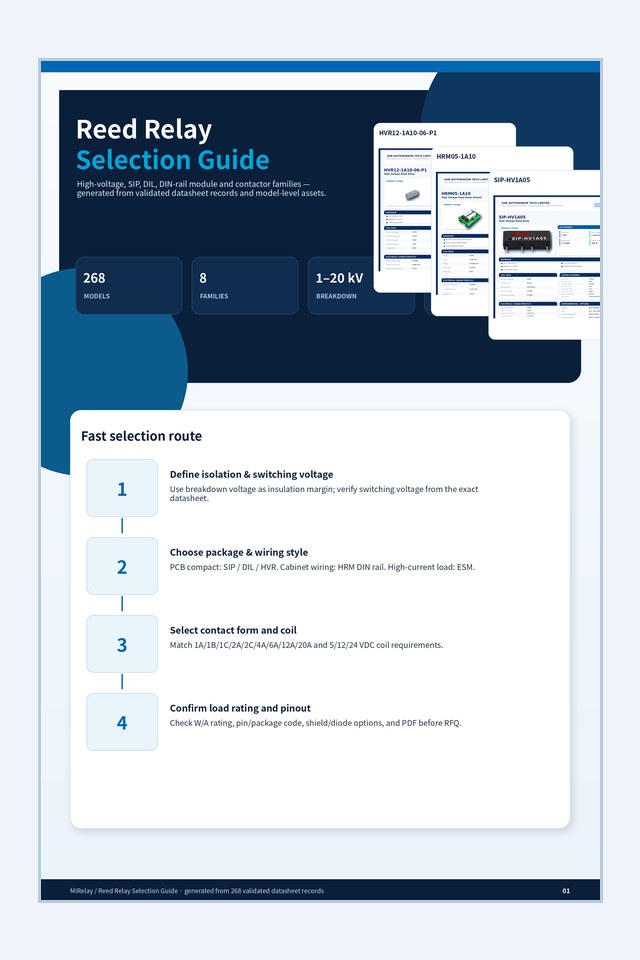

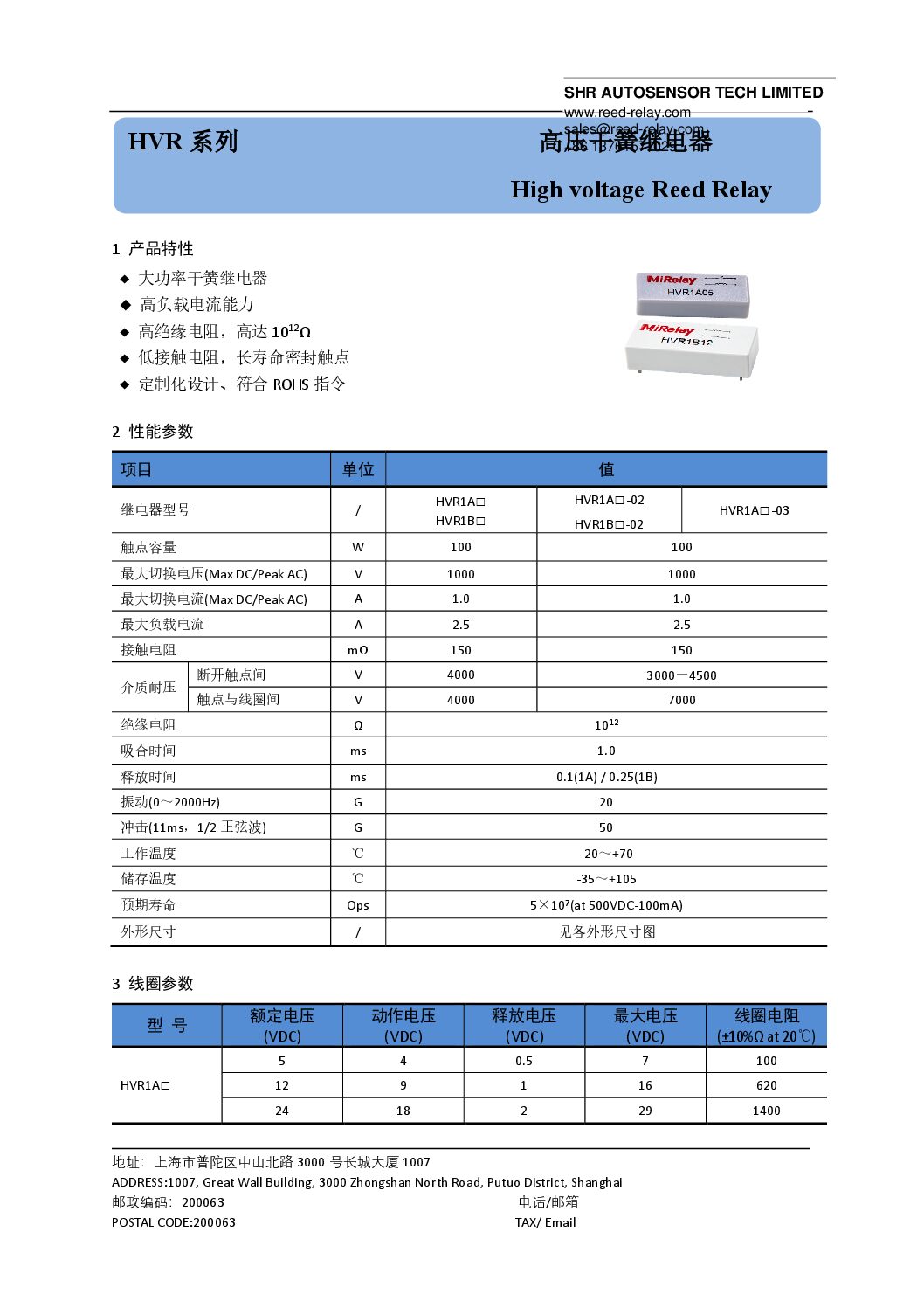

Visual Selection Guide Image Manual
A 6-page, image-based engineering selection manual covering product-family routing, breakdown-voltage bands, HVR package selection, representative pinouts and RFQ requirements. Built from the validated 268-model professional datasheet catalog.

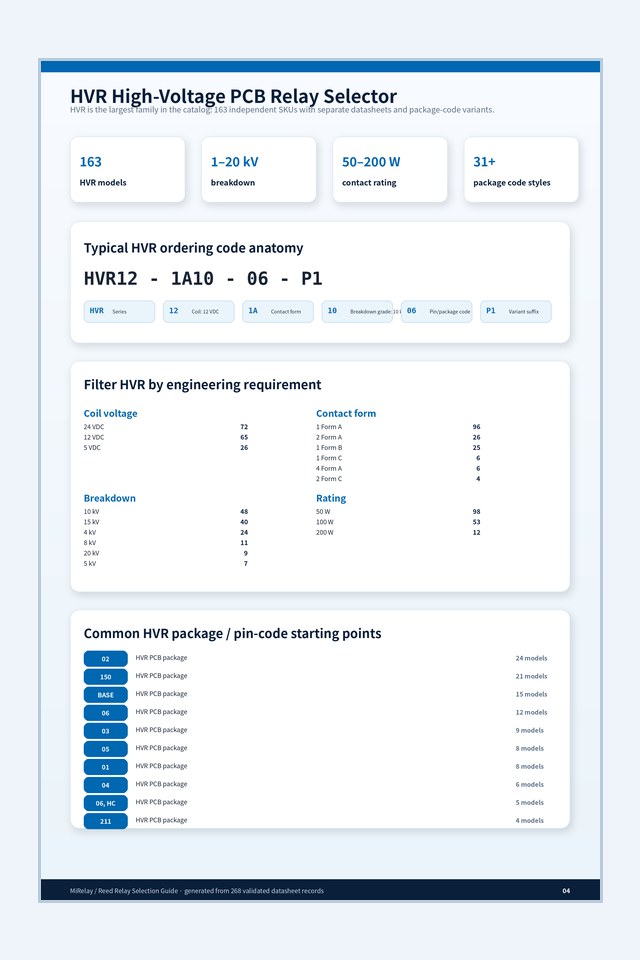

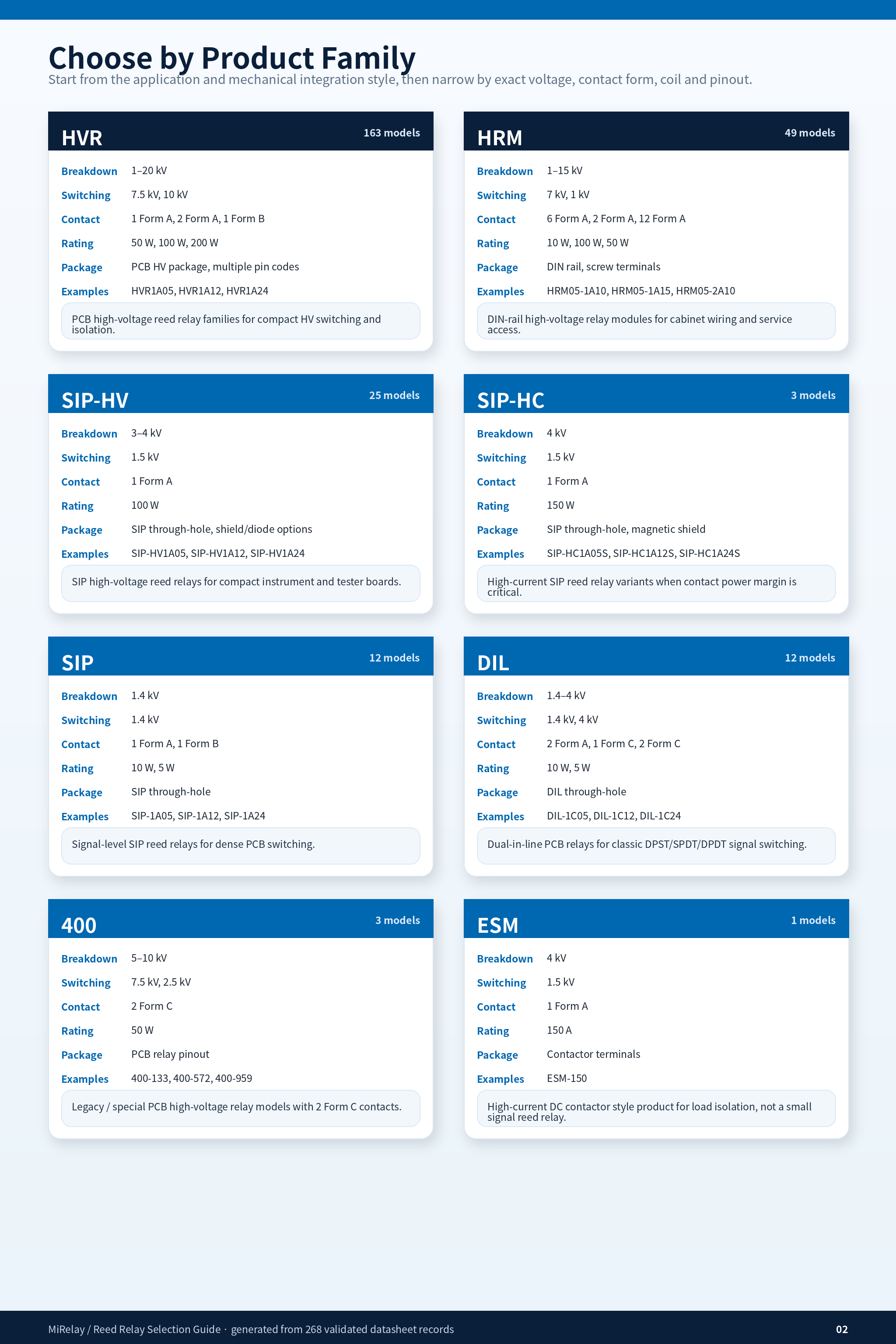

Quick path by product family
HRM
DIN-rail / terminal-block relay modules for cabinet wiring and HV control panels.
SIP-HV / SIP / DIL
Compact PCB reed relays where footprint, coil drive and contact form are the key constraints.
ESM / Contactors
High-current DC switching products for battery, charging and power-control applications.

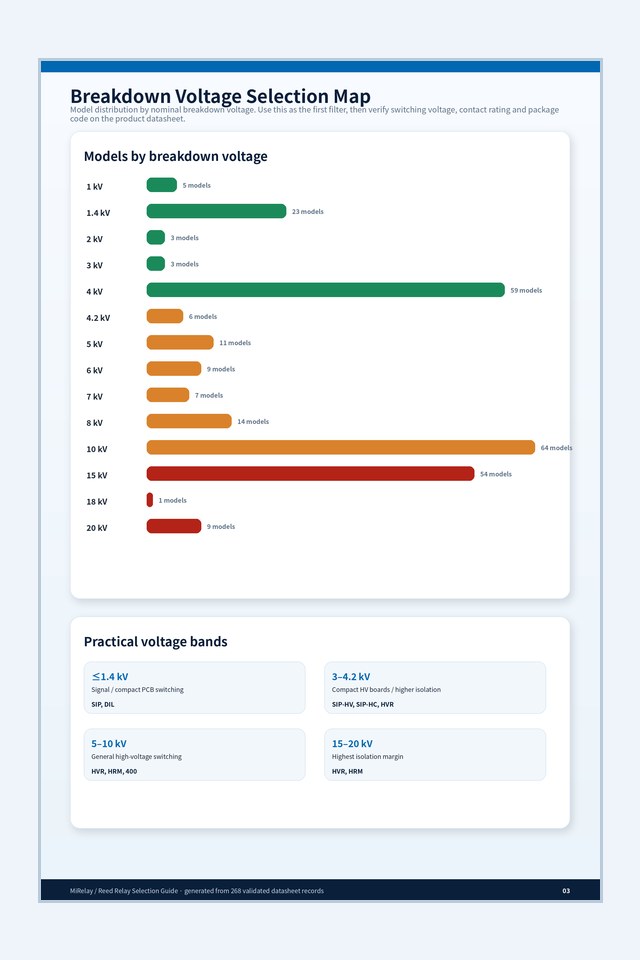

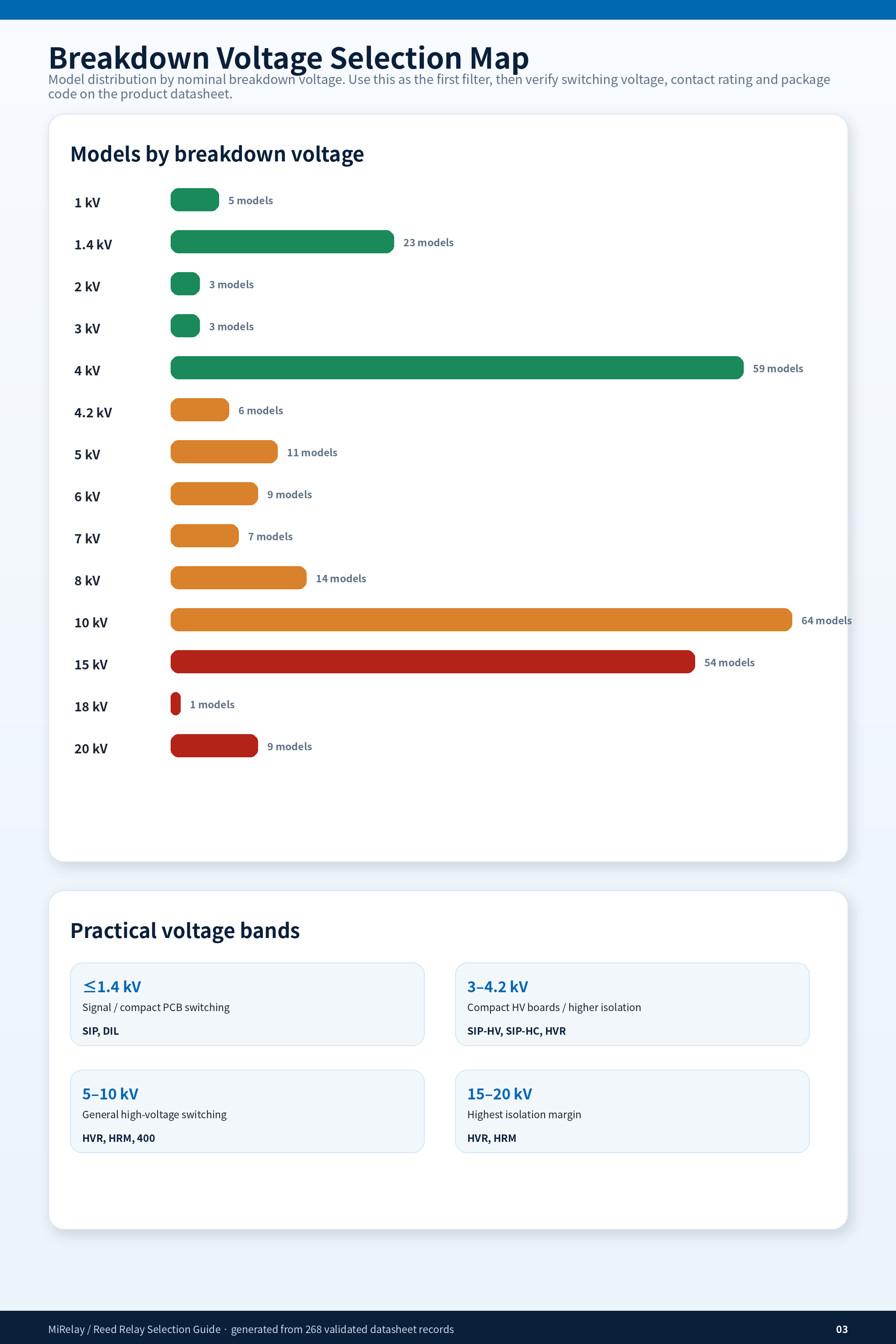

Withstand-voltage index
0.2 kV class · 13 models
0.25 kV class · 10 models
0.45 kV class · 1 models
1 kV class · 5 models
2 kV class · 3 models
3 kV class · 3 models
4 kV class · 52 models
ESM-150HRM05-12A04HRM05-20A04HRM12-12A04HRM12-20A04HRM24-12A04HRM24-20A04HVR05-2A04-01HVR05-2A04-02HVR05-2A04-03HVR12-2A04-01HVR12-2A04-02HVR12-2A04-03HVR1A05HVR1A12HVR1A24HVR1B05HVR1B05-02HVR1B12HVR1B12-02HVR1B24HVR1B24-02HVR24-2A04-01HVR24-2A04-02HVR24-2A04-03SIP-HC1A05SSIP-HC1A12SSIP-HC1A24SSIP-HV1A05SIP-HV1A05-LPSIP-HV1A05DSIP-HV1A05D-LPSIP-HV1A05DSSIP-HV1A05DS-LPSIP-HV1A05SSIP-HV1A05S-LPSIP-HV1A12SIP-HV1A12-LPSIP-HV1A12DSIP-HV1A12D-LPSIP-HV1A12DSSIP-HV1A12DS-LPSIP-HV1A12SSIP-HV1A12S-LPSIP-HV1A24SIP-HV1A24-LPSIP-HV1A24DSIP-HV1A24D-LPSIP-HV1A24DSSIP-HV1A24DS-LPSIP-HV1A24SSIP-HV1A24S-LP
4.2 kV class · 6 models
5 kV class · 11 models
6 kV class · 9 models
7 kV class · 7 models
8 kV class · 15 models
10 kV class · 66 models
400-572400-959HRM05-1A10HRM05-2A10HRM05-2B10HRM05-6A10HRM12-12A10HRM12-1A10HRM12-2A10HRM12-2B10HRM12-6A10HRM24-12A10HRM24-1A10HRM24-2A10HRM24-2B10HRM24-6A10HVR05-1A10-02-YPHVR05-1A10-06HVR05-1A10-150HVR05-1B10-02HVR05-1B10-06HVR05-1B10-150HVR12-1A10-02HVR12-1A10-03HVR12-1A10-04HVR12-1A10-05HVR12-1A10-06HVR12-1A10-06-P1HVR12-1A10-150HVR12-1A10-150-YPHVR12-1A10-211HVR12-1A10-211-P4HVR12-1A10-26HVR12-1B10-02HVR12-1B10-06HVR12-1B10-150HVR12-2A10-01HVR12-2A10-01-YPHVR12-2A10-150HVR12-2C10-03HVR12-4A10-150HVR12-4A10-P10HVR24-1A10-02HVR24-1A10-04HVR24-1A10-05HVR24-1A10-06HVR24-1A10-06-P1HVR24-1A10-06-P5HVR24-1A10-150HVR24-1A10-151HVR24-1A10-154HVR24-1A10-156HVR24-1A10-211HVR24-1A10-211-P2HVR24-1A10-211-P3HVR24-1A10-211-P4HVR24-1A10-26HVR24-1B10-02HVR24-1B10-06HVR24-1B10-150HVR24-2A10-01HVR24-2A10-01-YPHVR24-2A10-150HVR24-2C10-03HVR24-4A10-150HVR24-4A10-P10
15 kV class · 51 models
HRM05-1A15HRM05-2A15HRM05-2B15HRM05-6A15HRM12-12A15HRM12-1A15HRM12-2A15HRM12-2B15HRM12-6A15HRM24-12A15HRM24-1A15HRM24-2A15HRM24-2B15HRM24-6A15HVR05-1A15-06HVR05-1A15-150HVR12-1A15-02HVR12-1A15-04HVR12-1A15-05HVR12-1A15-06HVR12-1A15-150HVR12-1A15-150-YPHVR12-1A15-156HVR12-1A15-211HVR12-1A15-211-P2HVR12-1A15-211-P4HVR12-1A15-26HVR12-1B15-06HVR12-1B15-150HVR12-2A15-01HVR12-2A15-01-YPHVR12-2A15-150HVR12-4A15-150HVR24-1A15-02HVR24-1A15-04HVR24-1A15-05HVR24-1A15-06HVR24-1A15-150HVR24-1A15-150-P6HVR24-1A15-150-YPHVR24-1A15-211HVR24-1A15-211-P2HVR24-1A15-211-P3HVR24-1A15-26HVR24-1B15-04HVR24-1B15-06HVR24-1B15-150HVR24-2A15-01HVR24-2A15-01-YPHVR24-2A15-150HVR24-4A15-150
18 kV class · 1 models

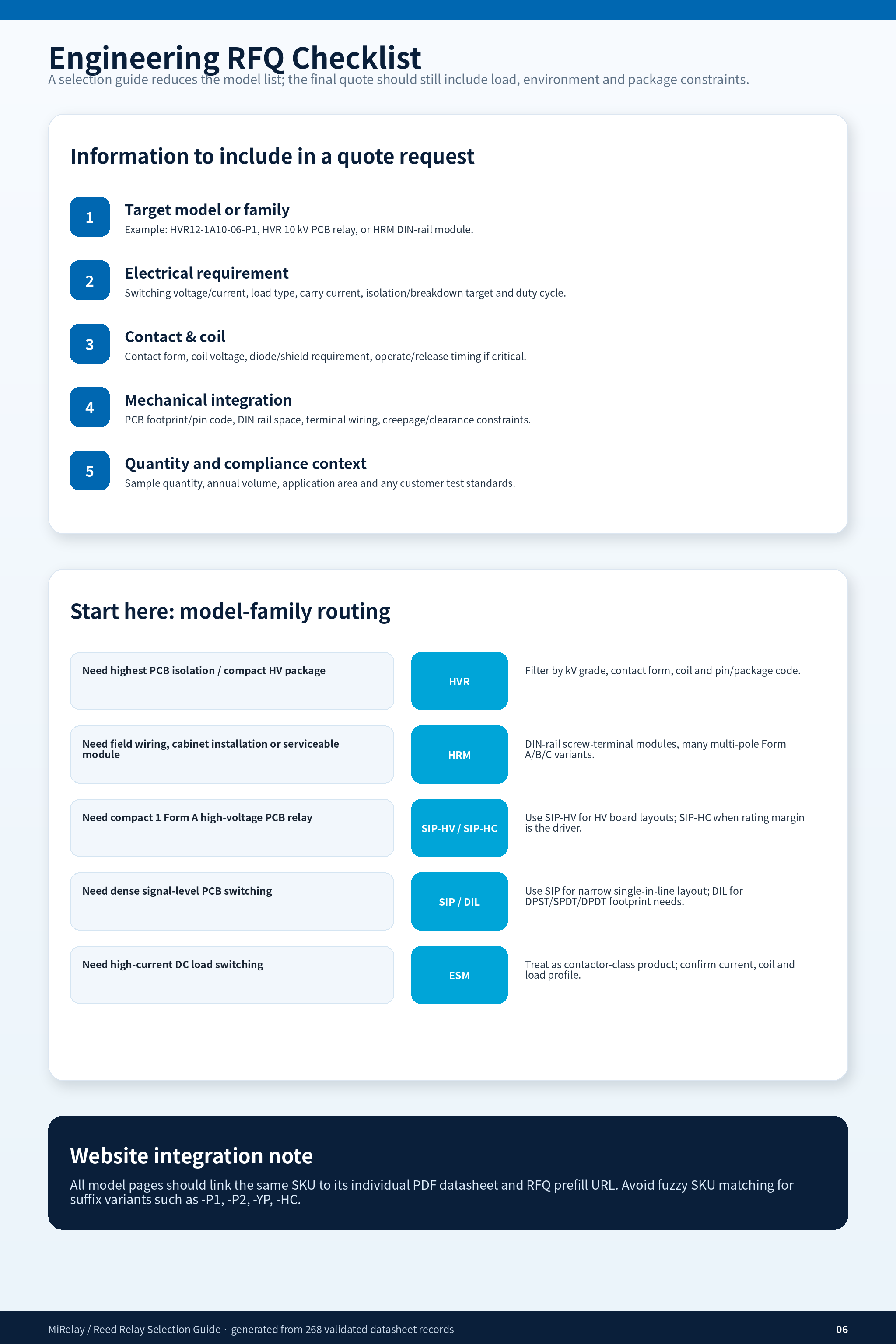

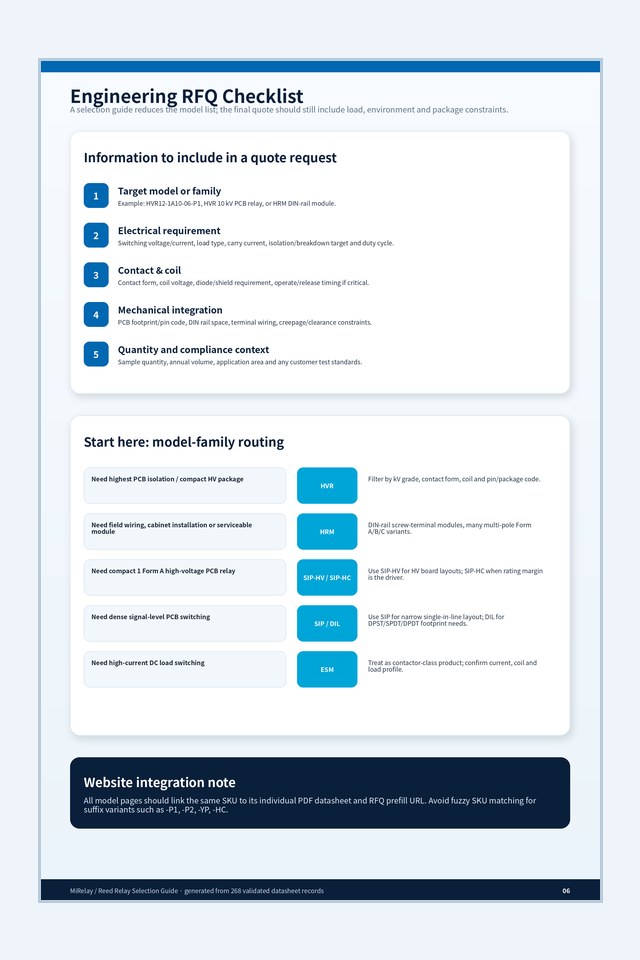

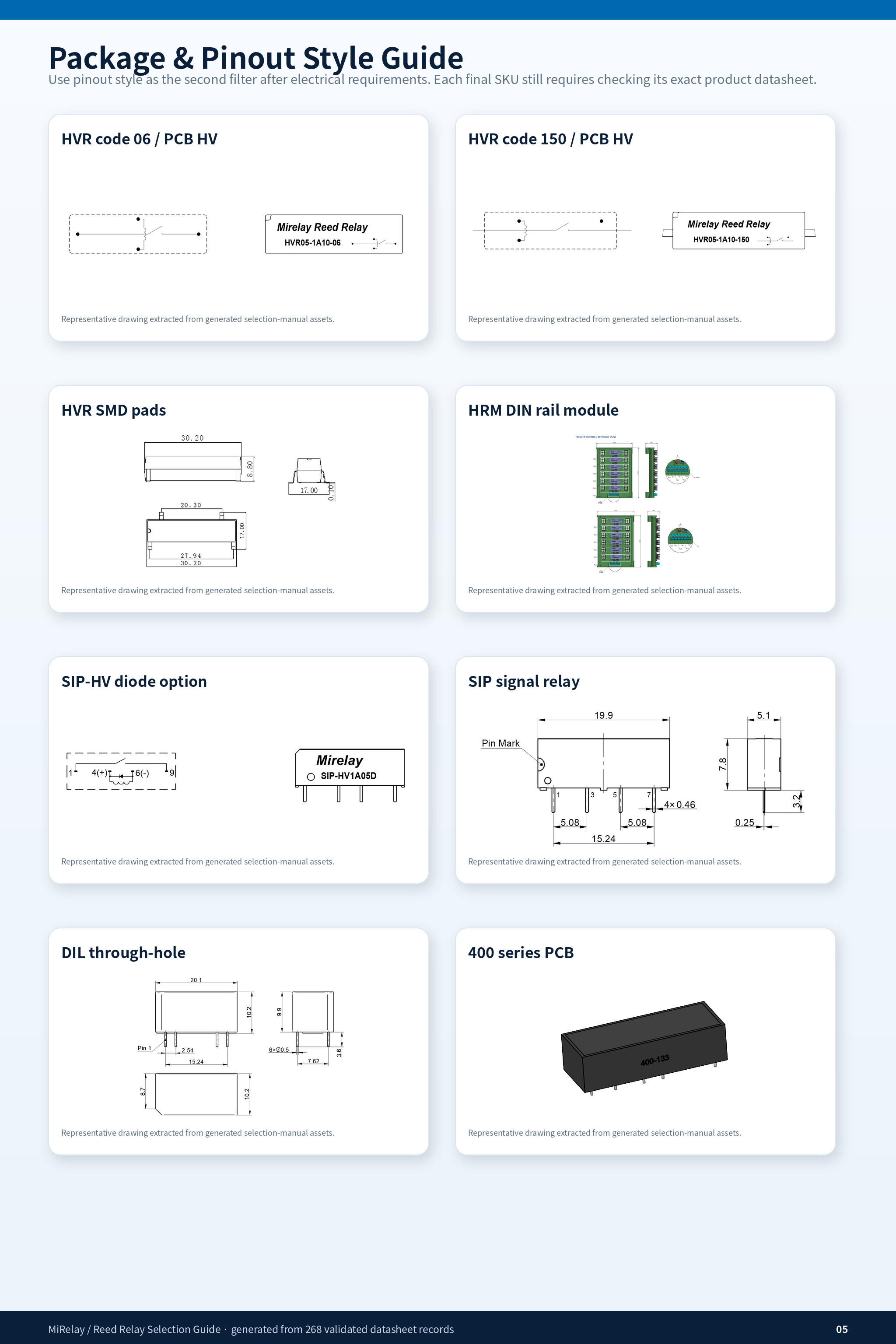

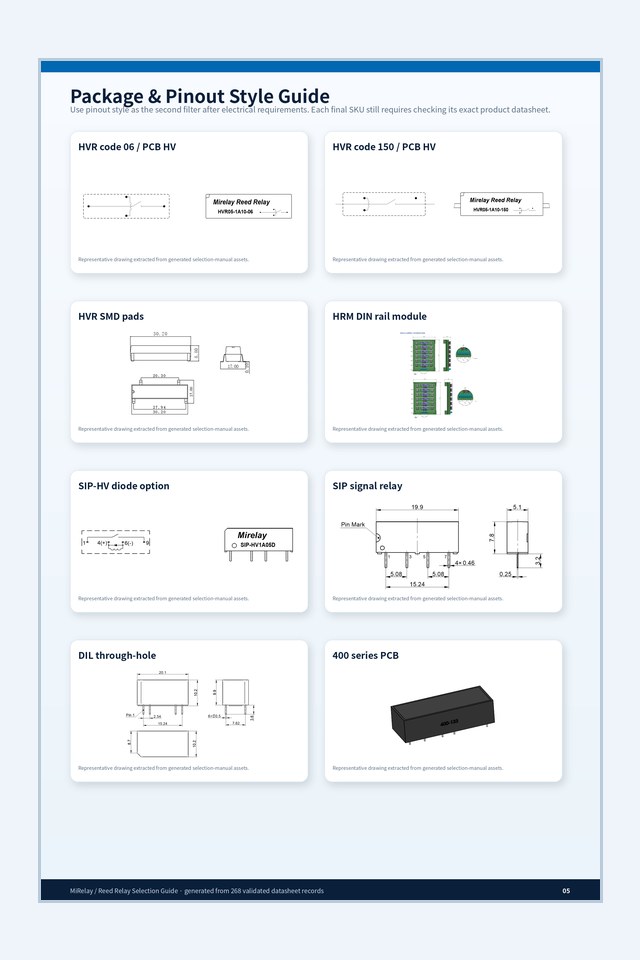

RFQ checklist
- Target switching voltage/current and load type.
- Required dielectric/breakdown withstand voltage.
- Coil voltage and drive circuit.
- Contact form and channel count.
- PCB footprint, terminal wiring or module installation.
- Quantity, sample need and target delivery window.
