DIL-1C24 High Voltage Reed Relay

Technical product information for engineering review. Request datasheet, samples, pricing, lead time, or a cross-reference recommendation for this part.

Request Quote Cross Reference

DIL-1C24 High Voltage Reed Relay

DIL-1C24 High Voltage Reed Relay

DIL-1C24 High Voltage Reed Relay for engineering selection. 1 Form C / SPDT contact.

Price on Request

This item needs engineering confirmation before purchase. Send quantity, application and target specifications for pricing.

Request Pricing Email Sales

Sample, Datasheet & Engineering Support

  • Model: DIL-1C24
  • Purchase path: RFQ first
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

SKU: DIL-1C24 Categories: ,
Model detail

DIL-1C24 product details, applications and specifications

Select this family for compact signal-level switching. Confirm breakdown voltage, coil power and switching current against the model datasheet before final design. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

Standard & Miniature Reed Relay principle illustration
1Control coil drive
2Hermetic reed switch
3SIP / miniature package
4PCB signal output

Main specifications for RFQ

Public model
DIL-1C24
Product family
DIL Reed Relays, Standard & Miniature Reed Relays
Voltage classes
Signal-level ratings by series; model-specific breakdown voltage per datasheet
Contact forms
1 Form A / 1 Form B and series-dependent options
Coil options
5 VDC / 12 VDC / 24 VDC nominal; custom coils on request
Insulation focus
Sealed low-leakage signal switching
Mounting
PCB through-hole, SMD or connector options
Datasheet
Available as individual PDF for this model
Datasheet-style view

DIL-1C24 technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Voltage classes
Signal-level ratings by series; model-specific breakdown voltage per datasheet

Coil / control data

Coil options
5 VDC / 12 VDC / 24 VDC nominal; custom coils on request

Contact / output data

Contact forms
1 Form A / 1 Form B and series-dependent options

Mechanical & mounting

Insulation focus
Sealed low-leakage signal switching
Mounting
PCB through-hole, SMD or connector options

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.
  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For reed relays, keep switching voltage, stand-off/hold-off voltage and dielectric strength separate during selection.
  • Product family context: Standard & Miniature Reed Relay.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Separate switching, stand-off and dielectric ratingsSwitching voltage is the voltage the relay may open or close under specified load. Stand-off/hold-off and dielectric ratings are withstand tests and should not be treated as hot-switching capability.
Dry reed relays are low-bounce, not universally zero-bounceUse model datasheets for operate time and bounce behavior. Reserve bounce-free language for mercury wetted contacts or explicitly specified designs.
Load type controls lifeCapacitive inrush, inductive energy and hot-switching conditions can reduce contact life. Confirm load type, duty cycle and safety margin through datasheet review and RFQ.

Typical applications

  • Test and measurement equipment
  • Telecom and data-line switching
  • Industrial control boards
  • Medical diagnostic instruments

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

DIL-1C24 ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering DIL-1C24?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for DIL-1C24?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Test and measurement equipment, Telecom and data-line switching, Industrial control boards, Medical diagnostic instruments.

Recommended next steps

DIL-1C24 selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView DIL Reed Relays familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download DIL-1C24 Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

DIL-1C24 High Voltage Reed Relay for engineering selection. 1 Form C / SPDT contact. Values are organized from the professional datasheet for engineering pre-selection. Confirm final switching load, insulation and footprint before order.

SeriesDIL
Withstand0.2 kV
Coil24 VDC
Contact1 Form C / SPDT
Download PDF DatasheetRequest Engineering RFQ

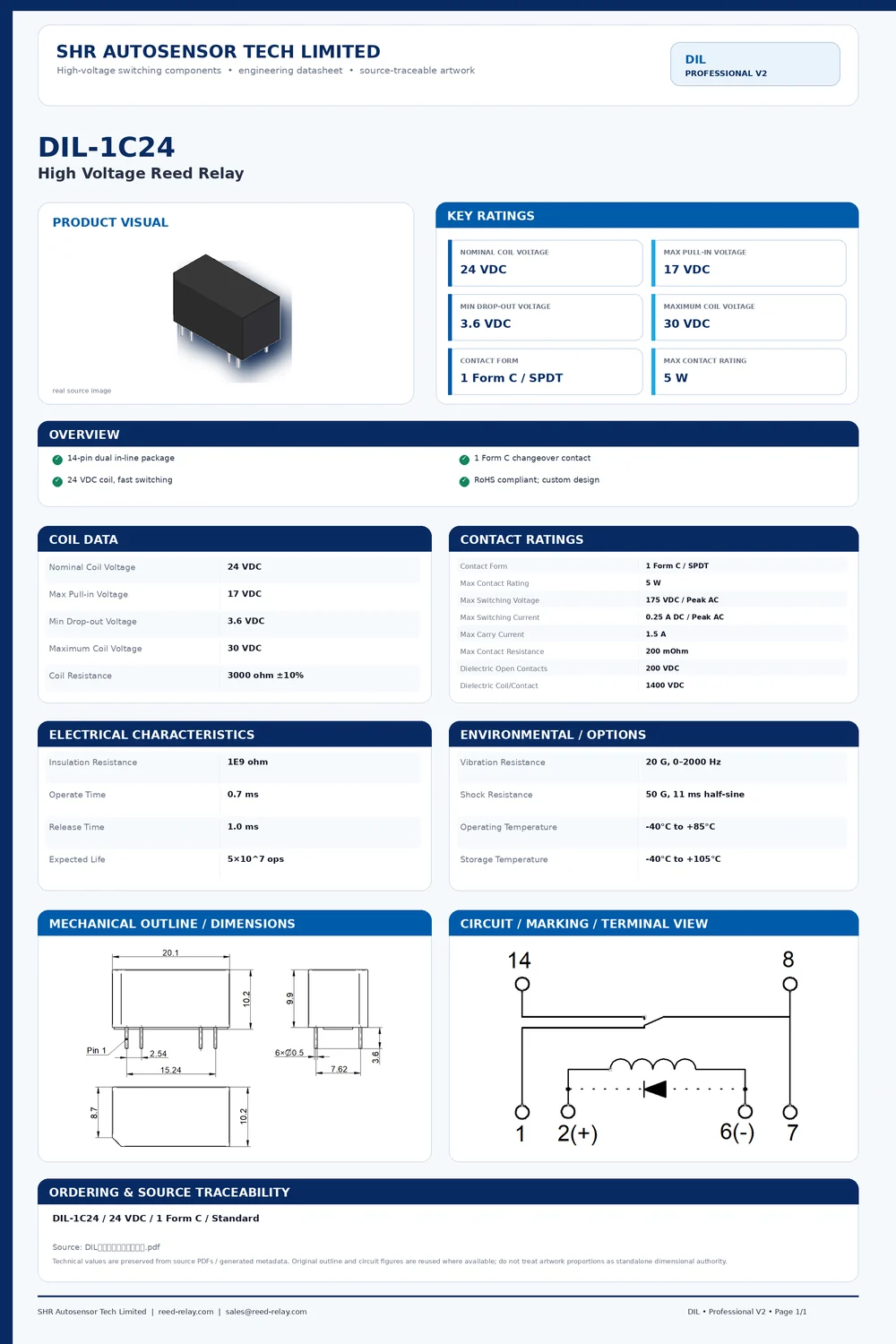

DIL-1C24 professional datasheet preview

Technical specifications

Nominal Coil Voltage 24 VDC
Max Pull-in Voltage 17 VDC
Min Drop-out Voltage 3.6 VDC
Maximum Coil Voltage 30 VDC
Coil Resistance 3000 ohm ±10%
Contact Form 1 Form C / SPDT
Max Contact Rating 5 W
Max Switching Voltage 175 VDC / Peak AC
Max Switching Current 0.25 A DC / Peak AC
Max Carry Current 1.5 A
Max Contact Resistance 200 mΩ
Dielectric Open Contacts 200 VDC
Dielectric Coil/Contact 1400 VDC
Insulation Resistance 1E9 ohm
Operate Time 0.7 ms
Release Time 1.0 ms
Expected Life 5×10^7 ops
Vibration Resistance 20 G, 0–2000 Hz
Shock Resistance 50 G, 11 ms half-sine
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +105°C

Selection notes

  • Separate switching voltage from dielectric/breakdown withstand voltage.
  • Check contact form, coil drive and PCB/package outline before design-in.
  • For HRM modules, confirm terminal wiring and panel/cabinet installation requirements.
