SHR SIP Series Reed Relay

SIP-1A05-ATE High Voltage Reed Relay

$60.00

SIP-1A05-ATE High Voltage Reed Relay for engineering selection. 5 VDC coil, 1 Form A contact, 200V ACpk/DC switching, 10 W rating.

Sample, Datasheet & Engineering Support

  • Model: SIP-1A05-ATE
  • Purchase path: Buy sample online
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

购买样品 / Buy Sample

含运费 · 有库存 · 72小时内发货

SKU: SIP-1A05-ATE Categories: ,
Model detail

SIP-1A05-ATE product details, applications and specifications

Select this family for compact signal-level switching. Confirm breakdown voltage, coil power and switching current against the model datasheet before final design. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

SHR SIP Series Reed Relay
Standard & Miniature Reed Relay principle illustration
1Control coil drive
2Hermetic reed switch
3SIP / miniature package
4PCB signal output

Main specifications for RFQ

Public model
SIP-1A05-ATE
Product family
SIP Reed Relays, Standard & Miniature Reed Relays
Contact form
1 Form A
Coil resistance
500 Ω at 20°C
Max pull-in voltage
3.75V DC
Min drop-out voltage
0.5V DC
Max operating voltage
15V DC
Max carrying current
1.0 A
Min breakdown voltage
250V DC
Max contact resistance
100 mΩ
Dielectric strength coil/contact
1.4KV DC
Insulation resistance
1×1010 Ω
Reset time
0.3 ms
Capacitance
across contacts0.4 pF
Datasheet
Available as individual PDF for this model

Specifications above are extracted from the live product content for this model. Confirm final ratings, drawings and ordering code through the PDF datasheet or RFQ before production use.

Datasheet-style view

SIP-1A05-ATE technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Voltage classes
Signal-level ratings by series; model-specific breakdown voltage per datasheet

Coil / control data

Coil options
5 VDC / 12 VDC / 24 VDC nominal; custom coils on request

Contact / output data

Capacitance
across contacts0.4 pF
Contact forms
1 Form A / 1 Form B and series-dependent options

Mechanical & mounting

Insulation focus
Sealed low-leakage signal switching
Mounting
PCB through-hole, SMD or connector options

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.
  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For reed relays, keep switching voltage, stand-off/hold-off voltage and dielectric strength separate during selection.
  • Product family context: Standard & Miniature Reed Relay.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Separate switching, stand-off and dielectric ratingsSwitching voltage is the voltage the relay may open or close under specified load. Stand-off/hold-off and dielectric ratings are withstand tests and should not be treated as hot-switching capability.
Dry reed relays are low-bounce, not universally zero-bounceUse model datasheets for operate time and bounce behavior. Reserve bounce-free language for mercury wetted contacts or explicitly specified designs.
Load type controls lifeCapacitive inrush, inductive energy and hot-switching conditions can reduce contact life. Confirm load type, duty cycle and safety margin through datasheet review and RFQ.

Typical applications

  • Test and measurement equipment
  • Telecom and data-line switching
  • Industrial control boards
  • Medical diagnostic instruments

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

SIP-1A05-ATE ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering SIP-1A05-ATE?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for SIP-1A05-ATE?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Test and measurement equipment, Telecom and data-line switching, Industrial control boards, Medical diagnostic instruments.

Recommended next steps

SIP-1A05-ATE selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView SIP Reed Relays familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download SIP-1A05-ATE Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

SIP-1A05-ATE

SIP Reed Relay, 5V DC coil, 1 Form A, 250V DC breakdown

The SIP-1A05-ATE is a reed relay in an industry-standard SIP package for PCB through-hole mounting, with a 5V DC coil. Hermetically sealed reed contacts provide long life and stable performance for signal switching.

Key Specifications

Package SIP, PCB through-hole mounting
Contact form 1 Form A
Nominal coil voltage 5V DC
Coil resistance 500 Ω at 20°C
Max pull-in voltage 3.75V DC
Min drop-out voltage 0.5V DC
Max operating voltage 15V DC
Max contact rating 10 W
Max switching voltage 200V ACpeak/DC
Max switching current 0.5 A
Max carrying current 1.0 A
Min breakdown voltage 250V DC
Max contact resistance 100 mΩ
Dielectric strength coil/contact 1.4KV DC
Insulation resistance 1×1010 Ω
Operate time (incl. bounce) 0.3 ms
Reset time 0.3 ms
Capacitance across contacts 0.4 pF
Operating temperature -20 to +70°C
Storage temperature -35 to +105°C
Soldering temperature 260°C max, 5 sec

Key Highlights

  • Hermetically sealed for long life
  • Low Contact Resistance
  • Excellent Lifetime Characteristics
  • Design for ATE applicatiin

Applications

  • Telecommunications
  • Security systems
  • Instrumentation
  • Industrial electronics

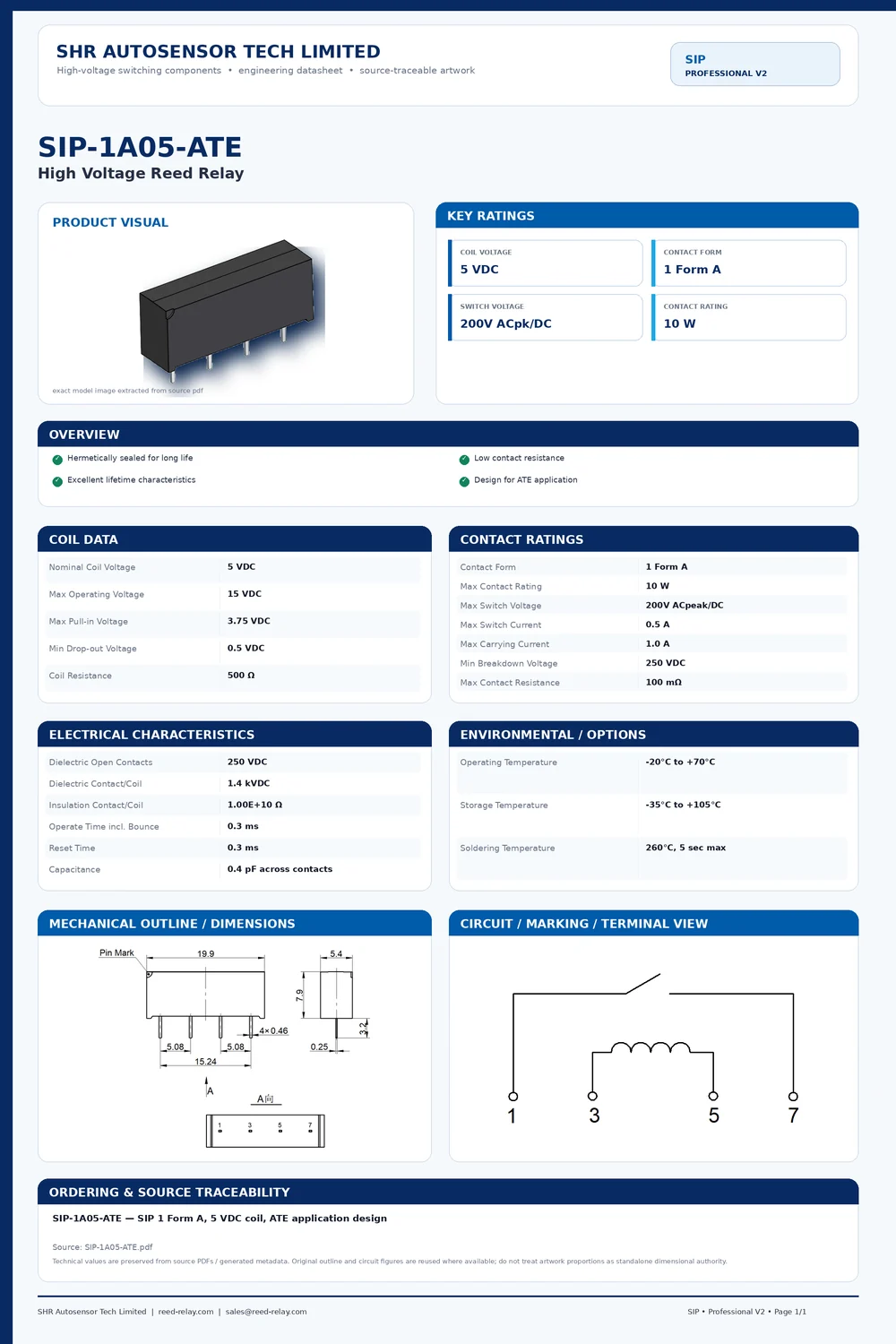

Specifications per the SIP-1A05-ATE datasheet (SHR, Ver. 01, 29th,Aug,2022). Refer to the datasheet for outline dimensions and pin layout.
