DIL-2C24
DIL Package Reed Relay, 24V Coil, 2 Form C

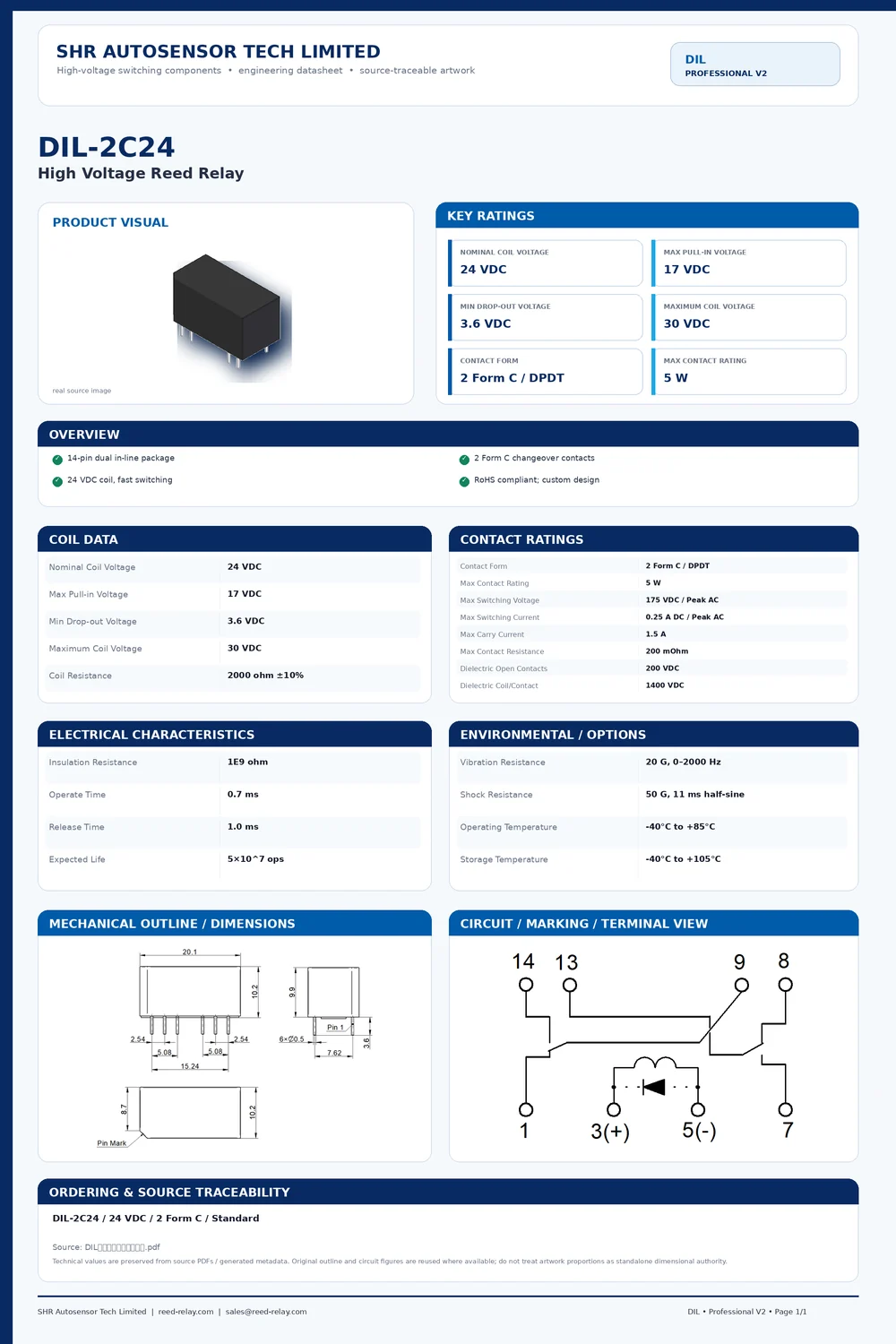

The DIL-2C24 is a reed relay in a 14-pin DIL package for PCB through-hole mounting. It combines a 24VDC coil with 2 Form C contacts rated 5W, offering high input-to-output insulation and fast, long-life sealed contacts for 175V DC / peak AC switching applications.
Key Specifications
| Package | 14-pin DIL, PCB through-hole mounting |
| Contact form | 2 Form C |
| Nominal coil voltage | 24 VDC |
| Pickup voltage | 17 VDC |
| Dropout voltage | 3.6 VDC |
| Operate voltage (max) | 30 VDC |
| Coil resistance | 2000 Ω ±10% at 20°C |
| Max contact rating | 5 W |
| Max switching voltage | 175V DC / peak AC |
| Max switching current | 0.25 A |
| Max carrying current | 1.5 A |
| Max contact resistance | 200 mΩ |
| Dielectric strength (contact to coil) | 1400 VDC (series) |
| Insulation resistance | 109 Ω (series) |
| Operate time | 0.7 ms |
| Release time | 1.0 ms |
| Life expectancy | 5×107 operations at 10VDC, 10mA (series) |
| Operating temperature | -40°C to +85°C (series) |
Key Highlights
- 14-pin DIL package, PCB through-hole mounting
- High insulation between input and output
- Low power consumption, fast switching
- Long-life sealed contacts
- Optional magnetic shield (series)
- RoHS compliant
Applications
- Telecom and communication equipment
- Test and measurement instruments
- Industrial control systems
- Automatic test equipment

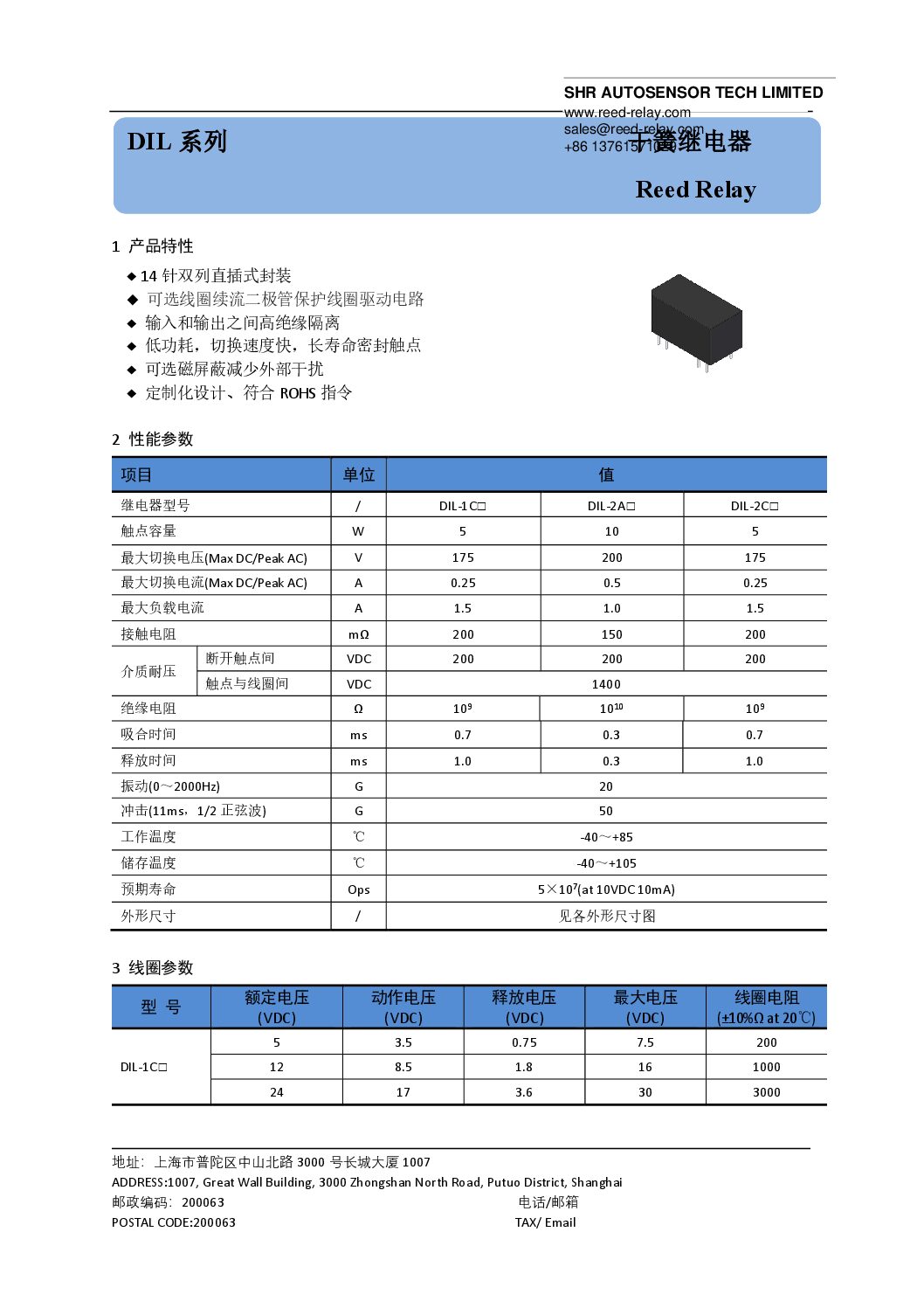

Specifications per the DIL series datasheet (SHR). Refer to the datasheet for outline dimensions and pin layout.
