HVR12-2A03-04 High Voltage Reed Relay

Technical product information for engineering review. Request datasheet, samples, pricing, lead time, or a cross-reference recommendation for this part.

Request Quote Cross Reference

SHR HVR-2A Series Reed Relay

HVR12-2A03-04 High Voltage Reed Relay

$60.00

HVR12-2A03-04 High Voltage Reed Relay for engineering selection. 12 VDC coil, 2 Form A contact, 1 kV ACpeak/DC switching, 100 W rating.

Sample, Datasheet & Engineering Support

  • Model: HVR12-2A03-04
  • Purchase path: Buy sample online
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

Buy Sample

Shipping included · In stock · Ships within 72 hours

SKU: HVR12-2A03-04 Categories: , ,
Model detail

HVR12-2A03-04 product details, applications and specifications

Select this family when the design needs compact high-voltage switching, low leakage, clean signal isolation and repeatable switching in test or instrumentation systems. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

SHR HVR-2A Series Reed Relay
High Voltage Reed Relay principle illustration
1High-voltage input
2Hermetic reed switch
3Insulated relay package
4ATE / medical / HV output

Main specifications for RFQ

Public model
HVR12-2A03-04
Product family
3KV Reed Relay, High Voltage Reed Relays, HVR High Voltage Reed Relays
Contact form
2 Form A
Max operating voltage
16 VDC
Coil resistance
445 ohm
Max pull-in voltage
9 VDC
Min drop-out voltage
1 VDC
Max carrying current
2.5 A
Min breakdown voltage
3K VDC
Max contact resistance
120 mohm
Reset time
0.1ms
Capacitance
across open switch0.4pF
Datasheet
Available as individual PDF for this model

Specifications above are extracted from the live product content for this model. Confirm final ratings, drawings and ordering code through the PDF datasheet or RFQ before production use.

Datasheet-style view

HVR12-2A03-04 technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Voltage classes
4kV / 6kV / 10kV / 15kV / 20kV series

Coil / control data

Coil options
Model-specific coil voltage; confirm by datasheet/RFQ

Contact / output data

Capacitance
across open switch0.4pF
Contact forms
1 Form A and series-dependent options

Mechanical & mounting

Insulation focus
High dielectric strength and low leakage signal switching
Mounting
PCB relay, module and custom high-voltage assembly options

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.
  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For reed relays, keep switching voltage, stand-off/hold-off voltage and dielectric strength separate during selection.
  • Product family context: High Voltage Reed Relay.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Separate switching, stand-off and dielectric ratingsSwitching voltage is the voltage the relay may open or close under specified load. Stand-off/hold-off and dielectric ratings are withstand tests and should not be treated as hot-switching capability.
Dry reed relays are low-bounce, not universally zero-bounceUse model datasheets for operate time and bounce behavior. Reserve bounce-free language for mercury wetted contacts or explicitly specified designs.
Load type controls lifeCapacitive inrush, inductive energy and hot-switching conditions can reduce contact life. Confirm load type, duty cycle and safety margin through datasheet review and RFQ.

Typical applications

  • Semiconductor ATE and wafer probe switching
  • Medical high-voltage diagnostic equipment
  • Cable / insulation / hipot test systems
  • Precision instrumentation and high-voltage multiplexing

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

HVR12-2A03-04 ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering HVR12-2A03-04?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for HVR12-2A03-04?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Semiconductor ATE and wafer probe switching, Medical high-voltage diagnostic equipment, Cable / insulation / hipot test systems, Precision instrumentation and high-voltage multiplexing.

Recommended next steps

HVR12-2A03-04 selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView 3KV Reed Relay familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download HVR12-2A03-04 Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

HVR12-2A03-04

3K VDC High Voltage Reed Relay, 2 Form A, 12 VDC coil

The HVR12-2A03-04 is a high-voltage reed relay from SHR, designed for reliable high-voltage switching with long-life sealed reed contacts. It offers 3K VDC minimum breakdown voltage and is suited to high-voltage test, medical, and industrial applications.

Key Specifications

Contact form 2 Form A
Nominal coil voltage 12 VDC
Max operating voltage 16 VDC
Coil resistance 445 ohm
Max pull-in voltage 9 VDC
Min drop-out voltage 1 VDC
Max contact rating 100 W
Max switching voltage 1KV ACpeak/DC
Max switching current 1.0 A
Max carrying current 2.5 A
Min breakdown voltage 3K VDC
Max contact resistance 120 mohm
Dielectric strength, contact to coil 2K VDC
Operate time (incl. bounce) 1.1ms
Reset time 0.1ms
Capacitance across open switch 0.4pF
Operating temperature -20~+70℃
Storage temperature -35~+105℃
Soldering temperature 5 sec.max 260℃

Key Highlights

  • High Voltage Reed Relay
  • Low Contact Resistance
  • Breakdown up to 3KV
  • Excellent Lifetime Characteristics
  • Custom Design Available

Applications

  • High-voltage test and measurement
  • Medical equipment
  • Industrial controls
  • Power systems

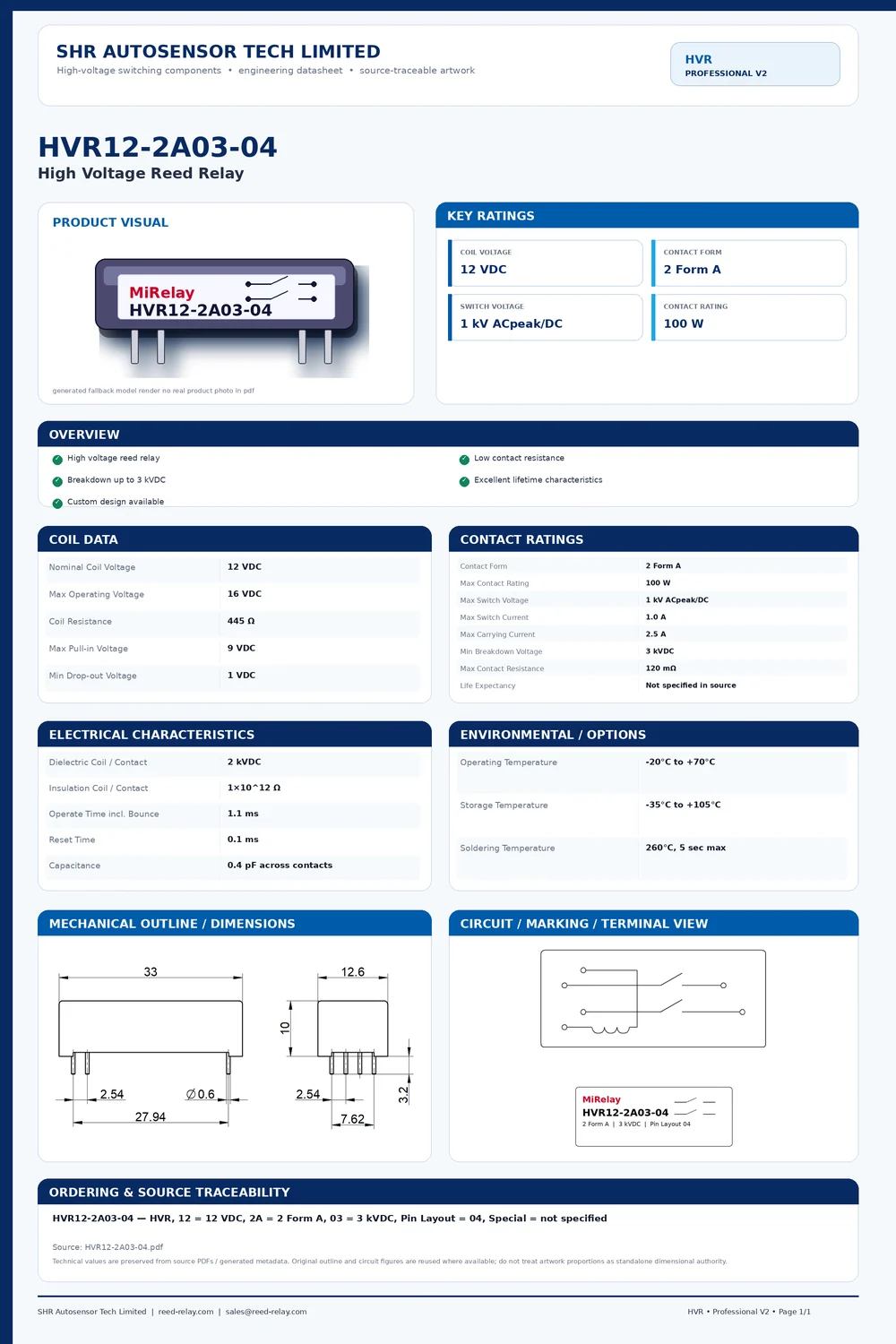

Specifications per the HVR12-2A03-04 datasheet (Ver. 01) (SHR). Refer to the datasheet for outline dimensions and pin layout.
