10KV Standing 7.5KV Switching HV Reed Relay High Voltage Reed Relay HVR12-1A10-156
Original price was: $55.00.$45.00Current price is: $45.00.
Porduct Feature
Breakdown Voltage up to 10KVDC
Coil Voltage 12V
Low Contact Resistance
Excellent lifetime Characteristics
Hermetically sealed for long life
Low Contact resistance
Custom design available
Description
High Voltage Reed Relay HVR12-1A10-156
Tech Specifications
| Description | • Product Attribute |
| • Manufacturer | SHR |
| • Coil Resistance | 200 Ohms |
| • Coil Suppression Diode | Yes |
| • Coil Voltage | 12 VDC |
| • Max Operating voltage | 16 VDC |
| • Max Pull-in voltage | 9 VDC |
| • Min Drop-out voltage | 1 VDC |
| • Contact Material | Tungsten |
| • Maximum Switched Current | 3.0 A |
| • Max Carrying Current | 5.0 A |
| • Max Contact Resistance | 150 mohm |
| • Maximum Switched Power | 50 W |
| • Mounting Style | PCB |
| • Product Type | Reed Relays |
| • Series | DA(UL) |
| • Switching Voltage | 7.5 kVAC |
| • Min Breakdown Voltage | 10k VDC |
| • Dielectric Strength coil/contact | 15 kVDC |
| • Termination Style | Through Hole and HV Cable |
| • Type | HVR Series |
| • Operate Time,incl.Bounce | 3ms |
| • Reset Time | 1.5ms |
| • Capacitance Across Contacts | 0.8 pF |

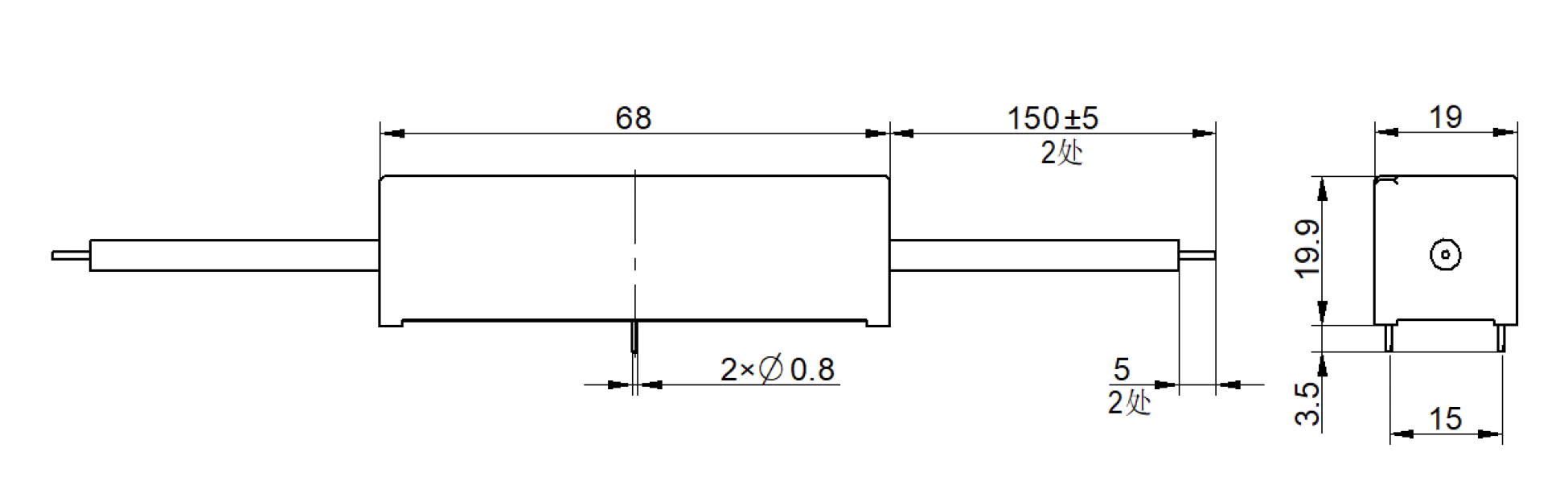

Drawing
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 15 × 15 cm |
