Description
High Voltage Reed Relay HVR24-1A10-06-150
Tech Specifications
| Description | • Product Attribute |
| • Manufacturer | SHR |
| • Coil Resistance | 200 Ohms |
| • Coil Suppression Diode | Yes |
| • Coil Voltage | 24 VDC |
| • Max Operating voltage | 29 VDC |
| • Max Pull-in voltage | 18 VDC |
| • Min Drop-out voltage | 2 VDC |
| • Contact Material | Tungsten |
| • Maximum Switched Current | 3.0 A |
| • Max Carrying Current | 5.0 A |
| • Max Contact Resistance | 150 mohm |
| • Maximum Switched Power | 50 W |
| • Mounting Style | PCB |
| • Product Type | Reed Relays |
| • Series | DA(UL) |
| • Switching Voltage | 7.5 kVAC |
| • Min Breakdown Voltage | 10k VDC |
| • Dielectric Strength coil/contact | 15 kVDC |
| • Termination Style | Through Hole |
| • Type | HVR Series |
| • Operate Time,incl.Bounce | 3ms |
| • Reset Time | 1.5ms |
| • Capacitance Across Contacts | 0.8 pF |

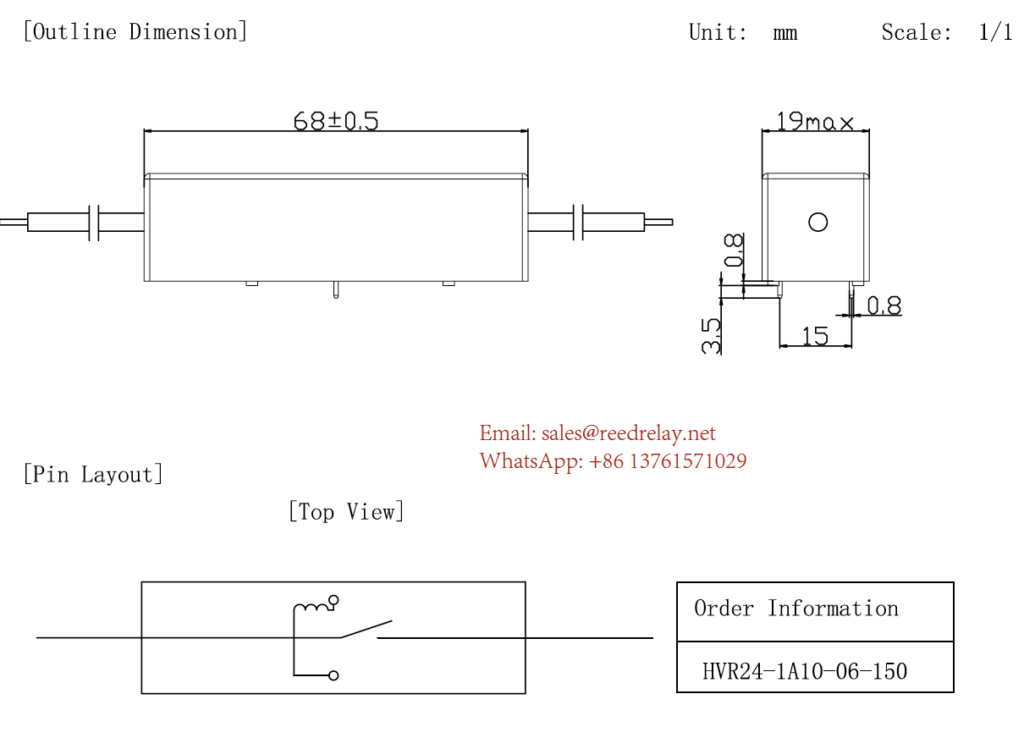

Drawing
