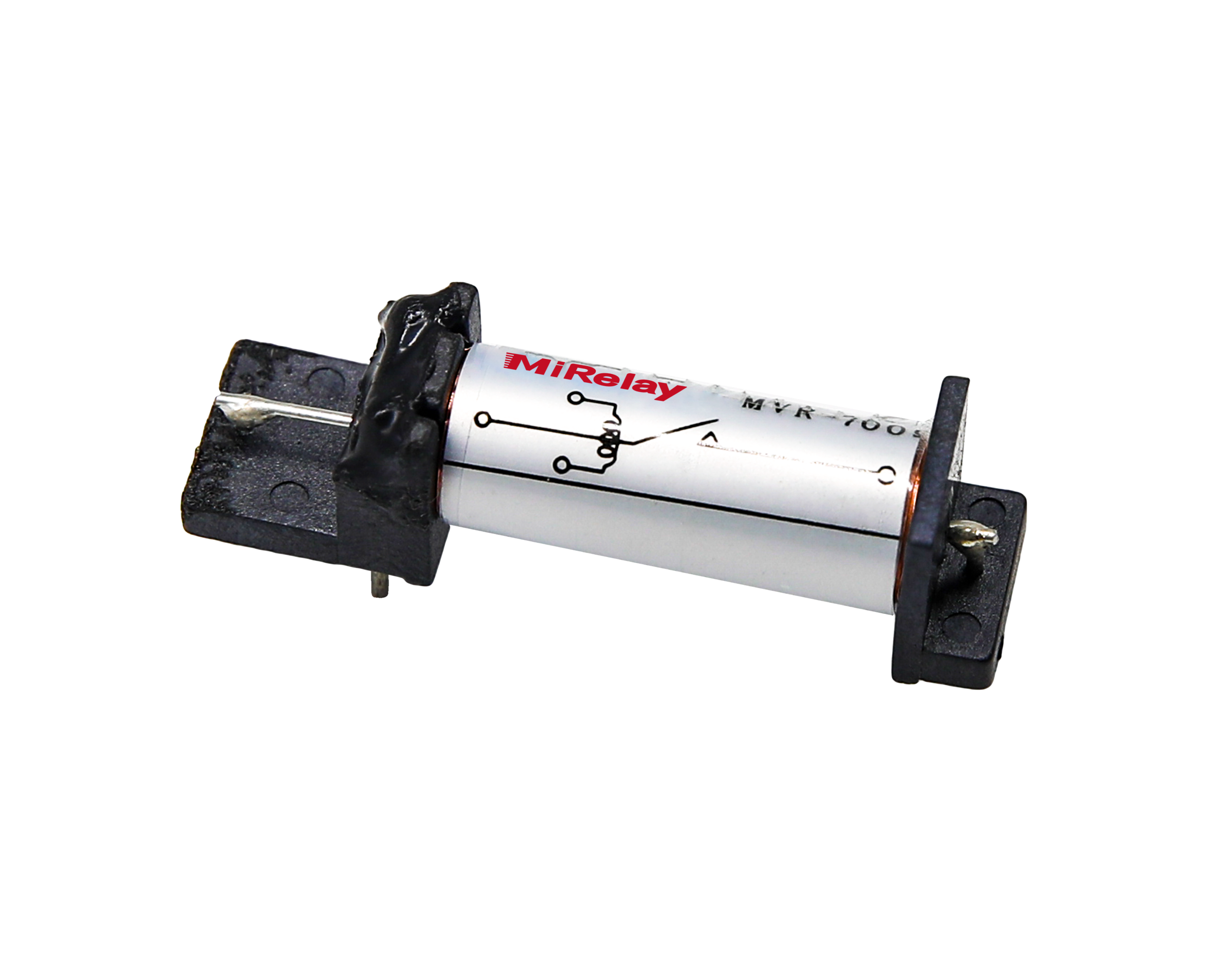

MVR Series Ultra-Miniature Reed Relays
Ultra-Miniature Reed Relays, 1.5KV Breakdown (series)
The MVR series is SHR’s ultra-miniature reed relay family, combining a tiny footprint with 1.5KV breakdown voltage. Fast 0.6ms operate time and 100mΩ contact resistance suit high-density designs that still need real high-voltage capability.
Series Specifications
| Min breakdown voltage (series) | 1.5 KVDC |
| Max contact rating (series) | 10 W |
| Max switching voltage (series) | 500 V (AC peak / DC) |
| Max switching current (series) | 0.5 A |
| Max carry current (series) | 1.0 A |
| Contact resistance (series) | 100 mΩ |
| Dielectric strength, contact to coil (series) | 1.5 KVDC |
| Insulation resistance (series) | 1010 Ω |
| Operate / reset time (series) | 0.6 ms / 0.1 ms |
| Operating temperature (series) | -20°C to +70°C |
Key Highlights
- Ultra-miniature footprint
- 1.5KV breakdown in a tiny package
- Fast 0.6ms operate time
- Low 100mΩ contact resistance
Models in This Series
MVR-700 series and related ultra-miniature types.
Applications
- High-density PCB designs
- Portable instruments
- Telecommunications
- Miniature HV switching
All values above are series-level specifications from the official SHR datasheet (MVR series datasheet); individual model ratings may differ. Please refer to the series datasheet or submit an RFQ to confirm the exact configuration for your application.
