Float Level Sensors
Magnetic Float Level Sensors with Reed Switches (series)
SHR’s float level sensors use hermetically sealed magnetic reed switches inside plastic or stainless steel stems. As liquid level rises or falls, the magnet-equipped float moves along the stem and actuates the reed contacts — delivering millions of dependable on/off cycles for liquid level control.
Series Specifications
| Sensing principle (series) | Magnetic reed switch actuated by float magnet |
| Stem materials (series) | Plastic or stainless steel |
| Mounting options (series) | Vertical mount, horizontal mount, BSP thread, SAE flange, C-ring |
| Life (series) | Millions of on/off cycles with proper use |
Key Highlights
- Hermetically sealed reed switch — no wear from liquid contact
- Reversible NO/NC operation by inverting the float

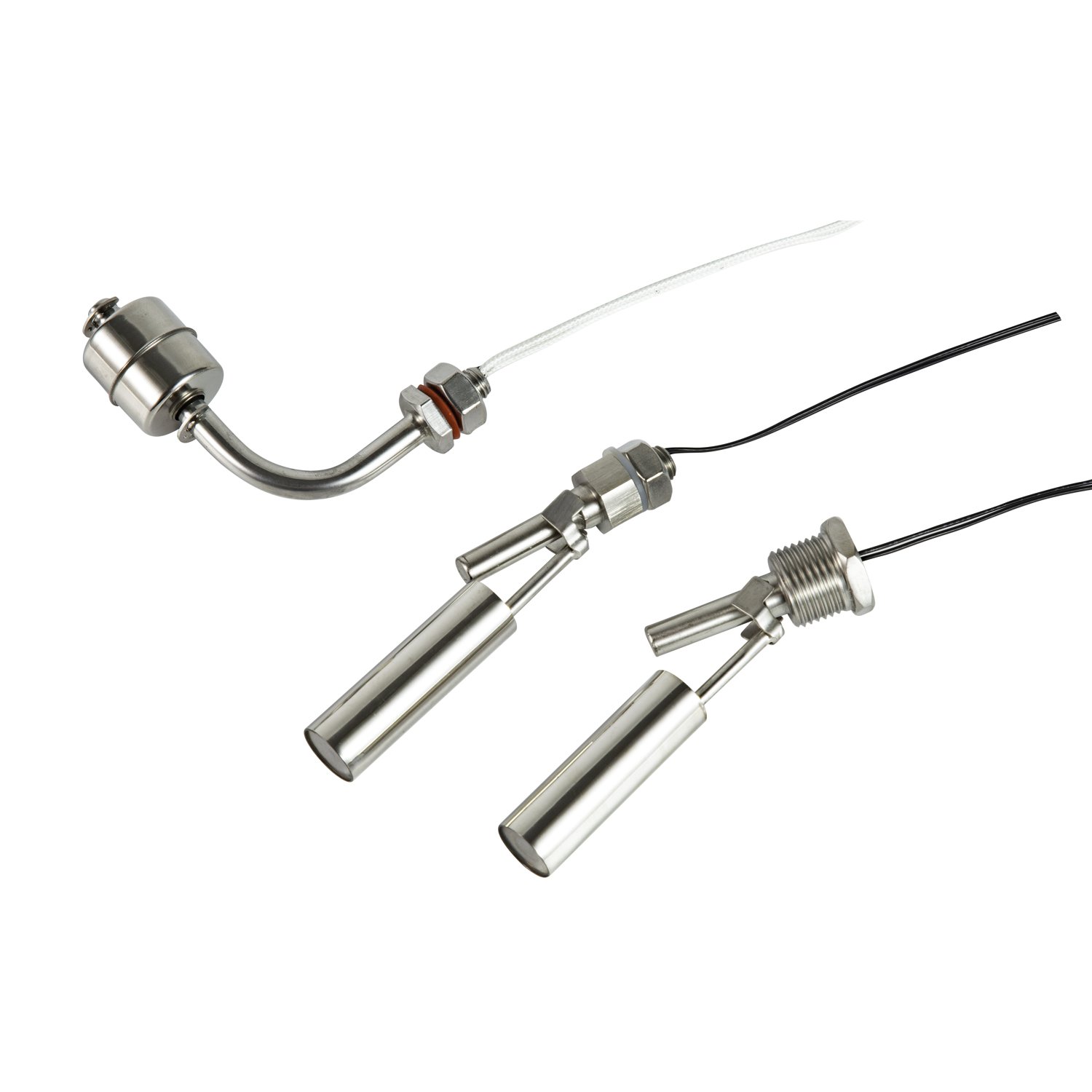

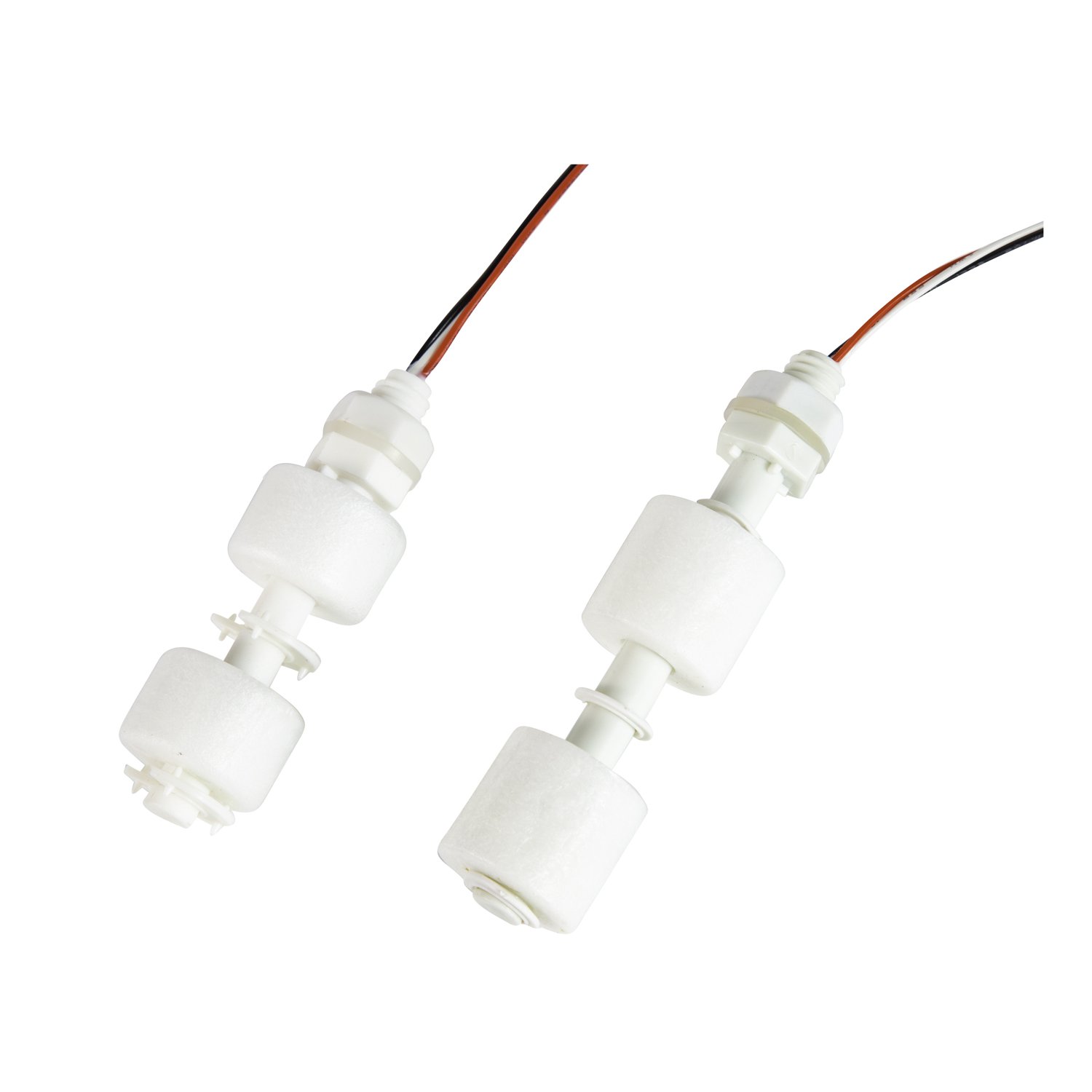

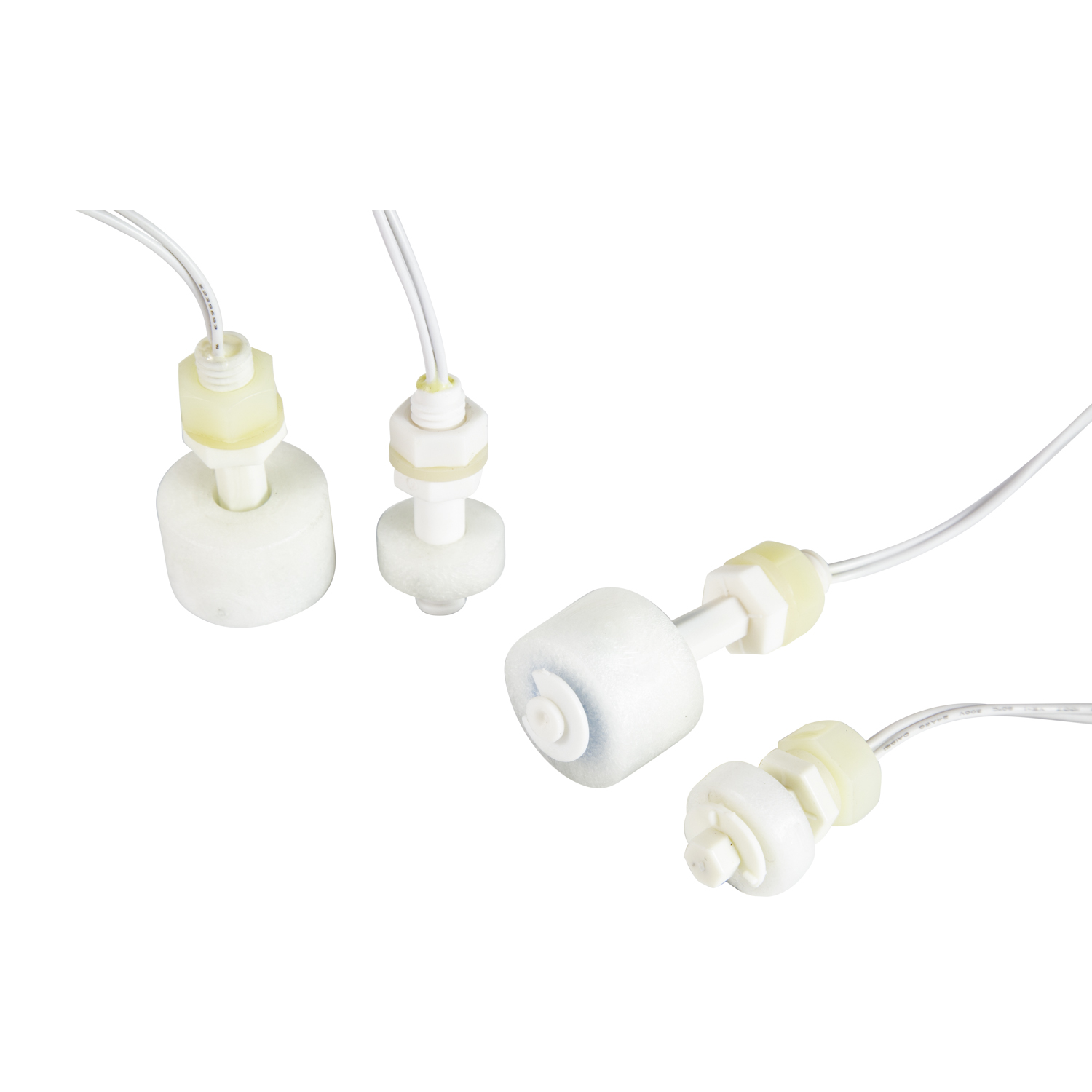

- Plastic or stainless steel stems for different media

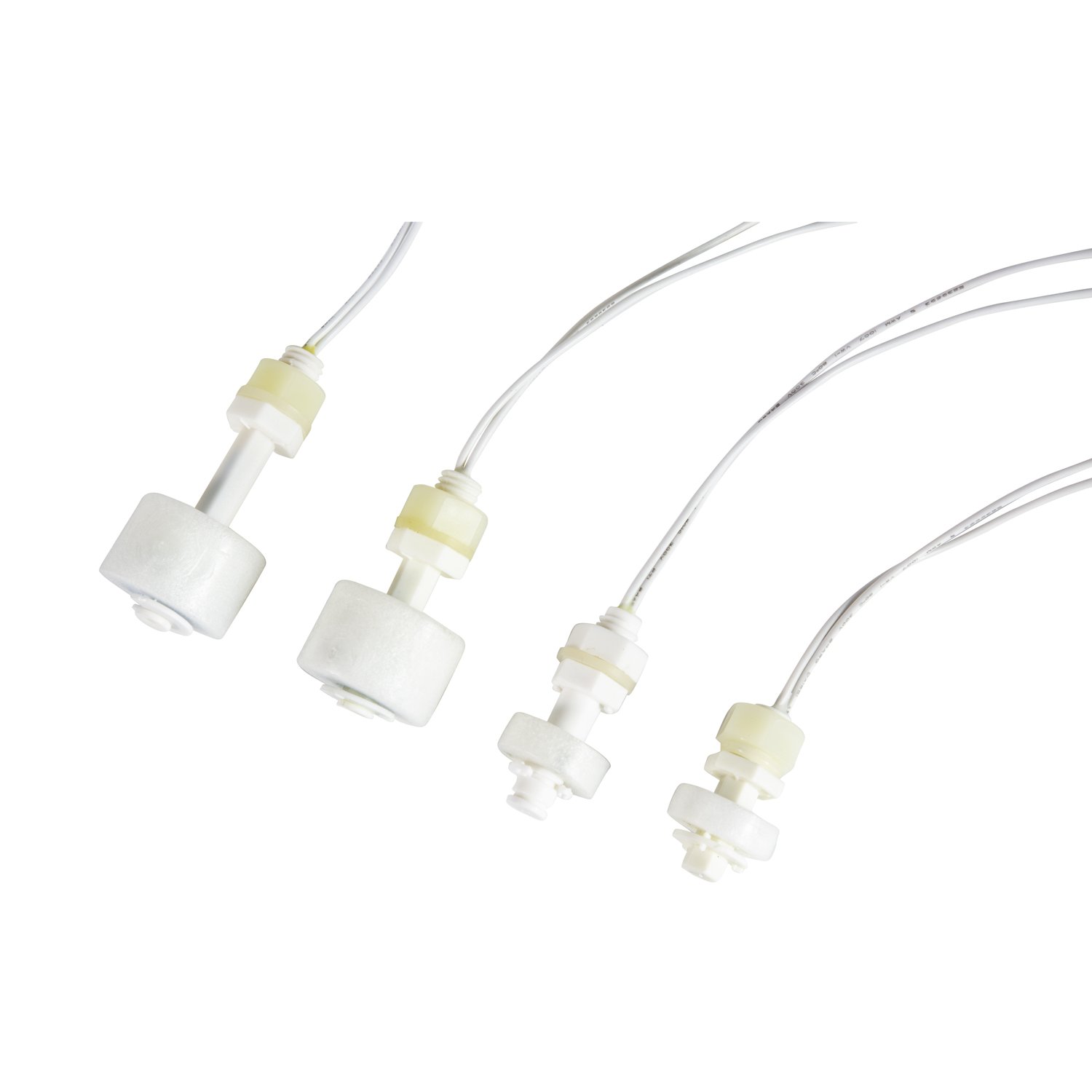

- Multiple mounting options: thread, flange, horizontal, vertical
- Custom-designed level sensors available
Models in This Series
FLS-H, FLS-L, FLS-S series, BSP thread mount, SAE 5-hole flange, C-ring, horizontal and vertical mount types, plus custom designs.
Applications
- Water tanks
- Fuel and AdBlue/DEF tanks
- Industrial process control
- HVAC
- Appliances
All values above are series-level specifications from the official SHR datasheet (Float level sensor technical notes); individual model ratings may differ. Please refer to the series datasheet or submit an RFQ to confirm the exact configuration for your application.
