HVFR Reed Relay

HVFR Series

High Power Open-Frame Reed Relays. Featuring Tungsten contacts for high inrush capability and excellent heat dissipation. Available in Vertical and Flat mounting options.

View Catalog

4kV Breakdown Volts

1000V Switching Volts

100W Max Power

1A – 4A Configurations

📕

HVFR Series Catalog Full Series Specification (PDF)

1 Form A Models (SPST)

Part Number	Coil Voltage	Installation	Datasheet	Action
HVFR05-1A	5 VDC	Vertical	📄 PDF	Quote
HVFR05-1A-T1	5 VDC	Flat	📄 PDF	Quote
HVFR12-1A	12 VDC	Vertical	📄 PDF	Quote
HVFR24-1A	24 VDC	Vertical	📄 PDF	Quote

2 Form A Models (DPST)

Part Number	Coil Voltage	Installation	Datasheet	Action
HVFR05-2A	5 VDC	Vertical	📄 PDF	Quote
HVFR05-2A-01	5 VDC	Flat	📄 PDF	Quote
HVFR12-2A	12 VDC	Vertical	📄 PDF	Quote
HVFR12-2A-01	12 VDC	Flat	📄 PDF	Quote
HVFR24-2A	24 VDC	Vertical	📄 PDF	Quote
HVFR24-2A-01	24 VDC	Flat	📄 PDF	Quote

3 Form A Models (3PST)

Part Number	Coil Voltage	Installation	Datasheet	Action
HVFR12-3A	12 VDC	Vertical	📄 PDF	Quote
HVFR12-3A-01	12 VDC	Flat	📄 PDF	Quote
HVFR24-3A-01	24 VDC	Flat	📄 PDF	Quote

4 Form A Models (4PST)

Part Number	Coil Voltage	Installation	Datasheet	Action
HVFR12-4A	12 VDC	Vertical	📄 PDF	Quote
HVFR12-4A-01	12 VDC	Flat	📄 PDF	Quote
HVFR24-4A	24 VDC	Vertical	📄 PDF	Quote
HVFR24-4A-01	24 VDC	Flat	📄 PDF	Quote

Design Note

Vertical Installation (No Suffix): Ideal for high-density packing on the PCB where height is not restricted.
Flat Installation (-01): Ideal for card cages or applications with strict height restrictions.

Engineering selection guide

High Voltage Reed Relay selection details

Choose high-voltage reed relays by breakdown voltage, switching/carry current, contact form, coil voltage, insulation resistance, mounting style and high-voltage creepage constraints.

Download selection catalog PDF Download family datasheet PDF Request engineering RFQ

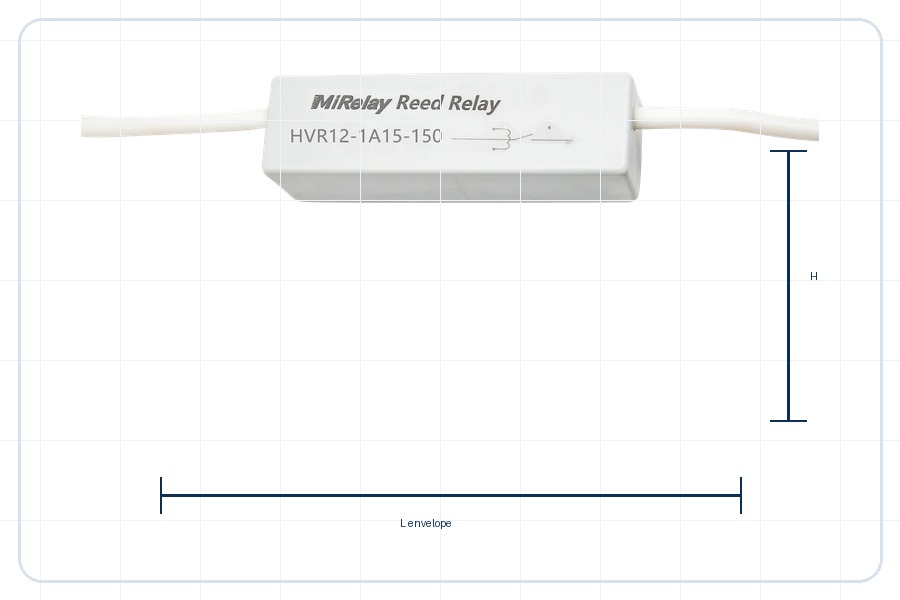

High Voltage Reed Relay selection details product reference image — Representative product image; exact package and marking vary by model.

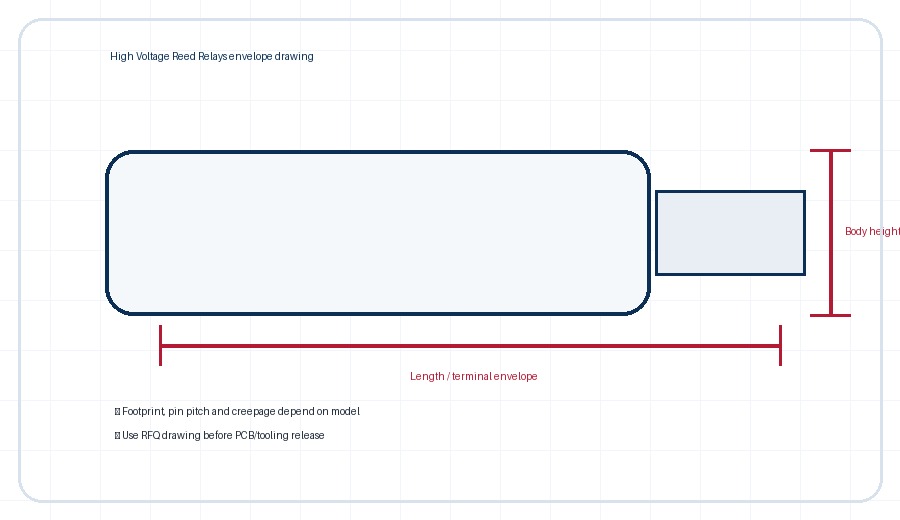

High Voltage Reed Relay selection details dimension envelope illustration — Dimension envelope illustration; use the final drawing before PCB/tooling release.

Selection checklist

Breakdown / isolation voltage margin
Switching voltage, carry current and contact rating
Contact form and channel count
Coil voltage and suppression option
PCB/lead spacing, shield pin and creepage distance
Application: hipot, cable test, medical HV, insulation monitoring

Representative models

HVR12-1A10-04HVR24-2A06HVR12-1A15-150HVFR12-4ASIP-HV1A05DHRM24-2A10

Use these models as starting points when comparing voltage, current, contact form, package and application duty.

Model code example: HVR12-1A10-04

HVR: High Voltage Reed Relay family
12: Coil voltage: 05 / 12 / 24 VDC
1A: Contact form: 1 Form A normally open
10: Voltage class: 10 kV family
04: Mounting / lead / package option
