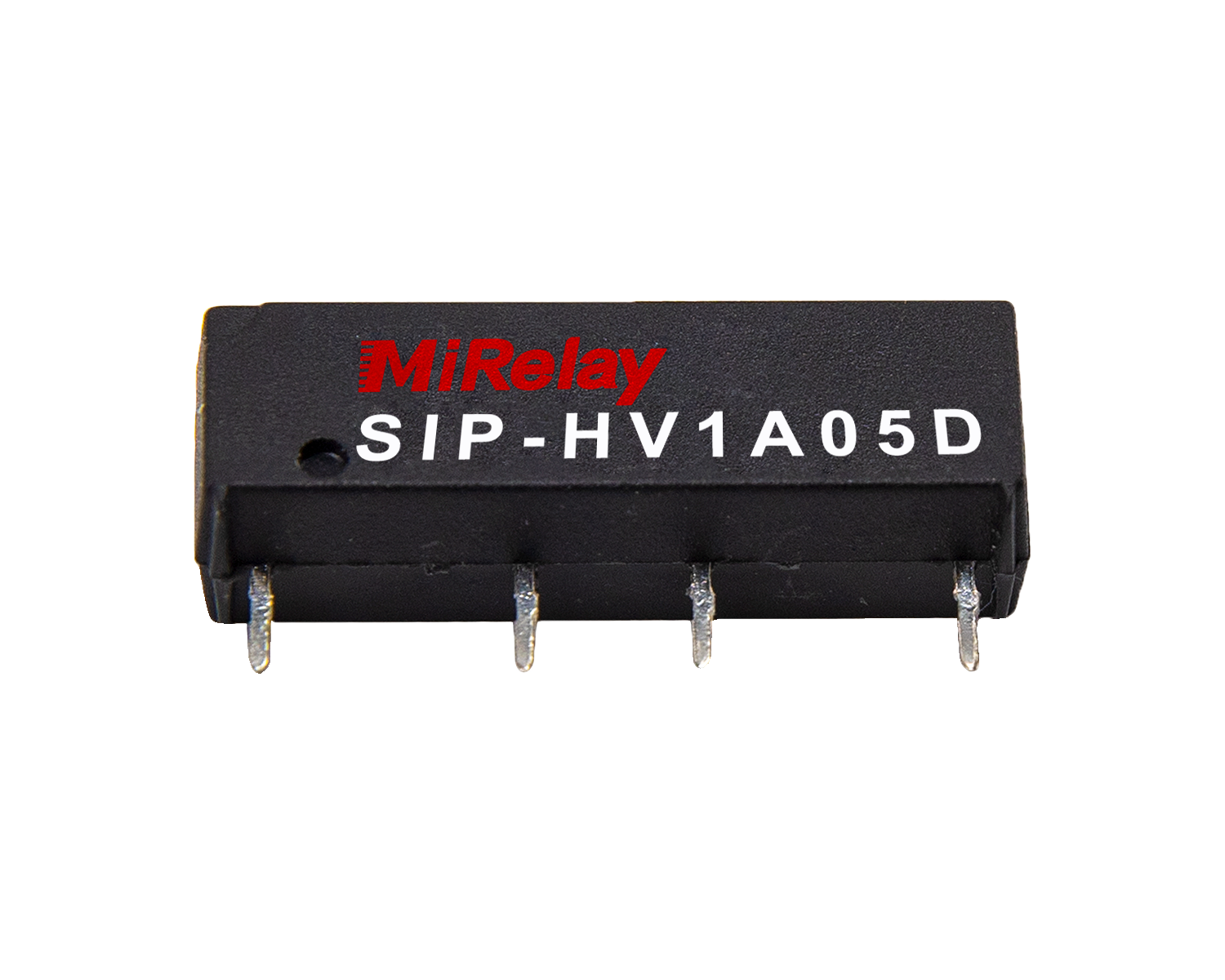

SIP-HV Series High Voltage Reed Relays
SIP Package High Voltage Reed Relay, 4KV Breakdown (series)
The SIP-HV series packs 4KV breakdown voltage into an industry-standard SIP package. With 100W contact rating and 1.5KV switching voltage, it brings true high-voltage capability to dense PCB layouts without special footprints.
Series Specifications
| Min breakdown voltage (series) | 4 KVDC |
| Max contact rating (series) | 100 W |
| Max switching voltage (series) | 1.5 KVDC |
| Max switching current (series) | 1.0 A |
| Max carry current (series) | 2.5 A |
| Contact resistance (series) | 150 mΩ max |
| Dielectric strength, contact to coil (series) | 4 KVDC |
| Insulation resistance (series) | 1012 Ω |
| Operate / reset time (series) | 1.0 ms / 0.25 ms |
| Life expectancy (series) | 5×108 ops (at 5VDC-10mA) |
| Operating temperature (series) | -40°C to +85°C |
Key Highlights
- 4KV breakdown in a standard SIP footprint
- 100W rating with 1.5KV switching voltage
- Long electrical life: 5×108 operations
- Fully sealed, washable construction
- Drop-in HV upgrade for SIP layouts
Models in This Series
SIP-HV1A05/12/24 series, Form 1A, with standard and low-profile options.
Applications
- High-voltage PCB switching
- Test & measurement
- Medical HV circuits
- Power supplies
All values above are series-level specifications from the official SHR datasheet (SIP-HV series datasheet); individual model ratings may differ. Please refer to the series datasheet or submit an RFQ to confirm the exact configuration for your application.
