Standard and Miniature Reed Relay Family Overview (series)

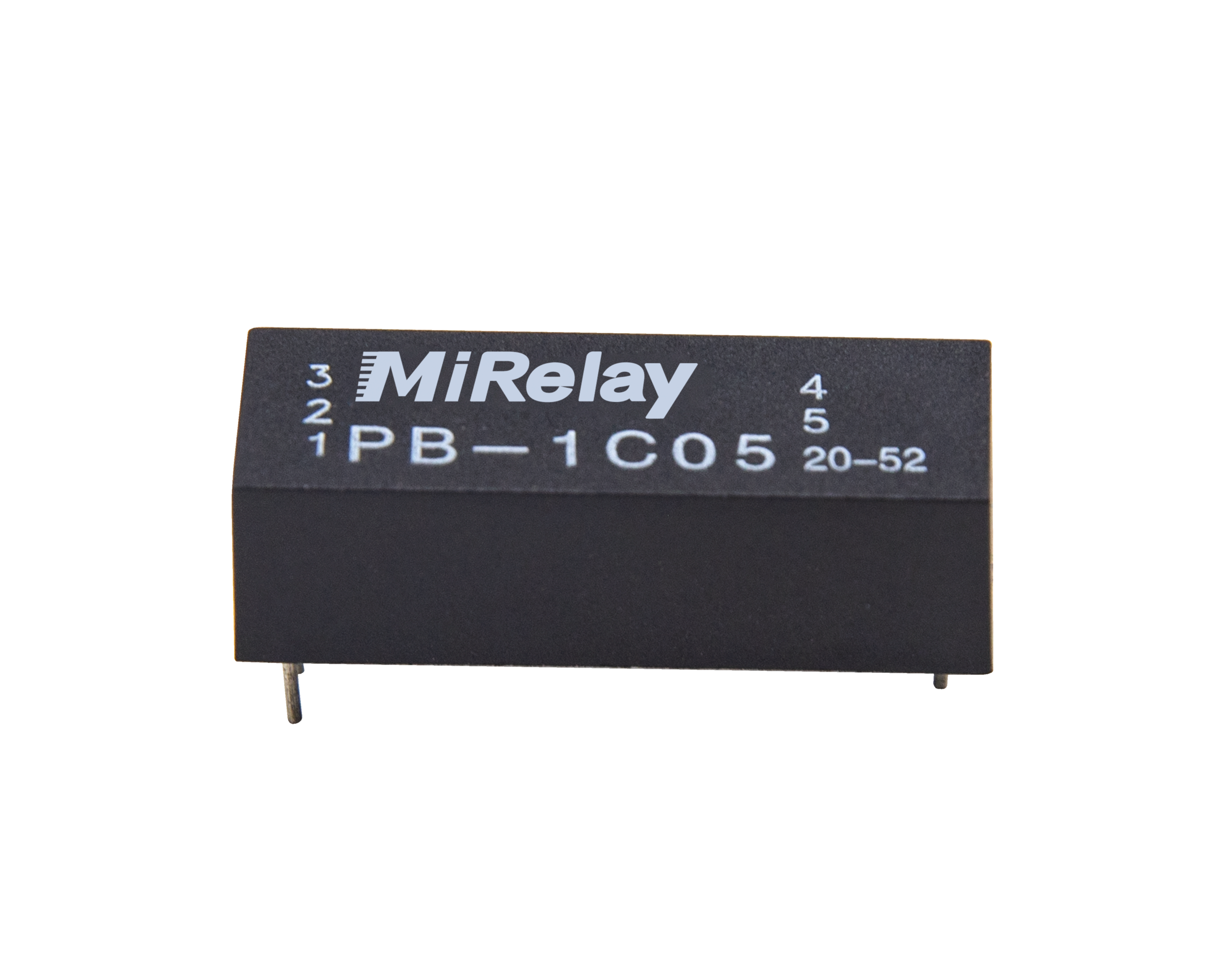

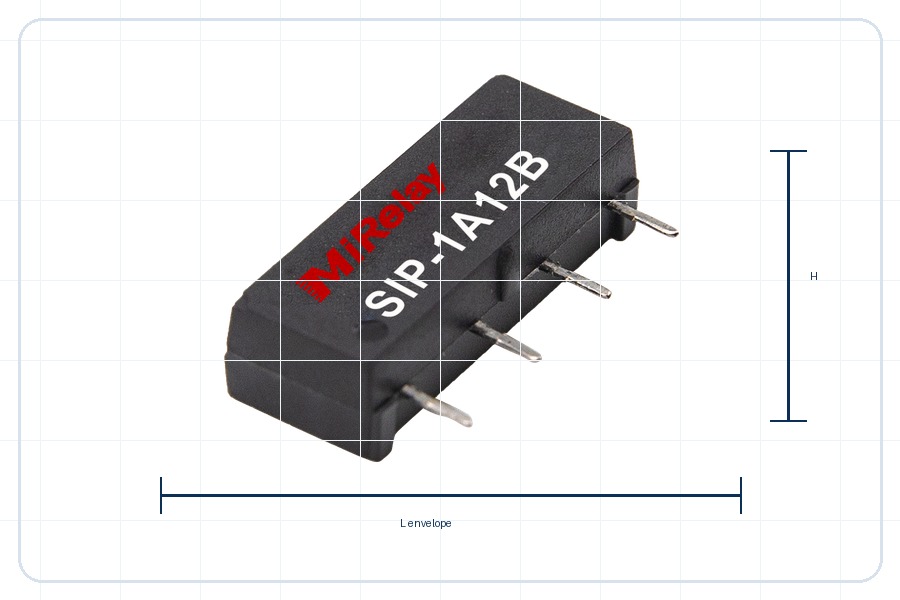

SHR’s standard and miniature reed relay portfolio covers every common PCB package: SIP (standard and mini-HV P types), SIP-HV (4KV in SIP), DIL 14-pin DIP, SMD surface-mount (up to +155°C), MSIP/VSIP molded miniature SIP, PB molded, and MVR ultra-miniature. Series-level ranges below.
| Breakdown range (series) | 200 V – 4 KV across families |
| Contact rating range (series) | 5 W – 100 W across families |
| Packages (series) | SIP, DIP-14, SMD, molded SIP, ultra-miniature |
| Compliance | RoHS |
SIP, SIP-HV, DIL, SMD, MSIP, VSIP, PB, MVR series.
All values above are series-level specifications from the official SHR datasheet; individual model ratings may differ. Please refer to the series datasheet or submit an RFQ to confirm the exact configuration for your application.
Specify miniature reed relays by package density, contact form, coil voltage, signal level, insulation target, shielding/diode options and PCB land pattern.
Use these models as starting points when comparing voltage, current, contact form, package and application duty.
