High Voltage Reed Relay HVR24-1A10-04

Original price was: $55.00.Current price is: $45.00.

Porduct Feature
Breakdown Voltage up to 10KVDC
Coil Voltage 24V
Low Contact Resistance
Excellent lifetime Characteristics
Hermetically sealed for long life
Low Contact resistance
Custom design available

Request Technical Quote

SKU: 1118808096103 Category: 10KV Reed Relay Tag: 10kv reed relay

Description

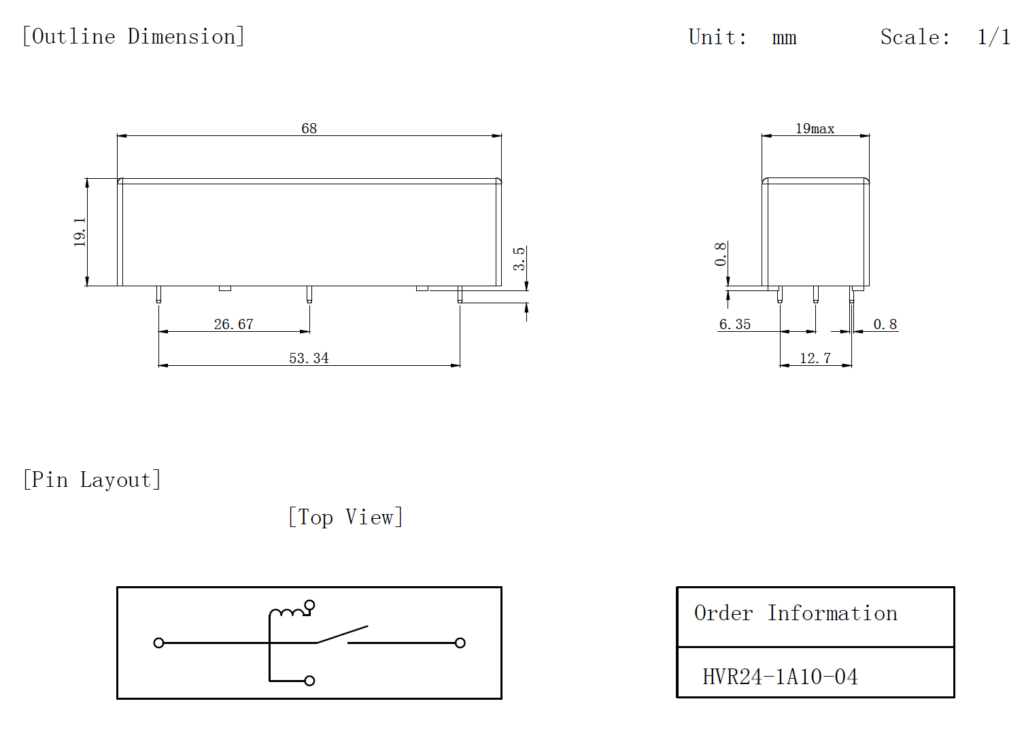

High Voltage Reed Relay HVR24-1A10-04

Tech Specifications

Description	• Product Attribute
• Manufacturer	SHR
• Coil Resistance	200 Ohms
• Coil Suppression Diode	Yes
• Coil Voltage	24 VDC
• Max Operating voltage	29 VDC
• Max Pull-in voltage	18 VDC
• Min Drop-out voltage	2 VDC
• Contact Material	Tungsten
• Maximum Switched Current	3.0 A
• Max Carrying Current	5.0 A
• Max Contact Resistance	150 mohm
• Maximum Switched Power	50 W
• Mounting Style	PCB
• Product Type	Reed Relays
• Series	DA(UL)
• Switching Voltage	7.5 kVAC
• Min Breakdown Voltage	10k VDC
• Dielectric Strength coil/contact	15 kVDC
• Termination Style	Through Hole
• Type	HVR Series
• Operate Time,incl.Bounce	3ms
• Reset Time	1.5ms
• Capacitance Across Contacts	0.8 pF
