Mercury Wetted Reed Relays: Why Zero Contact Bounce Matters for ATE Systems
In automated test equipment (ATE) and semiconductor validation, the difference between a passing and failing measurement often comes down to microseconds — sometimes nanoseconds. Engineers designing these systems quickly learn that the relay sitting inside their signal path isn’t just a switch. It’s a component whose switching behavior directly affects measurement integrity. And when it comes to eliminating contact bounce, nothing matches the performance of a mercury wetted reed relay.
This post examines why contact bounce is such a serious problem for test engineers, how mercury wetted contacts eliminate it mechanically, and when choosing a zero bounce relay like those in MiRelay’s HGFR, HGMR, and HGSR series is the right engineering decision — not just the expensive one.
What Is Contact Bounce?
Every mechanical switch exhibits contact bounce. When two metal contacts slam together under the force of a magnetic or spring mechanism, they don’t settle cleanly on the first touch. Instead, they ricochet — bouncing open and closed several times before reaching a stable closed state. This phenomenon is called contact bounce.
In a standard dry reed relay, contact bounce typically lasts between 10 µs and 50 µs, with some units bouncing for up to 100 µs. During that interval, the relay’s output is an unstable square wave rather than a clean transition. The contact resistance oscillates between high-impedance (open) and the relay’s rated contact resistance (closed), creating a train of transient pulses.
The Physics Behind the Bounce
A dry reed relay uses two ferromagnetic reeds sealed in a glass envelope. When the coil energizes, the reeds magnetize and attract, closing the circuit. On closure, kinetic energy converts to elastic deformation at the contact interface, and the reeds rebound. This cycle repeats with diminishing amplitude until the reeds settle. The duration and severity depend on:
- Closing velocity — faster actuation means higher bounce energy
- Contact mass and stiffness — thinner reeds bounce more
- Contact gap — larger gaps produce harder closures
- Environmental vibration — external vibration amplifies bounce
Why Contact Bounce Is Catastrophic for ATE and Semiconductor Test
In consumer electronics or industrial control, a few microseconds of bounce is tolerable. The load doesn’t care. But in ATE, the load is the measurement itself — and measurement systems care deeply.
False Triggering on Digital Lines
When a relay switches a digital signal path in a semiconductor test system, the test equipment interprets each bounce pulse as a legitimate logic transition. A single relay closure can produce multiple false edges, triggering incorrect event counts or corrupting handshake protocols. For IC validation, this translates directly into yield loss or false failures.
Transient Noise in Analog Measurements
Analog measurement paths — think of a relay switching a DUT into a precision source-measure unit (SMU) — are even more sensitive. The voltage transients generated during bounce couple into high-impedance measurement nodes. On a 1 MΩ input, even nanosecond-scale transients from bounce can settle over millisecond timescales, corrupting the measurement and requiring longer integration windows to average out the noise.
Data Acquisition Corruption
Multi-channel data acquisition systems that scan through relay matrices inherit bounce artifacts into their sampled data. If the scan rate approaches the bounce period, the system can capture bounce events as valid samples, embedding noise directly into the dataset. Engineers who’ve chased “phantom noise” in DAQ systems have often found bouncing reed relays as the root cause.
Timing-Sensitive Protocols
JTAG, SPI, I2C, and other serial protocols rely on precise edge timing. Contact bounce corrupts clock edges, violates setup/hold times, and causes communication failures that are notoriously difficult to diagnose — because the fault is in the test fixture, not the device under test.
How Mercury Wetted Contacts Eliminate Bounce
The genius of a mercury wetted reed relay is deceptively simple: coat the contact surfaces with a thin film of mercury. When the reeds close, the mercury forms a liquid bridge between the contacts rather than allowing metal-to-metal impact. The result is a switch that transitions from open to closed with zero contact bounce.
The Mercury Bridge Mechanism
In a mercury wetted reed relay, a small quantity of mercury is sealed inside the reed switch envelope. The mercury pools at the contact tips due to capillary forces. When the contacts close, they don’t impact — they converge through the mercury film. The liquid mercury provides a conductive bridge that forms gradually as the contact gap narrows. There’s no elastic rebound, no ricochet, no transient. The transition is smooth and bounce-free.
This isn’t a partial improvement. Mercury wetted reed relays achieve zero bounce — not reduced bounce, not sub-microsecond bounce, but truly zero bounce, verified by oscilloscope measurements showing clean, monotonic transitions.
Contact Resistance Stability
Mercury wetting also provides exceptionally stable contact resistance. The liquid mercury layer eliminates the micro-arcing and oxide formation that plague dry contacts over their lifecycle. Mercury wetted reed relays maintain contact resistance stability well below 50 mΩ over billions of operations, compared to dry reed relays whose contact resistance can drift upward with use.
Hermetic Sealing Benefits
Like all reed relays, mercury wetted versions use hermetically sealed glass envelopes. This protects the contacts from atmospheric contamination — no oxidation, no particulate ingress, no humidity effects. Combined with mercury wetting, this produces a relay whose switching characteristics remain remarkably consistent across its full rated lifecycle.
Mercury Wetted vs. Dry Reed Relay: A Comparison
| Parameter | Dry Reed Relay | Mercury Wetted Reed Relay |
|---|---|---|
| Contact Bounce | 10–100 µs typical | Zero |
| Contact Resistance | 50–200 mΩ (drifts with use) | <50 mΩ (stable over lifecycle) |
| Lifecycle | 10⁸–10⁹ operations | 10⁸–10⁹ operations |
| Operating Position | Any orientation | Sensitive to gravity; limited tilt |
| Switching Speed | 0.5–2 ms | 0.5–2 ms |
| Cost | Lower | Higher |
| Temperature Range | −55°C to +125°C | −20°C to +70°C (mercury freezing point) |
| Best For | General-purpose switching | ATE, precision measurement, timing-critical |
MiRelay’s Mercury Wetted Reed Relay Series
MiRelay offers three mercury wetted reed relay series designed for different application profiles within the ATE and precision measurement space.
HGFR Series
The HGFR series is MiRelay’s workhorse mercury wetted relay, designed for high-channel-count ATE systems where board space is at a premium. The HGFR features a compact form factor with standard DIP pinout, making it compatible with dense PCB layouts typical of semiconductor test sockets and relay matrices. Rated for up to 200V switching, the HGFR handles most analog and digital signal routing tasks in ATE environments.

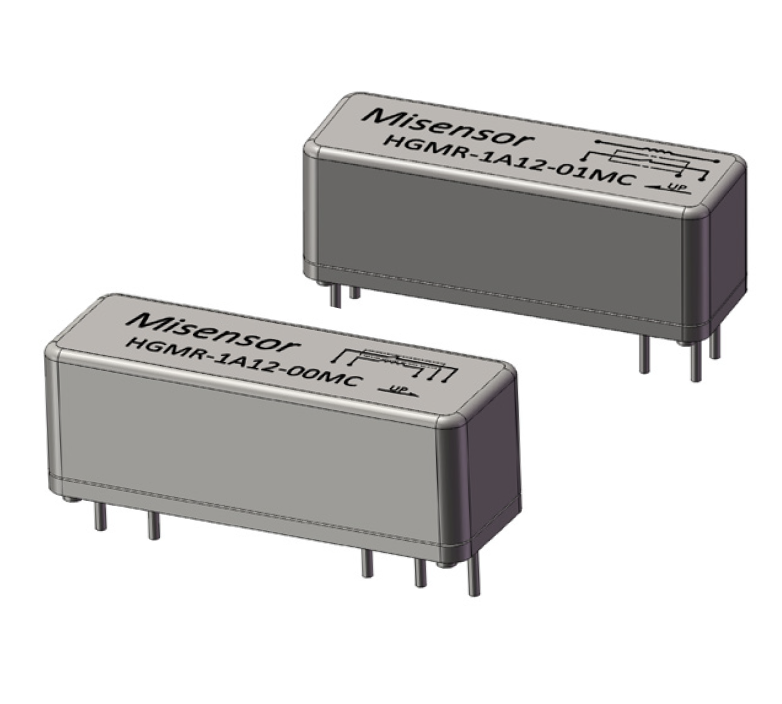

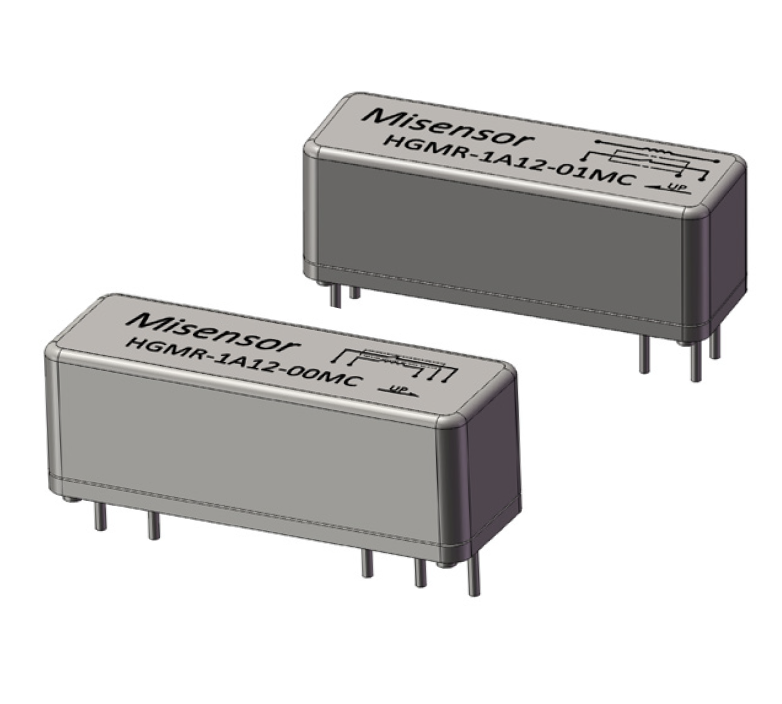

HGMR Series
The HGMR series targets medium-power switching applications where mercury wetted reliability is required but with higher current handling — typically 0.5A to 1A loads. The HGMR is commonly found in power supply test fixtures and mixed-signal test systems where clean switching of both signal and power rails is essential.
HGSR Series
The HGSR series is optimized for high-speed signal routing. With minimized parasitic inductance and capacitance, the HGSR excels in RF-adjacent switching and high-bandwidth analog path selection. If your ATE system routes signals above 100 MHz through relay matrices, the HGSR’s low insertion loss makes it the right choice.
When to Use Mercury Wetted vs. Dry Reed Relays
Not every application needs a mercury wetted relay. Making the right choice saves cost and avoids unnecessary design constraints.
Choose Mercury Wetted When:
- Precision measurement integrity is critical — SMU, DMM, or DAQ switching where bounce transients corrupt measurements
- Digital timing must be clean — JTAG, SPI, or custom protocol routing in test fixtures
- Contact resistance must be stable — low-level signal switching where resistance drift changes readings
- The relay closes for measurement, not just power — if the measurement happens at closure time, bounce directly impacts the result
Choose Dry Reed When:
- Bounce is irrelevant — power switching, relay latching, or applications where the signal settles long before measurement
- Extreme temperatures are involved — mercury freezes below −38°C, limiting cold-environment use
- Orientation constraints are unacceptable — mercury wetted relays require controlled mounting orientation
- Budget is primary constraint — dry reed relays cost significantly less per channel
Lifecycle Considerations
Mercury wetted reed relays share the same mechanical lifecycle ratings as their dry counterparts — typically 10⁸ to 10⁹ operations. However, the mercury film introduces additional considerations:
Mercury Migration
Over extended cycling, mercury can migrate along the reed surfaces, potentially thinning at the contact interface. MiRelay addresses this through optimized mercury charge quantities and contact geometries that maintain wetting throughout the rated lifecycle. Proper derating — operating below maximum rated current and voltage — extends effective life well beyond datasheet minimums.
Position Sensitivity
Mercury’s liquid nature means gravity affects its distribution within the reed envelope. MiRelay’s mercury wetted relays are rated for operation within specific tilt angles — typically ±15° to ±30° from the design axis. Exceeding these angles can cause mercury to pool away from the contact tips, degrading switching performance. For rack-mounted ATE systems with controlled orientation, this is rarely a concern. For portable or aircraft-mounted systems, consult the datasheet for your specific orientation envelope.
Understanding Failure Modes
For a deeper dive into common reed relay failure mechanisms and prevention strategies, see our article on common reed relay failures and how to prevent them. The article covers contact sticking, coil degradation, and glass envelope fracture — issues relevant to both mercury wetted and dry reed designs.
Cost Justification: The True Price of Bounce
Mercury wetted reed relays cost 2–5× more than equivalent dry reed relays. The question isn’t whether they cost more — they do — but whether the application can afford not using them.
Yield Impact
In semiconductor test, false failures caused by bounce-induced measurement errors directly reduce yield. A single false fail on a wafer probe station costs more than the relay premium — and if the false fail is intermittent and hard to diagnose, the engineering time spent chasing it can dwarf the relay cost many times over.
Test Time Reduction
Clean switching means measurements can be taken immediately after relay closure. Without bounce, there’s no need for software debounce delays, no need for extended settling times, and no need for averaging multiple samples to suppress bounce artifacts. In high-throughput ATE environments where test time is measured in milliseconds per device, this reduction compounds into significant capacity gains.
Reliability Reputation
For test equipment OEMs, the quality of the test fixture reflects on the instrument itself. An oscilloscope manufacturer whose relay matrix produces bounce artifacts in its own self-test isn’t inspiring confidence. Mercury wetted relays are table stakes for instrumentation that needs to be trusted.
Designing with Mercury Wetted Reed Relays
If you’ve decided that mercury wetted relays are right for your application, a few design considerations will help you get the most from them:
Mounting Orientation
Always mount mercury wetted relays in their specified orientation. Most are designed for horizontal mounting with the contact axis parallel to the ground. Deviating from this orientation risks mercury migration and degraded performance. Mark the orientation requirement clearly on your PCB assembly documentation.
Drive Circuit Design
Use current-limited drive circuits that avoid over-driving the coil. Excessive coil current heats the mercury and can accelerate migration. A series resistor tuned to achieve the rated coil voltage at your supply voltage ensures optimal actuation without thermal stress.
Thermal Management
Keep ambient temperature within the relay’s rated range. Mercury wetted relays have tighter thermal limits than dry reed versions. In dense ATE relay matrices, ensure adequate ventilation — adjacent relays can heat each other, and a temperature rise of just 20°C above spec can measurably affect contact resistance and lifecycle.
Getting Started
Selecting the right mercury wetted reed relay depends on your switching requirements — voltage, current, signal bandwidth, board space, and orientation constraints. MiRelay’s applications engineering team has decades of experience matching relay specifications to ATE system requirements.
Whether you’re designing a new semiconductor test socket, upgrading a legacy relay matrix, or troubleshooting bounce-related measurement issues, we can help you specify the right relay and drive circuit for your application.
Contact our engineering team to discuss your mercury wetted reed relay requirements, request samples, or get application-specific design guidance.
