Fuel & Liquid Level Sensors
Comprehensive monitoring solutions for Trucks, Buses, Marine, and Generators. Featuring Reed Switch and Capacitive technologies.
View Product Catalog

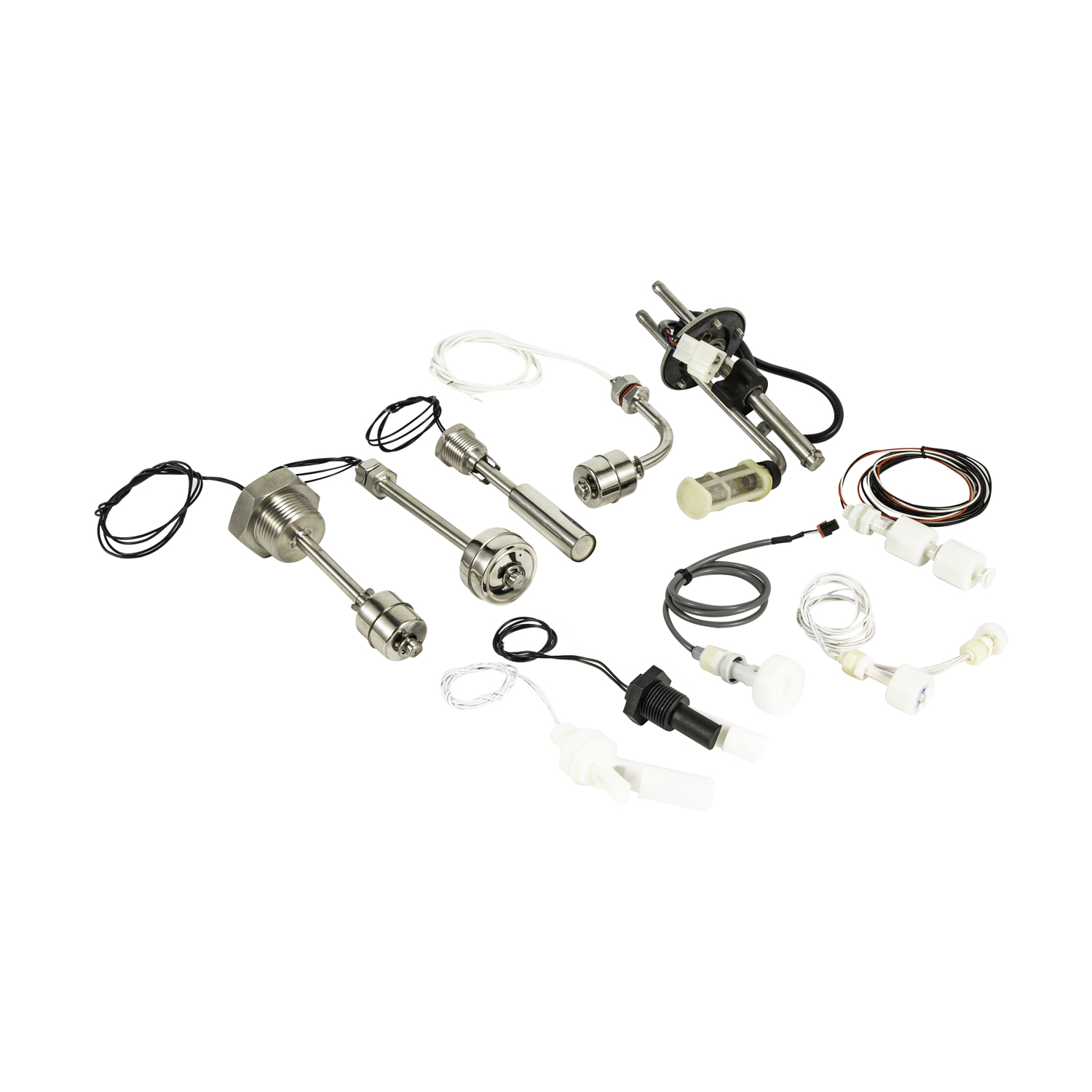

Fuel Level Sensors (FLS Series)
Reliable reed switch technology inside a sealed tube. The magnetic float triggers switches to output a stable resistance, voltage, or current signal. IP67 Rated.

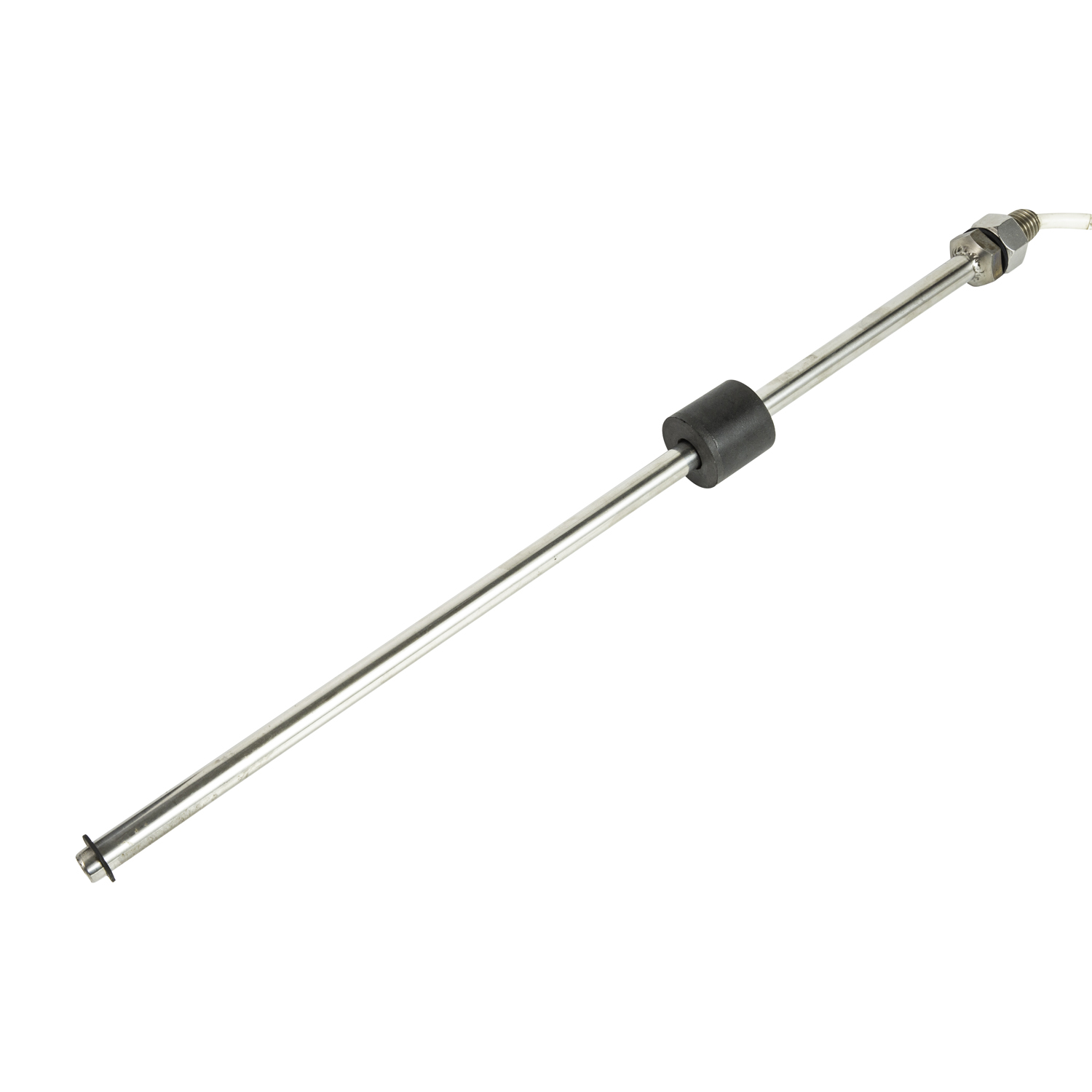

FLS-H Series (Heavy Duty)
Designed for heavy trucks and off-road vehicles. Rugged aluminum header with integrated connector.
- Material: Aluminum Alloy
- Mounting: Bayonet / Twist Lock
- Output: 0-190Ω / 4-20mA / 0-5V
- Length: 200mm to 1000mm
FLS-L / S5 Series
Cost-effective solution for light trucks, generators, and marine. Made of SUS304/316 Stainless Steel.
- Material: SUS304 / SUS316
- Mounting: SAE Standard 5-Hole
- Resolution: 10mm – 21mm
- Temp: -40°C to +85°C

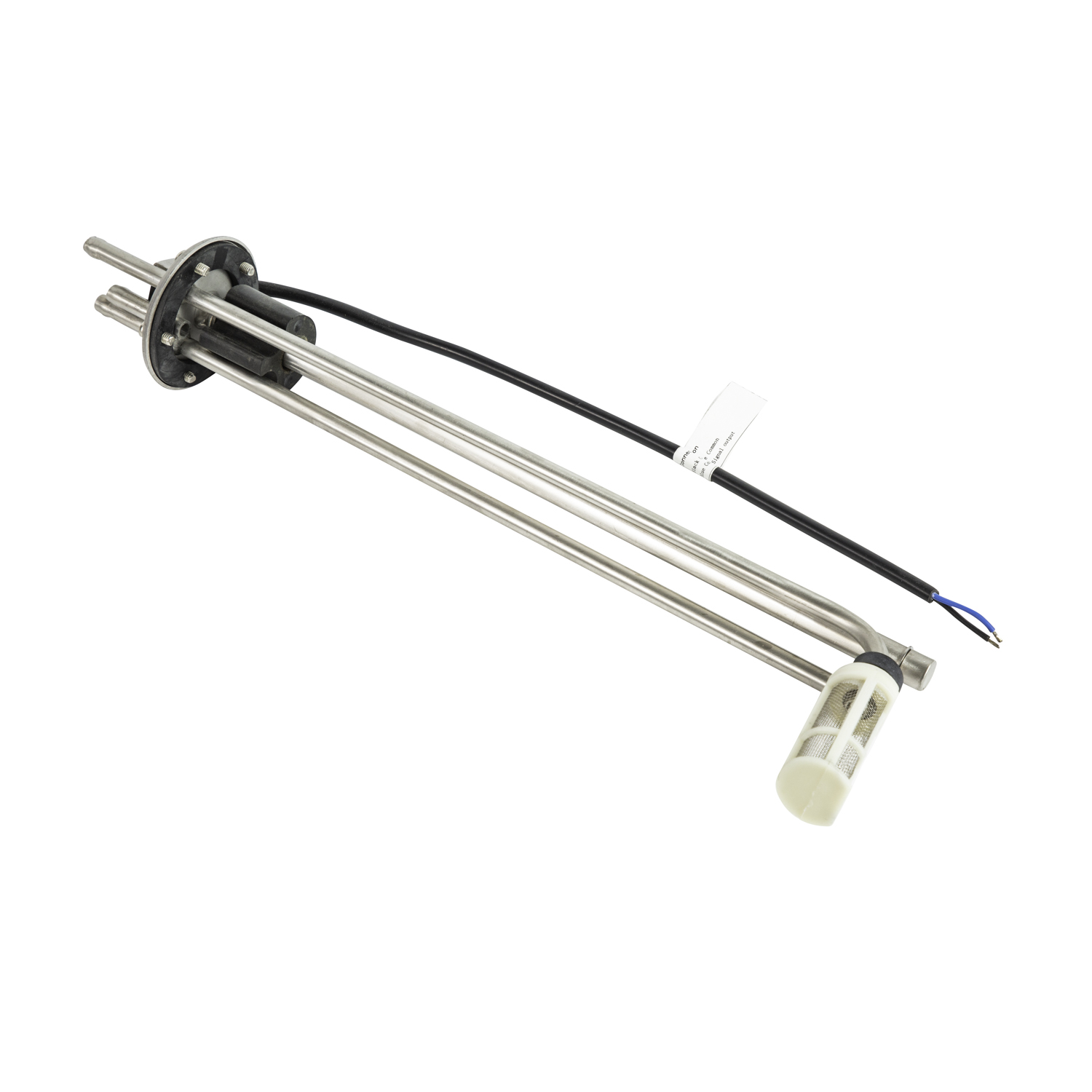

FLS-S Series
Designed specifically for GPS Fleet Management. Compatible with vehicle trackers.
- Voltage Input: 10-32V DC
- Output: 0.5-4.5V / RS232 Option
- Mounting: SAE 5-Hole or BSP Thread
- Feature: High Stability Signal

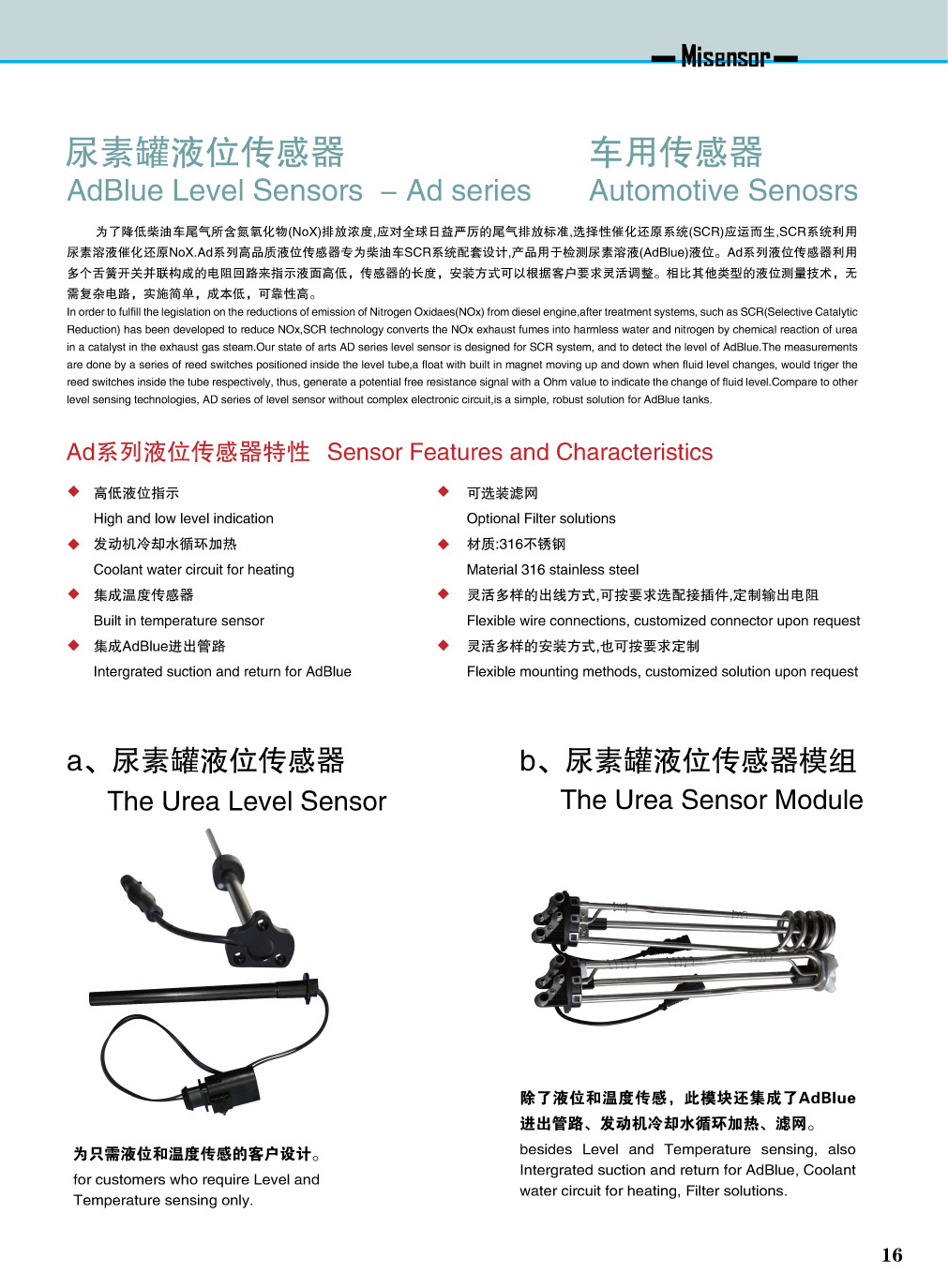

AdBlue (DEF) Urea Sensors
Ad Series: Designed for SCR systems to reduce NOx emissions. AdBlue freezes at -11°C, so our sensors integrate a coolant heating circuit.
- ✔ Material: 316 Stainless Steel (Corrosion Resistant)
- ✔ Integrated Functions: Level + Temperature + Heating + Suction/Return
- ✔ Filter: Optional filter foot to protect the pump
- ✔ Connector: TE / Delphi / Deutsch available

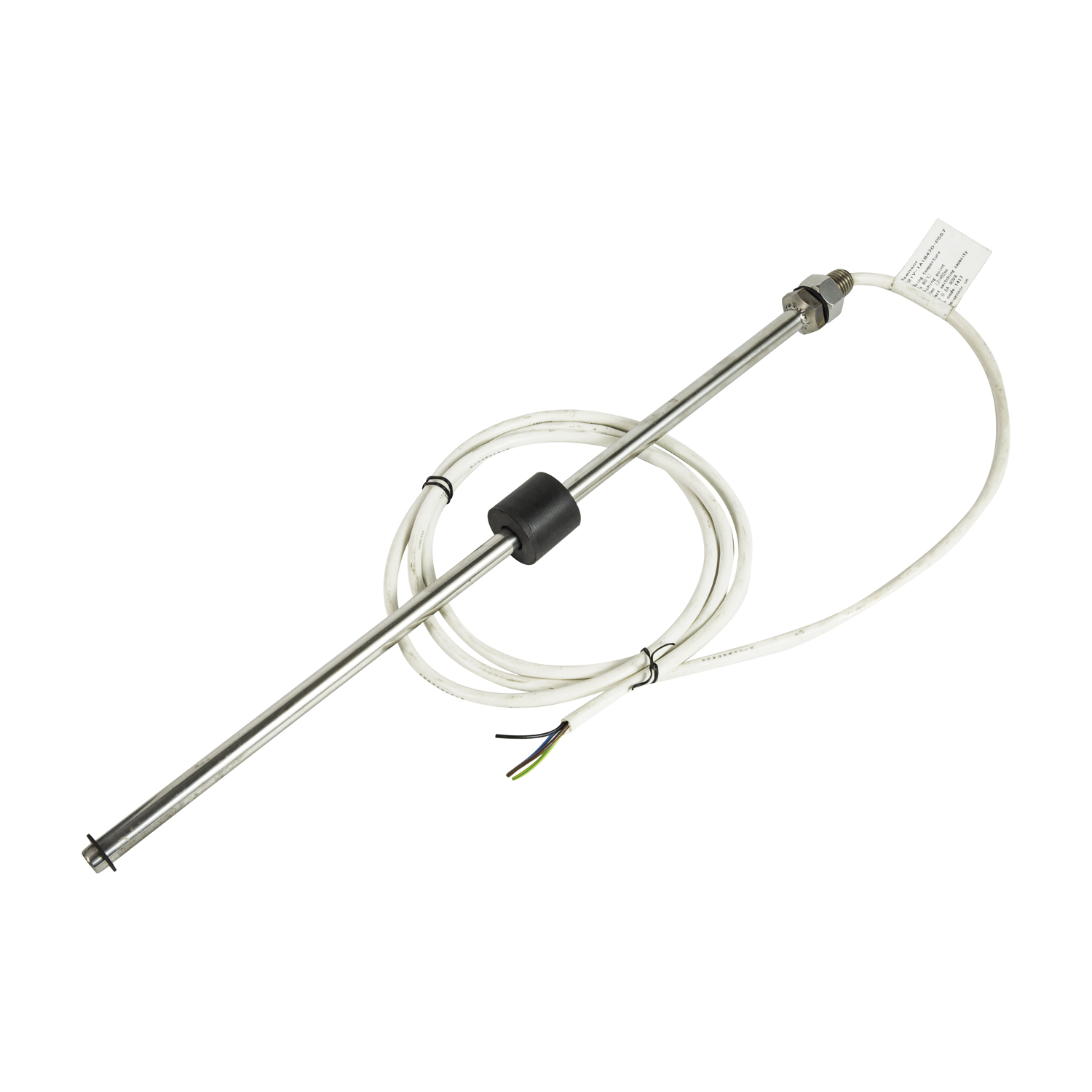

CLS Capacitive Sensors
Unlike reed sensors, the CLS series uses capacitance technology for continuous, high-precision measurement (Resolution < 1mm). Best for tall tanks or when length customization is needed.
Key Feature: Cut-to-Length
Distributors can stock long units and cut them to size. Calibration is done via external calibrator.
Specifications
- Length: 200mm – 1500mm
- Output: 0-5V / RS485 / RS232
- Accuracy: < 1.0%
- IP Rating: IP65
Datasheet CLS
Installation Methods
We support all major international tank standards.

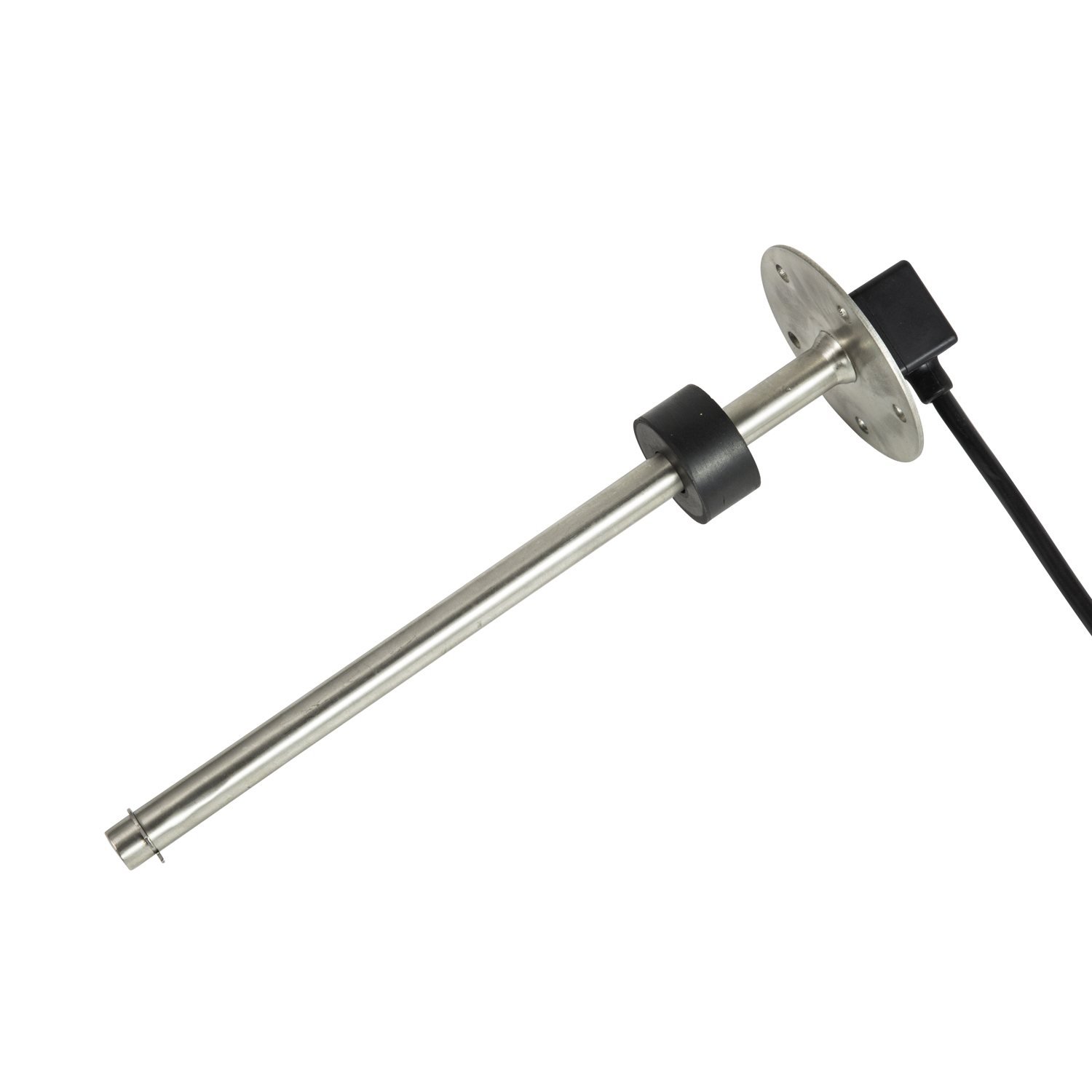

SAE Standard 5-Hole (Most Common)
Includes NBR Gasket & M5 Screws.

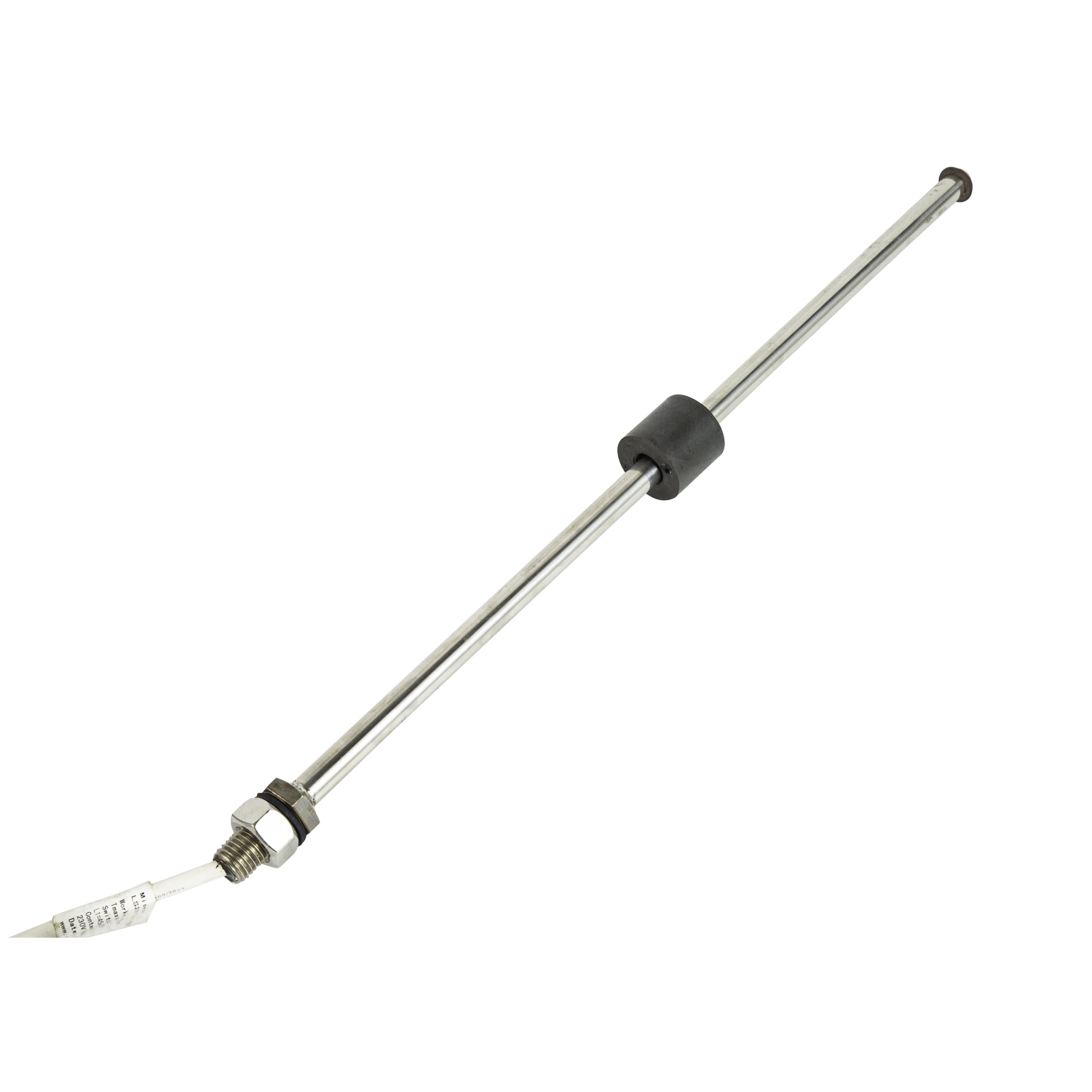

BSP / NPT Thread
1-1/4″, 1-1/2″ Threads for screw-in tanks.

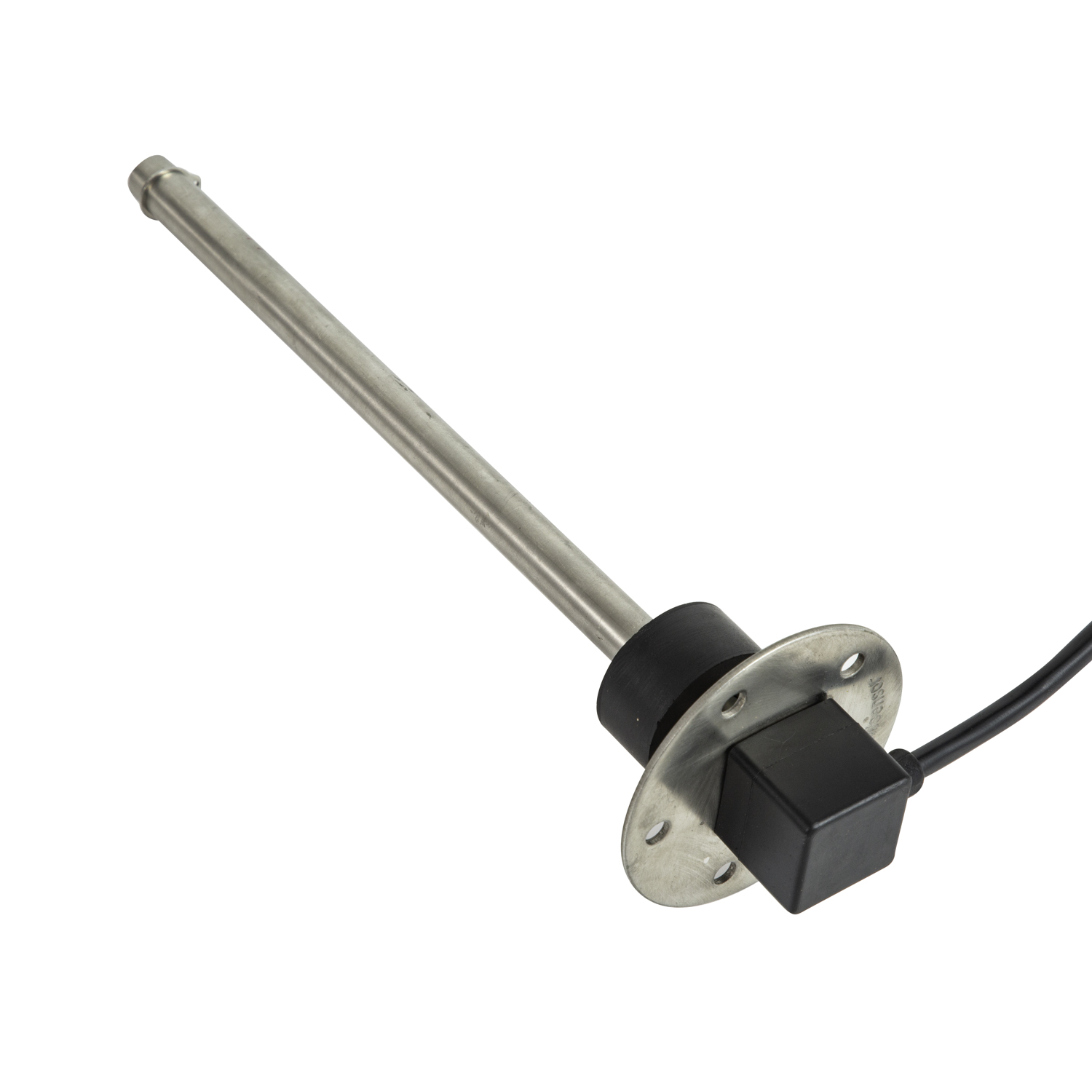

C-Ring / Bayonet (Fast Mount)
Cam-lock style for rapid assembly lines.
Need a Custom Length?
We manufacture sensors from 100mm to 2000mm with custom Ohm ranges (0-190, 240-33, etc.).
Request Specification Sheet
