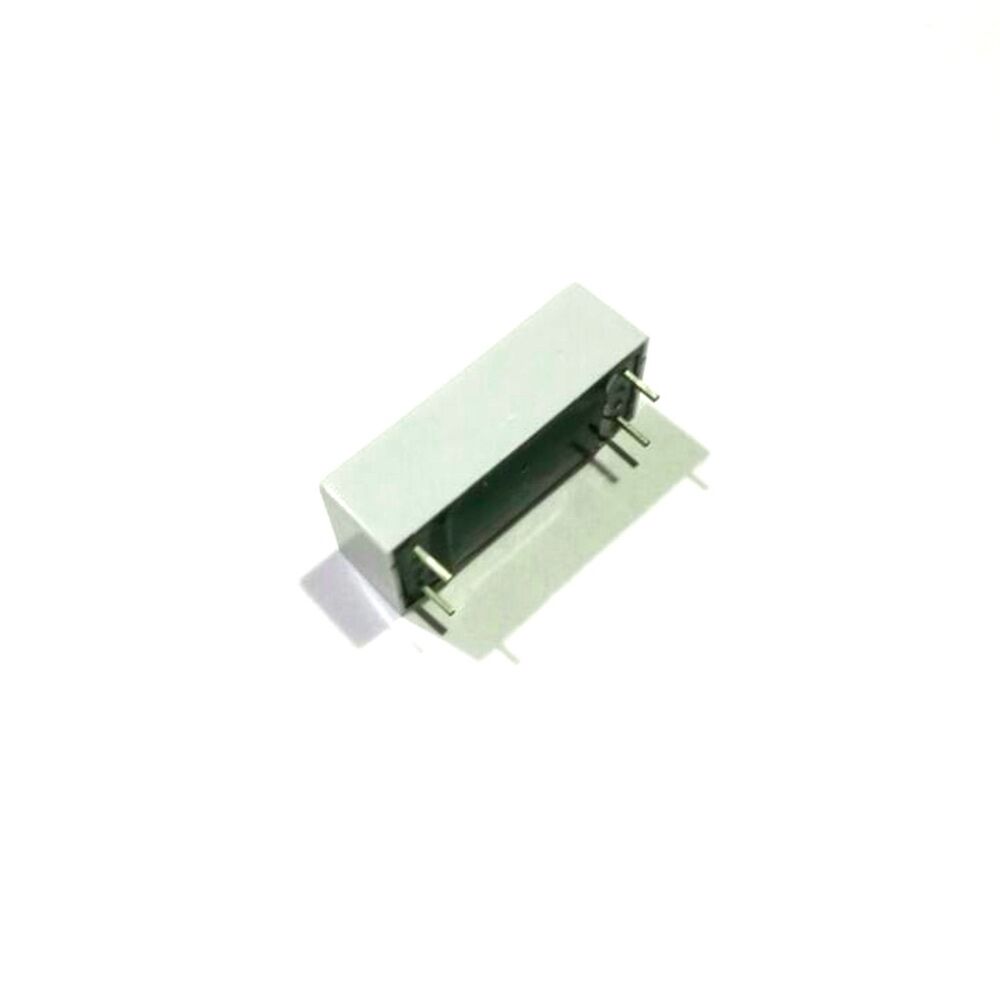

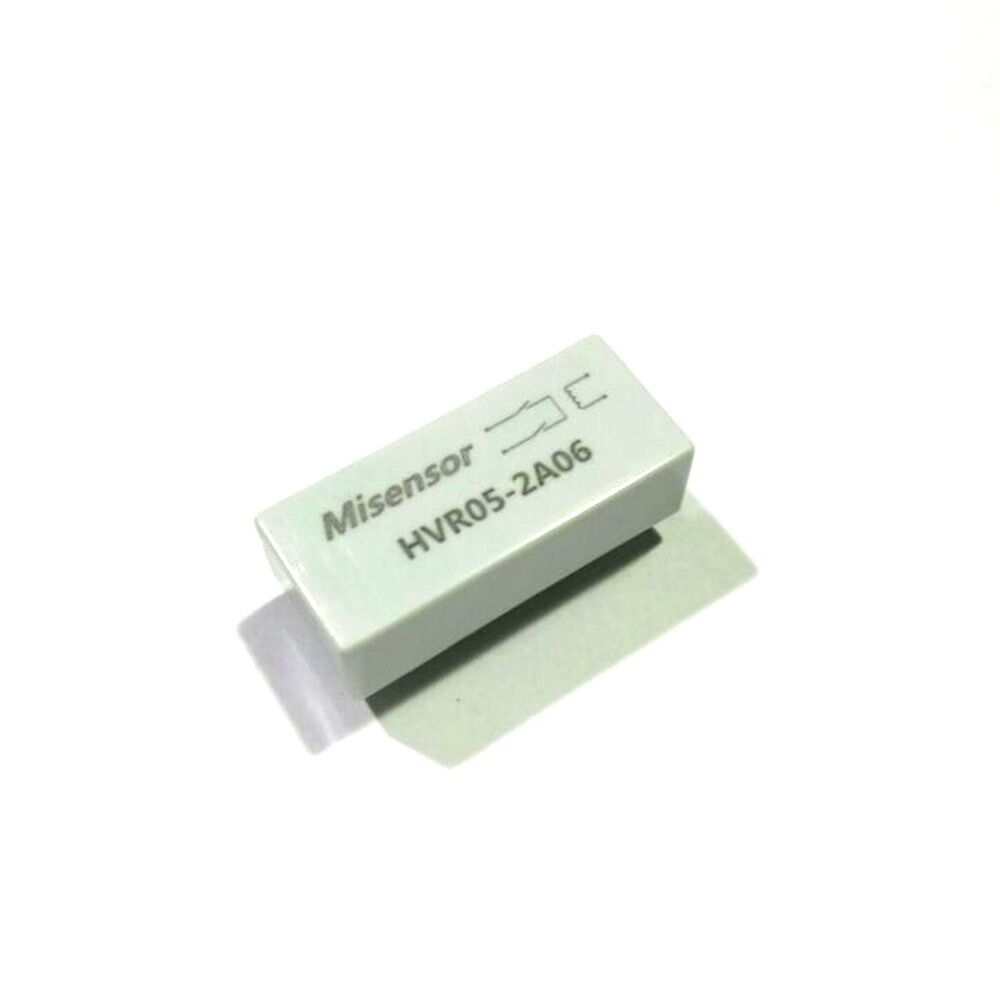

HV Cable 5V Coil 6KV Contact High Voltage Reed Relay HVR05-2A06
Original price was: $65.00.$58.00Current price is: $58.00.
Porduct Feature
Breakdown Voltage up to 6KVDC
Coil Voltage 5V
Low Contact Resistance
Excellent lifetime Characteristics
Hermetically sealed for long life
Low Contact resistance
Custom Design Available For Coil Resistance and Pin Out
Description
High Voltage Reed Relay HVR05-2A06
Product Attributes
| TYPE | DESCRIPTION |
| Category | High Voltage Reed Relays |
| Mfr | SHR Reed Relay |
| Series | 6kv |
| Package | Bulk |
| Mounting Type | Through Hole |
| Coil Parameters | |
| Coil Voltage | 5VDC |
| Coil Type | Non Latching |
| Features | Diode, Electrostatic Shield |
| Termination Style | PC Pin |
| Must Operate Voltage | 7 VDC |
| Must Release Voltage | 0.5 VDC |
| Coil Resistance | 1.6 kOhms |
| Contact Parameters | |
| Max Contact Rating | 100W |
| Max Switch Voltage | 1000VAC Peak/VDC |
| Max Switch Current | 1A |
| Max Carrying Current | 2.5A |
| Min Breakdown Voltage | 6K VDC |
| Max Contact Resistance | 150*2 mohm |
| Relay Parameters | |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -35°C ~ 105°C |
| Min Breakdown Voltage | 6K VDC |
| Dielectric Strength coil/contact | 6K VDC |
| Operate Time | 1 ms |
| Reset Time | 0.1 ms |
| Capacitance Across Contacts | 0.2pF |
| Soldering Temperature | 5sec max 260℃ |
Drawing
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 15 × 15 cm |
