15000V DIP High Voltage Reed Relay Coil 24V HVR24-1A15-04

Name: 15000V DIP High Voltage Reed Relay Coil 24V HVR24-1A15-04
Brand: SHR AUTOSENSOR
Price: 50 USD
Availability: InStock

Technical product information for engineering review. Request datasheet, samples, pricing, lead time, or a cross-reference recommendation for this part.

Request Quote Cross Reference

Sale!

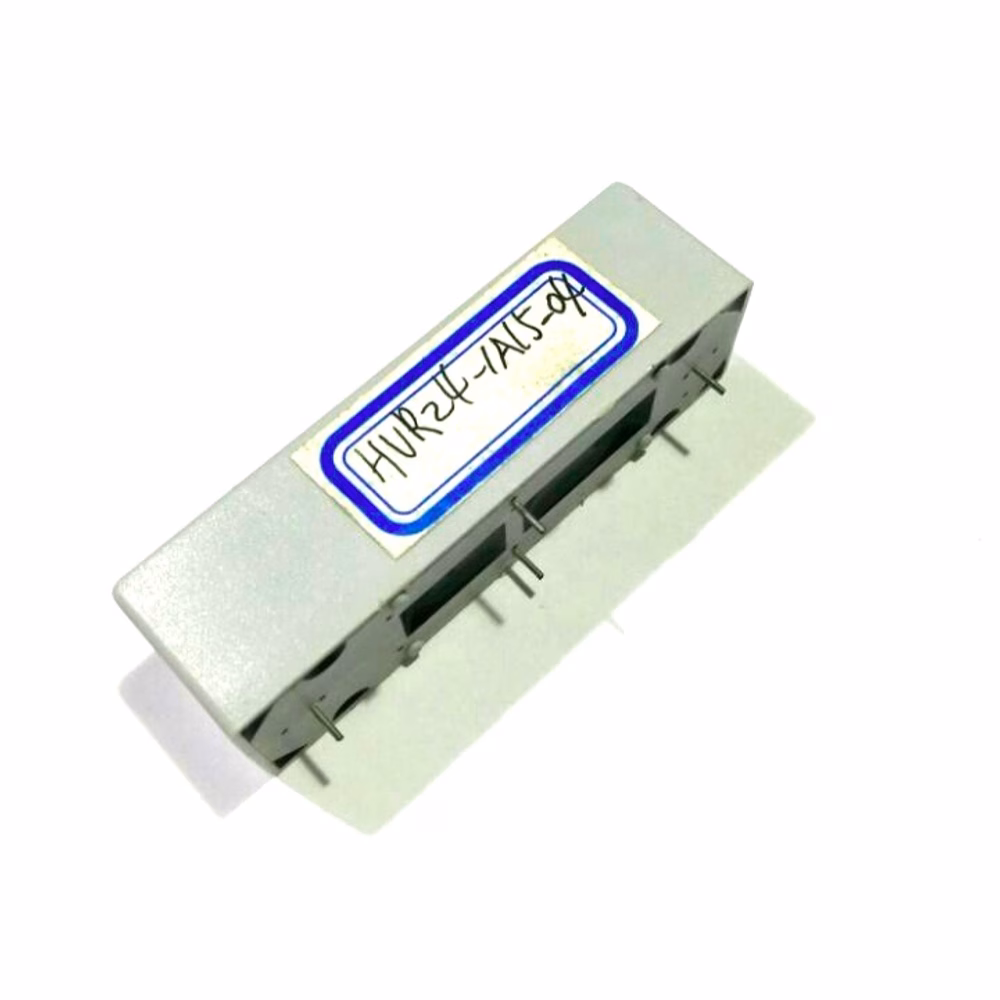

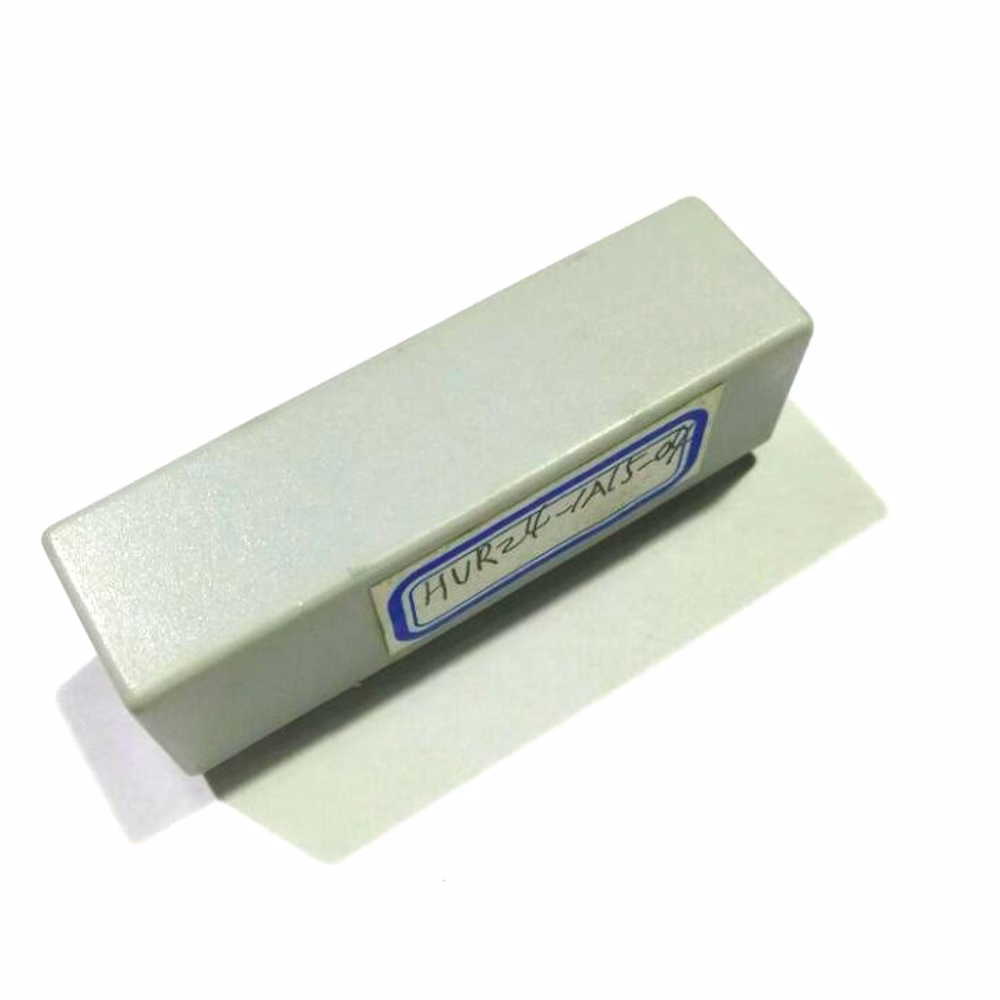

15000V DIP High Voltage Reed Relay Coil 24V HVR24-1A15-04

Original price was: $60.00.Current price is: $50.00.

Product Features
Breakdown Voltage up to 15KVDC
Coil Voltage 24V
Low Contact Resistance
Excellent lifetime Characteristics
Hermetically sealed for long life
Low Contact resistance
Custom design available

Sample, Datasheet & Engineering Support

Model: HVR24-1A15-04
Purchase path: Buy sample online
Production projects: RFQ recommended for final electrical confirmation.

Download PDF Datasheet Request Production Quote Sample Store

Request Quote Cross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

Buy Sample

Shipping included · In stock · Ships within 72 hours

Model detail

HVR24-1A15-04 product details, applications and specifications

Select this family when the design needs compact high-voltage switching, low leakage, clean signal isolation and repeatable switching in test or instrumentation systems. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

High Voltage Reed Relay principle illustration

1High-voltage input

2Hermetic reed switch

3Insulated relay package

4ATE / medical / HV output

Main specifications for RFQ

Public model: HVR24-1A15-04
Product family: High Voltage Reed Relays, 15KV Reed Relay
Coil Voltage: 24V
Breakdown Voltage: 15KVDC
Contact form: 1 Form A
Coil resistance: 600±10% Ω
Max pull-in voltage: 18 VDC
Min drop-out voltage: 2 VDC
Max carrying current: 5.0 A
Min breakdown voltage: 15 kVDC
Max contact resistance: 150 mΩ
Insulation resistance: 1×1012Ω
Reset time: 1.5 ms
Capacitance: across open switch1.0 pF
Datasheet: Available as individual PDF for this model

Specifications above are extracted from the live product content for this model. Confirm final ratings, drawings and ordering code through the PDF datasheet or RFQ before production use.

Datasheet-style view

HVR24-1A15-04 technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Breakdown / dielectric: 15KVDC
Voltage classes: 4kV / 6kV / 10kV / 15kV / 20kV series

Coil / control data

Coil voltage: 24V
Coil options: Model-specific coil voltage; confirm by datasheet/RFQ

Contact / output data

Capacitance: across open switch1.0 pF
Contact forms: 1 Form A and series-dependent options

Mechanical & mounting

Insulation focus: High dielectric strength and low leakage signal switching
Mounting: PCB relay, module and custom high-voltage assembly options

Ordering / RFQ notes

Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.
Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
For reed relays, keep switching voltage, stand-off/hold-off voltage and dielectric strength separate during selection.
Product family context: High Voltage Reed Relay.

Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Separate switching, stand-off and dielectric ratingsSwitching voltage is the voltage the relay may open or close under specified load. Stand-off/hold-off and dielectric ratings are withstand tests and should not be treated as hot-switching capability.

Dry reed relays are low-bounce, not universally zero-bounceUse model datasheets for operate time and bounce behavior. Reserve bounce-free language for mercury wetted contacts or explicitly specified designs.

Load type controls lifeCapacitive inrush, inductive energy and hot-switching conditions can reduce contact life. Confirm load type, duty cycle and safety margin through datasheet review and RFQ.

Typical applications

Semiconductor ATE and wafer probe switching
Medical high-voltage diagnostic equipment
Cable / insulation / hipot test systems
Precision instrumentation and high-voltage multiplexing

What to confirm before purchase

Voltage, current, load type and safety margin
Contact form, coil voltage and drive circuit
Mounting, wiring, environmental and compliance requirements
Sample validation quantity and production forecast

FAQ

HVR24-1A15-04 ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering HVR24-1A15-04?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for HVR24-1A15-04?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Semiconductor ATE and wafer probe switching, Medical high-voltage diagnostic equipment, Cable / insulation / hipot test systems, Precision instrumentation and high-voltage multiplexing.

Recommended next steps

HVR24-1A15-04 selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering details Request engineering quoteSend load, voltage, quantity and validation requirements Compare all modelsBrowse the complete model index and related series View High Voltage Reed Relays familyReturn to category guide, comparison and representative models Family catalog PDFOpen the product-family catalog for broader selection

Download HVR24-1A15-04 Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

HVR24-1A15-04

15 kVDC High Voltage Reed Relay, 1 Form A, 24 VDC coil

The HVR24-1A15-04 is a high-voltage reed relay from SHR, designed for reliable high-voltage switching with long-life sealed reed contacts. It offers 15 kVDC minimum breakdown voltage and is suited to high-voltage test, medical, and industrial applications.

Key Specifications

Contact form	1 Form A
Nominal coil voltage	24 VDC
Nominal coil current	40 mA
Coil resistance	600±10% Ω
Max pull-in voltage	18 VDC
Min drop-out voltage	2 VDC
Max contact rating	50 W
Max switching voltage	10 kVDC
Max switching current	3.0 A
Max carrying current	5.0 A
Min breakdown voltage	15 kVDC
Max contact resistance	150 mΩ
Dielectric strength, open contacts (min, static)	15 kVDC
Dielectric strength, contact to coil (min, static)	15 kVDC
Insulation resistance	1×10¹²Ω
Operate time (incl. bounce)	3.0 ms
Reset time	1.5 ms
Capacitance across open switch	1.0 pF
Life expectancy (electrical)	5×10⁷ ops (at 500 VDC 100mA)
Operating temperature	-20°C to 70°C
Storage temperature	-35°C to 105°C
Washability	fully sealed

Key Highlights

High Voltage Reed Relay
Low Contact Resistance
Breakdown up to 15 kVDC
Excellent Lifetime Characteristics
Custom Design Available

Applications

High-voltage test and measurement
Medical equipment
Industrial controls
Power systems

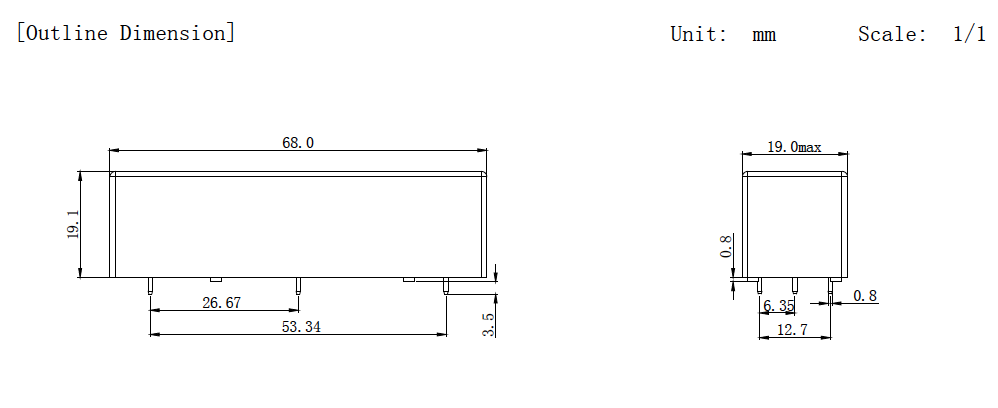

Specifications per the HVR24-1A15-04 datasheet (Ver. 04) (SHR). Refer to the datasheet for outline dimensions and pin layout.

Additional information

Dimensions	15 × 15 × 15 cm
