SIP-1A24B

JUNO-REED-RELAY-MSR-104 Reed Relay

$60.00

JUNO-REED-RELAY-MSR-104 Reed Relay for engineering selection. Coil 12 VDC. one Form A (NO) set 1A contact. 500V DC/Peak AC switching. 10 W rating.

Sample, Datasheet & Engineering Support

  • Model: JUNO-REED-RELAY-MSR-104
  • Purchase path: Buy sample online
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

Buy Sample

Shipping included · In stock · Ships within 72 hours

SKU: JUNO-REED-RELAY-MSR-104 Categories: , ,
Model detail

JUNO-REED-RELAY-MSR-104 product details, applications and specifications

Select this family for compact signal-level switching. Confirm breakdown voltage, coil power and switching current against the model datasheet before final design. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

SIP-1A24B
Standard & Miniature Reed Relay principle illustration
1Control coil drive
2Hermetic reed switch
3SIP / miniature package
4PCB signal output

Main specifications for RFQ

Public model
JUNO-REED-RELAY-MSR-104
Product family
1KV Reed Relay, JUNO Reed Relays, Standard & Miniature Reed Relays
Contact form
1 Form A
Coil resistance
450 Ω
Max carrying current
1.0 A
Insulation resistance
1.00×1012 Ω
Reset time
0.2 ms
Datasheet
Available as individual PDF for this model

Specifications above are extracted from the live product content for this model. Confirm final ratings, drawings and ordering code through the PDF datasheet or RFQ before production use.

Datasheet-style view

JUNO-REED-RELAY-MSR-104 technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Voltage classes
Signal-level ratings by series; model-specific breakdown voltage per datasheet

Coil / control data

Coil options
5 VDC / 12 VDC / 24 VDC nominal; custom coils on request

Contact / output data

Contact forms
1 Form A / 1 Form B and series-dependent options

Mechanical & mounting

Insulation focus
Sealed low-leakage signal switching
Mounting
PCB through-hole, SMD or connector options

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.
  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For reed relays, keep switching voltage, stand-off/hold-off voltage and dielectric strength separate during selection.
  • Product family context: Standard & Miniature Reed Relay.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Separate switching, stand-off and dielectric ratingsSwitching voltage is the voltage the relay may open or close under specified load. Stand-off/hold-off and dielectric ratings are withstand tests and should not be treated as hot-switching capability.
Dry reed relays are low-bounce, not universally zero-bounceUse model datasheets for operate time and bounce behavior. Reserve bounce-free language for mercury wetted contacts or explicitly specified designs.
Load type controls lifeCapacitive inrush, inductive energy and hot-switching conditions can reduce contact life. Confirm load type, duty cycle and safety margin through datasheet review and RFQ.

Typical applications

  • Test and measurement equipment
  • Telecom and data-line switching
  • Industrial control boards
  • Medical diagnostic instruments

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

JUNO-REED-RELAY-MSR-104 ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering JUNO-REED-RELAY-MSR-104?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for JUNO-REED-RELAY-MSR-104?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Test and measurement equipment, Telecom and data-line switching, Industrial control boards, Medical diagnostic instruments.

Recommended next steps

JUNO-REED-RELAY-MSR-104 selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView 1KV Reed Relay familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download JUNO-REED-RELAY-MSR-104 Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

JUNO-REED-RELAY-MSR-104

JUNO Reed Relay, 12V Coil, 1 Form A

The JUNO-REED-RELAY-MSR-104 is a JUNO series reed relay with 1 Form A contacts rated 10W. Driven by a 12VDC coil, it offers 1 KVDC dielectric strength and hermetically sealed contacts, suitable for industrial control, test and communication applications.

Key Specifications

Relay series JUNO
Contact form 1 Form A
Nominal coil voltage 12 VDC
Max voltage 16 VDC
Max operate voltage 8.5 VDC
Min release voltage 1 VDC
Coil resistance 450 Ω
Max switch power 10 W
Max switching voltage 500V DC / peak AC
Max switching current 0.5 A
Max carrying current 1.0 A
Dielectric strength (contact / contact-coil) 1 KVDC
Insulation resistance 1.00×1012 Ω
Operate time (incl. bounce) 0.5 ms
Reset time 0.2 ms
Vibration 20 G, 10Hz–2KHz
Shock 50 G, 11ms 1/2 sine wave
Operating temperature -20°C to +70°C
Storage temperature -35°C to +105°C
Soldering temperature 260°C max, 5 sec

Key Highlights

  • Hermetically sealed reed contacts
  • High dielectric strength
  • Low contact resistance
  • Compact PCB-mount package
  • Custom design available

Applications

  • Industrial control systems
  • Test and measurement instruments
  • Communication equipment
  • Automatic control devices

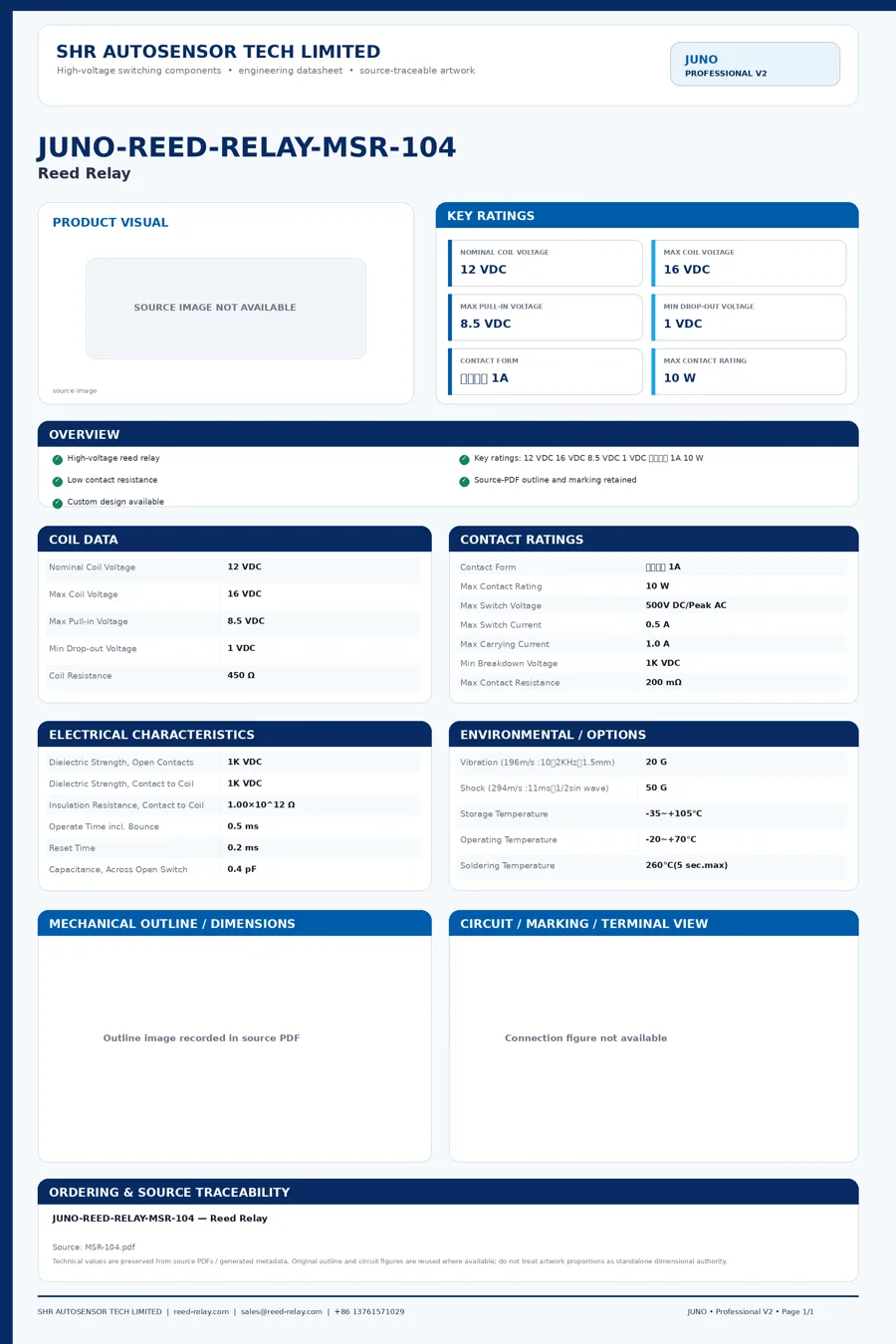

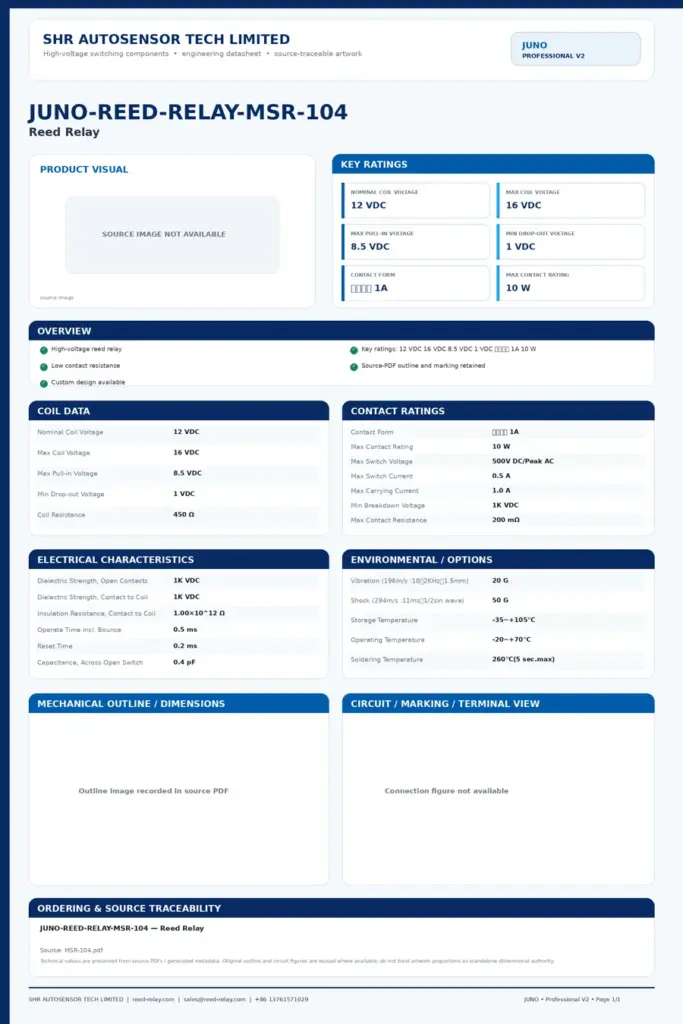

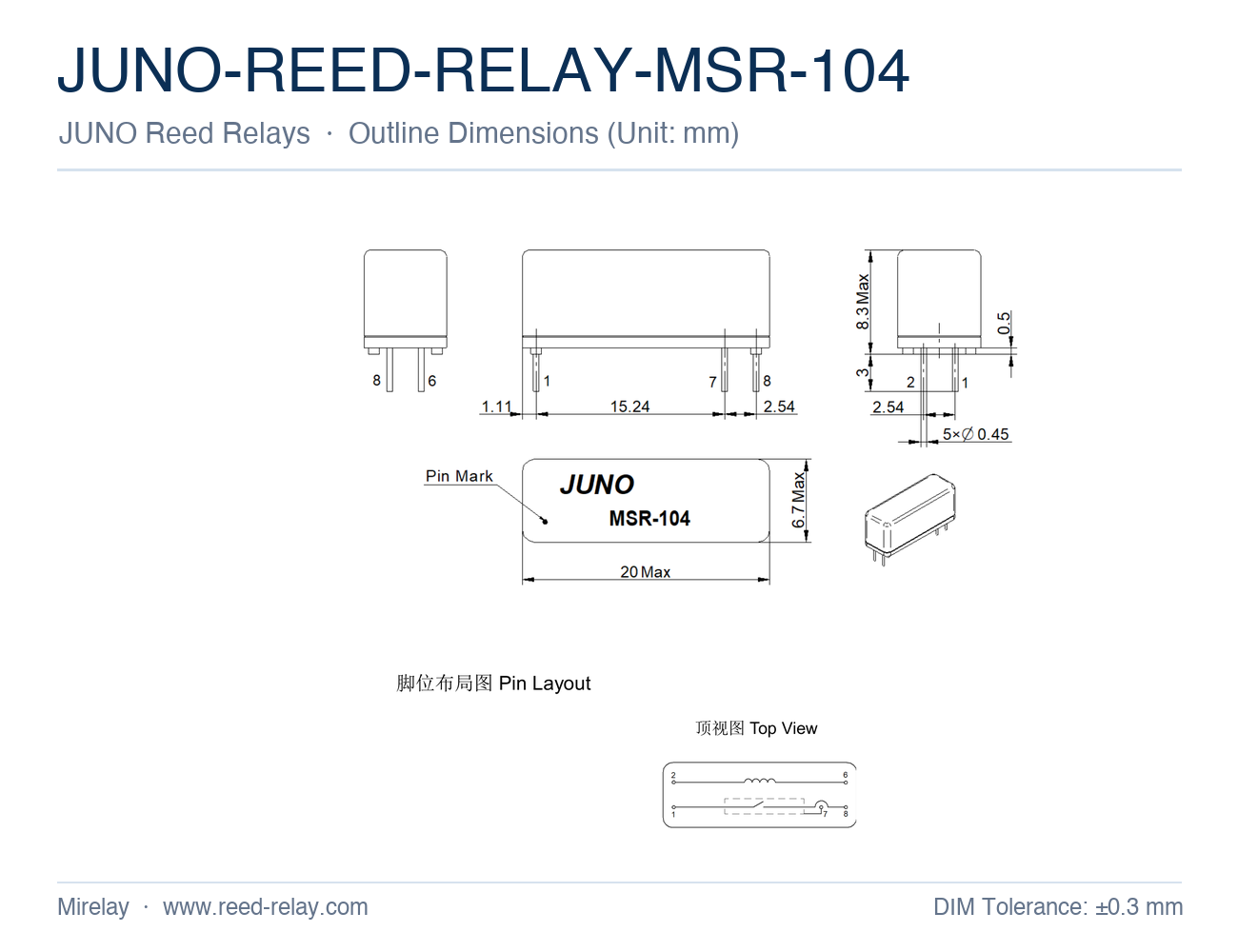

Specifications per the JUNO MSR-104 datasheet. Refer to the datasheet for outline dimensions and pin layout.
