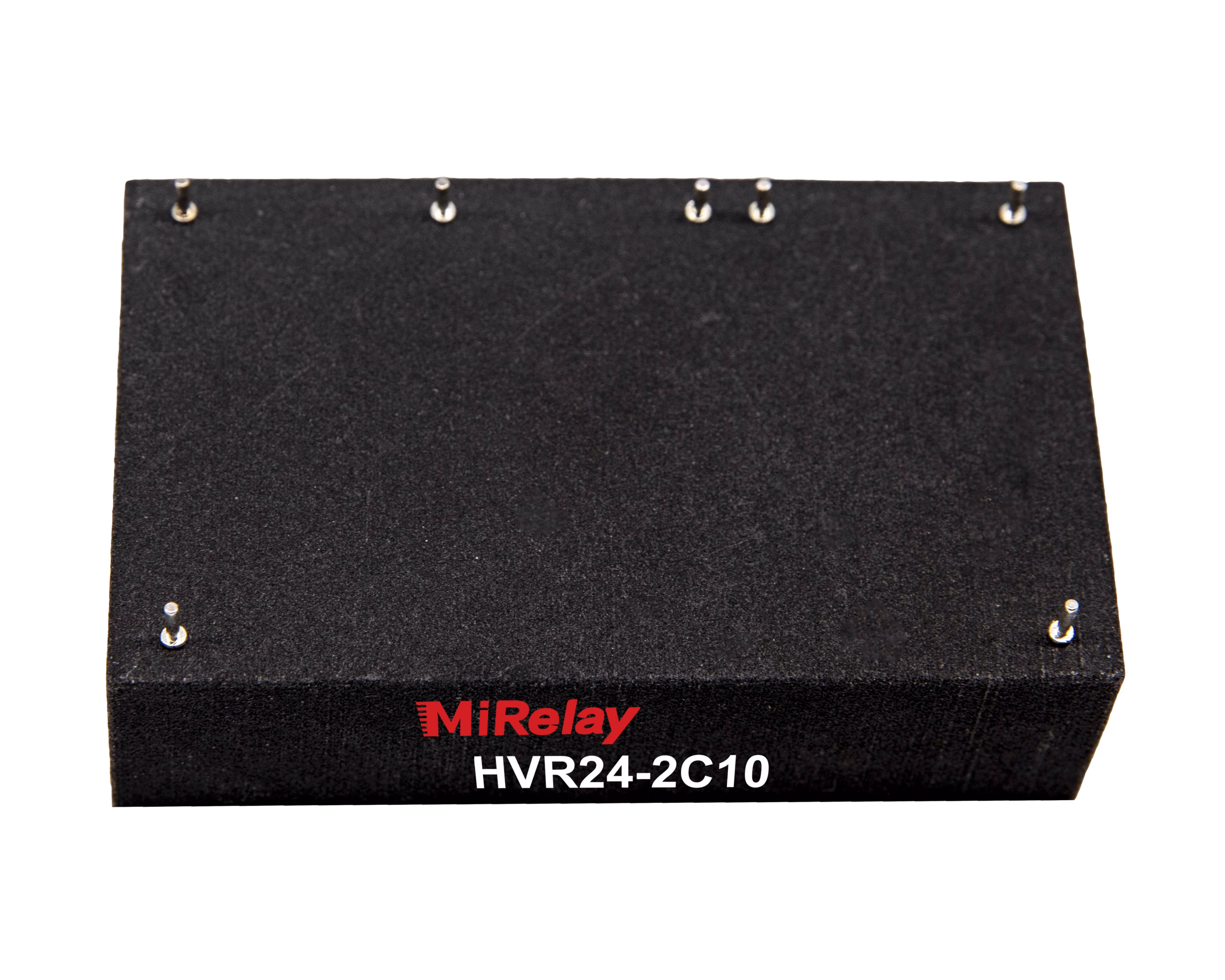

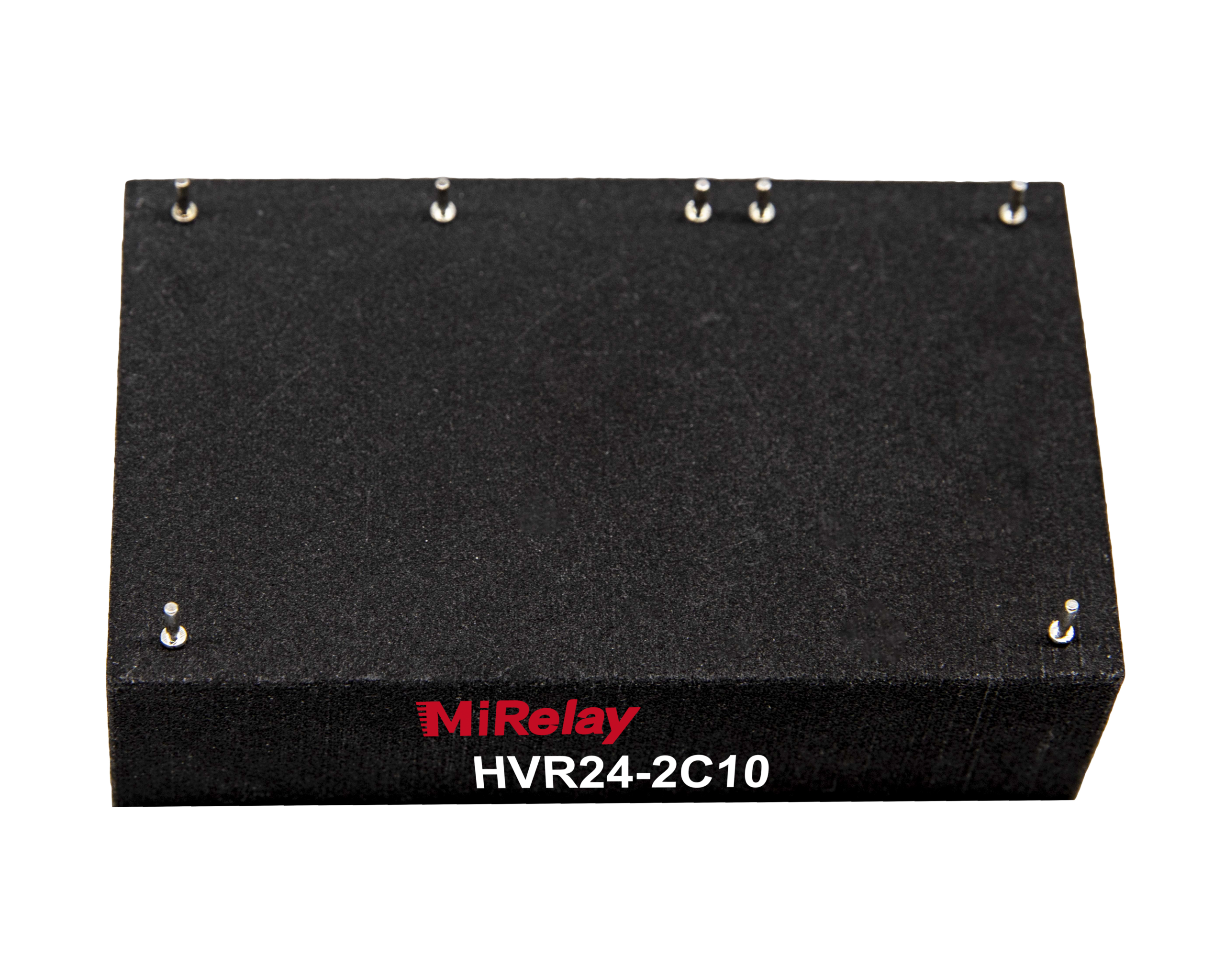

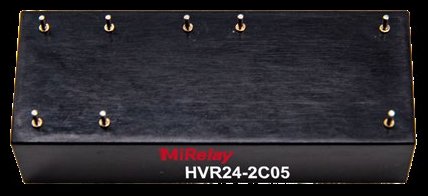

HVR24-2C10
10000 V High Voltage Reed Relay, 1 Form A, 24 VDC coil
The HVR24-2C10 is a high-voltage reed relay from SHR, designed for reliable high-voltage switching with long-life sealed reed contacts. It offers 10000 V minimum breakdown voltage and is suited to high-voltage test, medical, and industrial applications.
Key Specifications
| Contact form | 1 Form A (series) |
| Nominal coil voltage | 24 VDC (series) |
| Coil resistance | 600 Ω ±10% at 20°C (series) |
| Max pull-in voltage | 18 VDC (series) |
| Min drop-out voltage | 2 VDC (series) |
| Max contact rating | 50 W (series) |
| Max switching voltage | 7500 V (series) |
| Max switching current | 3.0 A (series) |
| Max carrying current | 5.0 A at 60°C (series) |
| Min breakdown voltage | 10000 V (series) |
| Max contact resistance | 150 mΩ (series) |
| Dielectric strength, contact to coil | 15000 V (series) |
| Insulation resistance | 10^12 Ω (series) |
| Operate time (incl. bounce) | 3.0 ms (series) |
| Reset time | 1.5 ms (series) |
| Life expectancy (electrical) | 5×10^7 ops (at 500VDC-100mA) (series) |
| Operating temperature | -20°C to +70°C (series) |
| Storage temperature | -35°C to +105°C (series) |
Key Highlights
- High power reed relay with dielectric strength up to 18KV DC
- High carry current
- High insulation resistance, up to 10^12Ω
- Low contact resistance, excellent lifetime characteristics
- Custom design, conforming to RoHS directive
Applications
- High-voltage test and measurement
- Medical equipment
- Industrial controls
- Power systems
Specifications from the HVR Series (10KV&15KV&18KV) datasheet: 10KV dielectric column, 24V coil row; marked as series data.
Specifications per the HVR Series (10KV&15KV&18KV) datasheet (SHR). Refer to the datasheet for outline dimensions and pin layout.
