HGFR05-4A Mercury Wetted Reed Relay

Technical product information for engineering review. Request datasheet, samples, pricing, lead time, or a cross-reference recommendation for this part.

Request Quote Cross Reference

HGFR05-4A Mercury Wetted Reed Relay

HGFR05-4A Mercury Wetted Reed Relay

$60.00

HGFR05-4A Mercury Wetted Reed Relay for engineering selection. Coil 5 VDC. 4 Form A contact. 1KV ACpeak/DC switching. 50 W rating.

Sample, Datasheet & Engineering Support

  • Model: HGFR05-4A
  • Purchase path: Buy sample online
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

SKU: HGFR05-4A Categories: , ,
Model detail

HGFR05-4A product details, applications and specifications

Use this family where bounce performance and contact stability are more important than a general-purpose relay solution. Confirm orientation, regulatory and application limits before production use. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

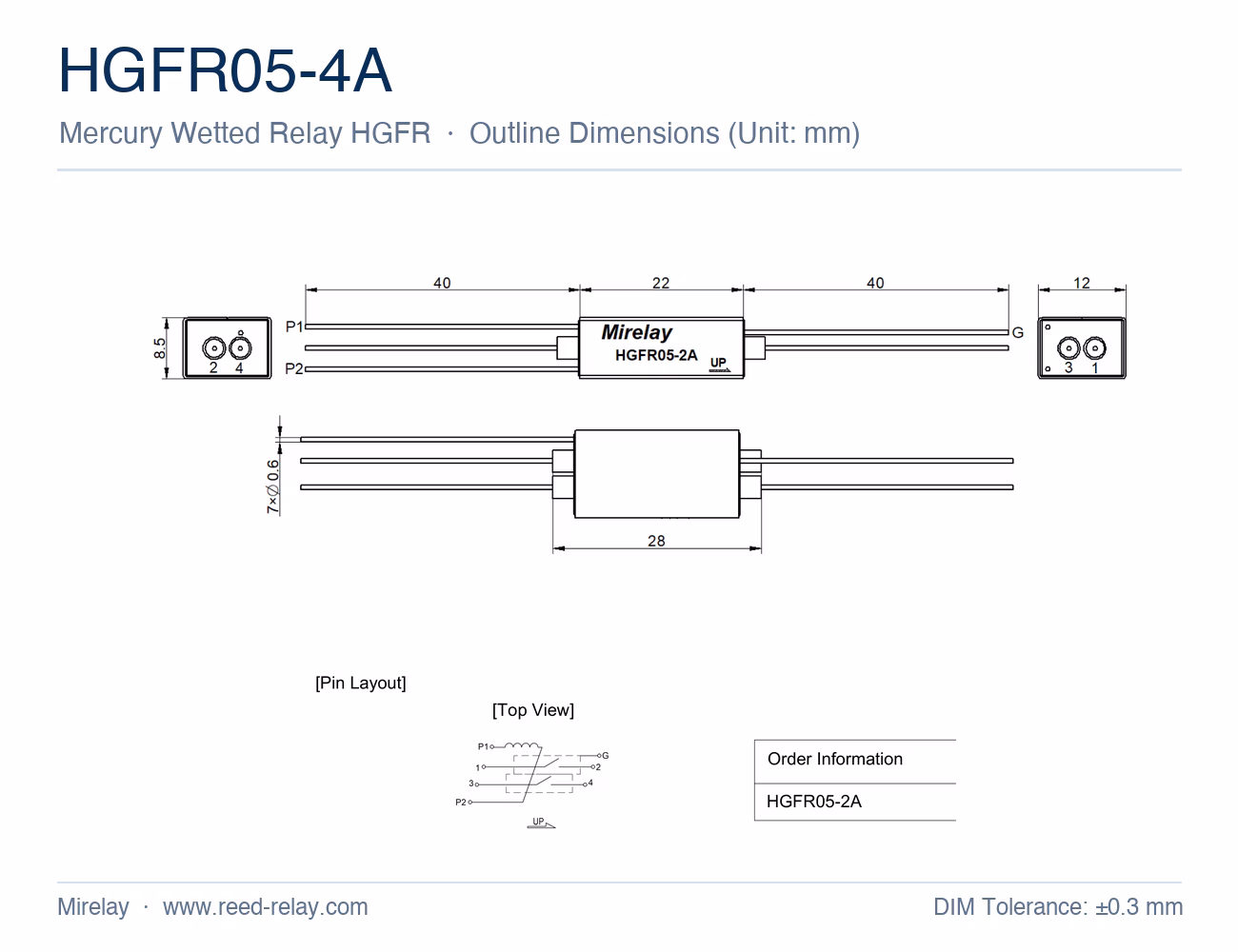

HGFR05-4A Mercury Wetted Reed Relay
Mercury Wetted Relay principle illustration
1Control coil
2Mercury wetted contact
3Stable low-resistance path
4Measurement / pulse output

Main specifications for RFQ

Public model
HGFR05-4A
Product family
2KV Reed Relay, Mercury Wetted Relays, Mercury Wetted Relay HGFR
Series
HGFR / HGMR / HGSR / HVR and related families
Switching behavior
Low bounce and stable contact resistance
Signal type
Precision signal, pulse and test switching
Orientation
Series-dependent; confirm mounting requirement by datasheet
Compliance note
Mercury handling/application suitability must be confirmed for the target market
Datasheet
Available as individual PDF for this model
Datasheet-style view

HGFR05-4A technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Mechanical & mounting

Series
HGFR / HGMR / HGSR / HVR and related families
Switching behavior
Low bounce and stable contact resistance
Signal type
Precision signal, pulse and test switching

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.
  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For mercury wetted relays, confirm required mounting orientation, mercury-related compliance and disposal rules for the target market.
  • Product family context: Mercury Wetted Relay.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Orientation and compliance must be checkedMercury wetted relays are specialized precision parts. Many types require a defined mounting orientation and may be restricted by RoHS, WEEE, transport, disposal or customer environmental rules.
Bounce wording is contact-technology specificMercury wetted contacts are selected where extremely low or bounce-free switching is required. Do not apply this claim to dry reed relays unless an individual datasheet supports it.
Best fit: precision signal switchingUse mercury wetted types for low-level measurement, pulse/timing and data-acquisition circuits where contact stability is critical, not as a universal relay upgrade.

Typical applications

  • Precision test systems
  • Pulse and timing circuits
  • Instrumentation switching
  • Industrial measurement equipment

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

HGFR05-4A ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering HGFR05-4A?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for HGFR05-4A?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Precision test systems, Pulse and timing circuits, Instrumentation switching, Industrial measurement equipment.

Recommended next steps

HGFR05-4A selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView 2KV Reed Relay familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download HGFR05-4A Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

HGFR05-4A Mercury Wetted Reed Relay for engineering selection. Coil 5 VDC. 4 Form A contact. 1KV ACpeak/DC switching. 50 W rating. Values are organized from the professional datasheet for engineering pre-selection. Confirm final switching load, insulation and footprint before order.

SeriesHGFR
Withstand2 kV
Coil5 VDC
Contact4 Form A
Download PDF DatasheetRequest Engineering RFQ

Technical specifications

Nominal coil voltage 5 VDC
Min Breakdown Voltage 2 kVDC
Contact Form 4 Form A
Max Contact Rating 50 W
Max Switch Voltage 1KV ACpeak/DC
Max Switch Current 2.0 A
Max Carrying Current 5.2 A(at 30℃)
Max Contact Resistance 80 mΩ
Dielectric Strength coil/contact 2 kVDC
Dielectric Strength contact/shield 2 kVDC
Insulation Resistance 10^12 Ω
Operate Time 2.0ms
Reset Time 2.0ms
Life Expectancy 5×10^7 ops (at 500VDC-100mA)
Vibration (0~2000Hz) 20G
Shock (11ms, 1/2 sine wave) 50G
Operating Temperature -20~+70℃
Storage Temperature -35~+105℃
Soldering Temperature 5 sec.max 260℃

Selection notes

  • Separate switching voltage from dielectric/breakdown withstand voltage.
  • Check contact form, coil drive and PCB/package outline before design-in.
  • For HRM modules, confirm terminal wiring and panel/cabinet installation requirements.
