HRM6A10/15 Series High Voltage Reed Relay Module

Technical product information for engineering review. Request datasheet, samples, pricing, lead time, or a cross-reference recommendation for this part.

Request Quote Cross Reference

SHR HRM-6A10-15 Series Reed Relay

HRM6A10/15 Series High Voltage Reed Relay Module

$60.00

HRM6A10/15 Series High Voltage Reed Relay Module for engineering selection. Multi-channel high-voltage reed relay module on DIN-rail or PCB carrier for high-channel-count HV switching.

Sample, Datasheet & Engineering Support

  • Model: HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE
  • Purchase path: Buy sample online
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

Buy Sample

Shipping included · In stock · Ships within 72 hours

SKU: HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE Category:
Model detail

HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE product details, applications and specifications

Select this family when the design needs compact high-voltage switching, low leakage, clean signal isolation and repeatable switching in test or instrumentation systems. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

SHR HRM-6A10-15 Series Reed Relay
High Voltage Reed Relay principle illustration
1High-voltage input
2Hermetic reed switch
3Insulated relay package
4ATE / medical / HV output

Main specifications for RFQ

Public model
HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE
Product family
HRM High Voltage Relay Modules
Series
HRM 6A10/15
Coil voltage
s5 / 12 / 24 VDC
Datasheet
Available as individual PDF for this model

Specifications above are extracted from the live product content for this model. Confirm final ratings, drawings and ordering code through the PDF datasheet or RFQ before production use.

Datasheet-style view

HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Voltage classes
4kV / 6kV / 10kV / 15kV / 20kV series

Coil / control data

Coil options
Model-specific coil voltage; confirm by datasheet/RFQ

Contact / output data

Contact forms
1 Form A and series-dependent options

Mechanical & mounting

Product series
HRM 6A10/15
Insulation focus
High dielectric strength and low leakage signal switching
Mounting
PCB relay, module and custom high-voltage assembly options

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.
  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For reed relays, keep switching voltage, stand-off/hold-off voltage and dielectric strength separate during selection.
  • Product family context: High Voltage Reed Relay.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Separate switching, stand-off and dielectric ratingsSwitching voltage is the voltage the relay may open or close under specified load. Stand-off/hold-off and dielectric ratings are withstand tests and should not be treated as hot-switching capability.
Dry reed relays are low-bounce, not universally zero-bounceUse model datasheets for operate time and bounce behavior. Reserve bounce-free language for mercury wetted contacts or explicitly specified designs.
Load type controls lifeCapacitive inrush, inductive energy and hot-switching conditions can reduce contact life. Confirm load type, duty cycle and safety margin through datasheet review and RFQ.

Typical applications

  • Semiconductor ATE and wafer probe switching
  • Medical high-voltage diagnostic equipment
  • Cable / insulation / hipot test systems
  • Precision instrumentation and high-voltage multiplexing

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Semiconductor ATE and wafer probe switching, Medical high-voltage diagnostic equipment, Cable / insulation / hipot test systems, Precision instrumentation and high-voltage multiplexing.

Recommended next steps

HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView HRM High Voltage Relay Modules familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download HRM6A10-15-SERIES-HIGH-VOLTAGE-REED-RELAY-MODULE Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

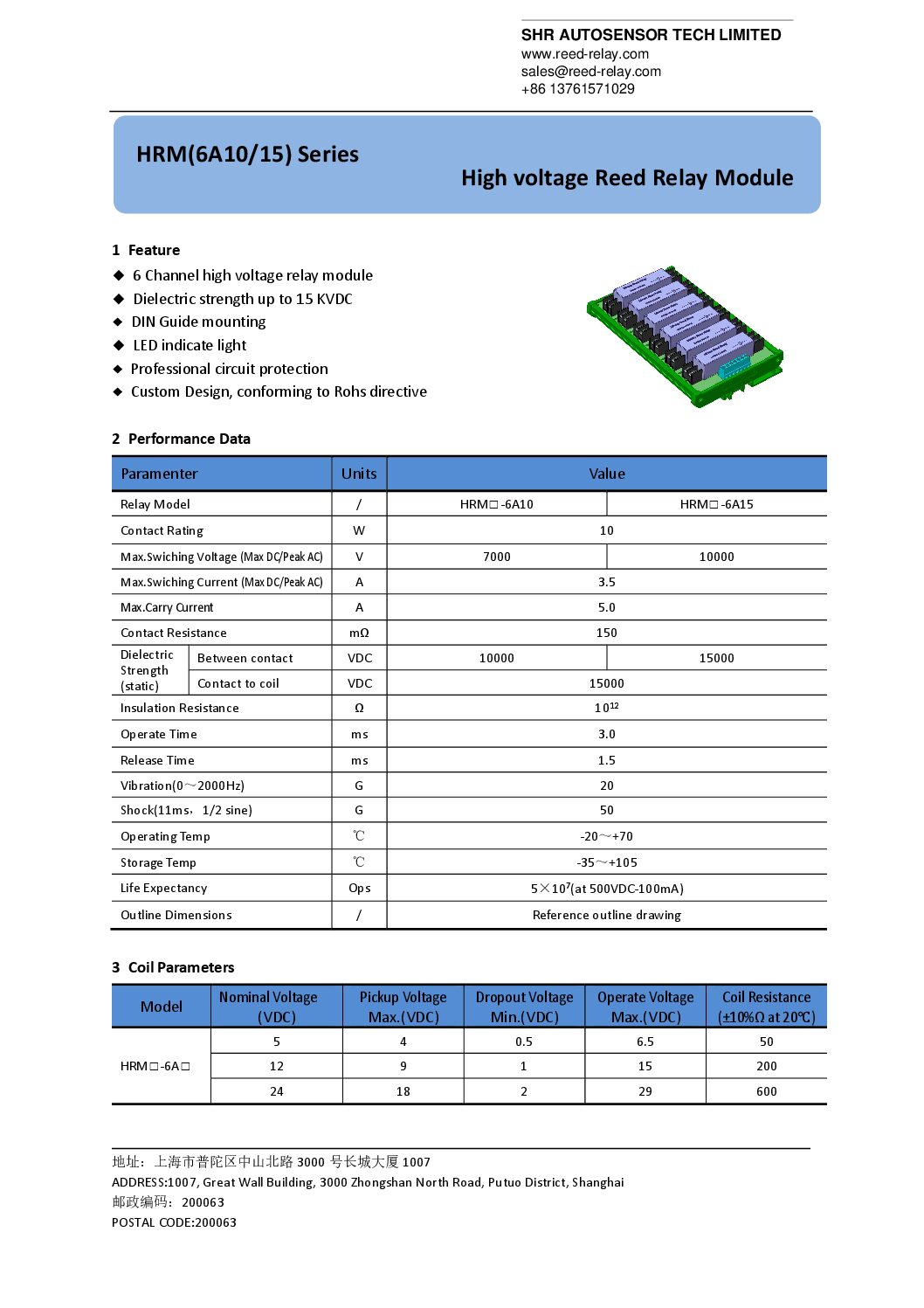

HRM6A10

6-Channel High Voltage Reed Relay Module Series (up to 15KVDC)

The HRM 6A10/15 series are 6-channel high-voltage reed relay modules in DIN rail mounting packages, available with 5V, 12V, or 24V coils. With dielectric strength up to 15KVDC, LED status indicators, and professional circuit protection, they provide compact multi-channel high-voltage switching for control cabinets.

Key Specifications

Series HRM 6A10/15
Channels 6
Mounting DIN rail
Coil voltages 5 / 12 / 24 VDC
Dielectric strength Up to 15 KVDC (10KV / 15KV variants)
Contact rating 10 W
Max switching voltage 7000 / 10000 V
Max switching current 3.5 A
Max carry current 5.0 A
Contact resistance 150 mΩ
Operate / release time 3.0 ms / 1.5 ms
Operating temperature -20°C to +70°C
Indicator LED status indicator
Compliance RoHS

Key Highlights

  • 6-channel high-voltage relay module
  • Dielectric strength up to 15KVDC
  • DIN rail mounting
  • LED status indicator
  • Professional circuit protection

Applications

  • Industrial control systems
  • Automation equipment
  • High-voltage switching cabinets
  • Test and measurement

Series overview. Select a specific model (coil voltage + 10KV/15KV variant) or submit an RFQ.
