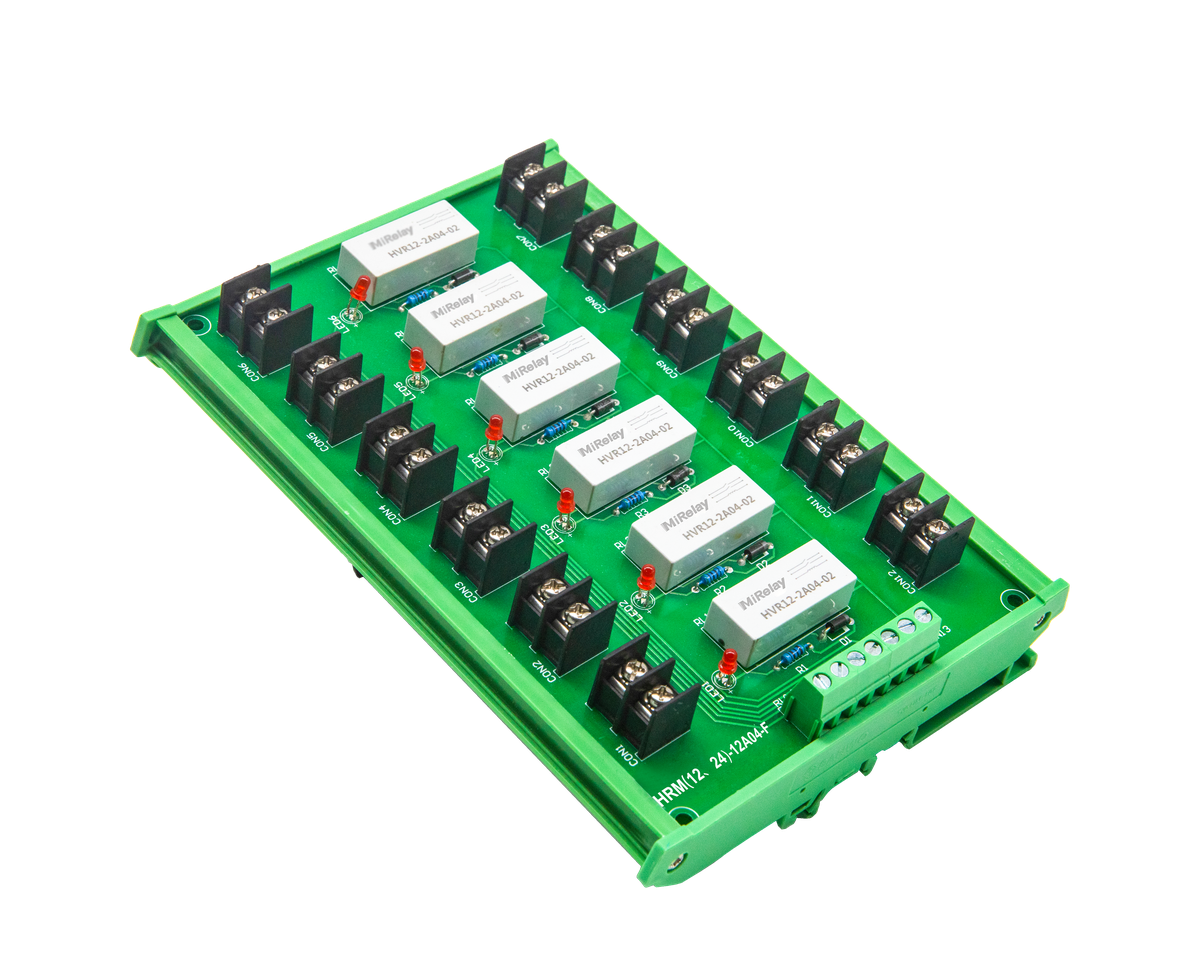

HRM12-12A04 High Voltage Reed Relay Module

Technical product information for engineering review. Request datasheet, samples, pricing, lead time, or a cross-reference recommendation for this part.

Request Quote Cross Reference

Sale!
SHR HRM-12A04 Series Reed Relay

HRM12-12A04 High Voltage Reed Relay Module

Original price was: $200.00.Current price is: $170.00.

HRM12-12A04 High Voltage Reed Relay Module for engineering selection. 12 VDC coil, 12 Form A contact, 1 kV switching, 100 W rating.

Sample, Datasheet & Engineering Support

  • Model: HRM12-12A04
  • Purchase path: Buy sample online
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

购买样品 / Buy Sample

含运费 · 有库存 · 72小时内发货

SKU: HRM12-12A04 Categories: , , Tag:
Model detail

HRM12-12A04 product details, applications and specifications

Select this family when the design needs compact high-voltage switching, low leakage, clean signal isolation and repeatable switching in test or instrumentation systems. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

SHR HRM-12A04 Series Reed Relay
High Voltage Reed Relay principle illustration
1High-voltage input
2Hermetic reed switch
3Insulated relay package
4ATE / medical / HV output

Main specifications for RFQ

Public model
HRM12-12A04
Product family
High Voltage Reed Relays, HRM High Voltage Relay Modules, 4KV Reed Relay
Coil resistance
400 Ω ±10% at 20°C
Insulation resistance
1011 Ω
Datasheet
Available as individual PDF for this model

Specifications above are extracted from the live product content for this model. Confirm final ratings, drawings and ordering code through the PDF datasheet or RFQ before production use.

Datasheet-style view

HRM12-12A04 technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Voltage classes
4kV / 6kV / 10kV / 15kV / 20kV series

Coil / control data

Coil options
Model-specific coil voltage; confirm by datasheet/RFQ

Contact / output data

Contact forms
1 Form A and series-dependent options

Mechanical & mounting

Insulation focus
High dielectric strength and low leakage signal switching
Mounting
PCB relay, module and custom high-voltage assembly options

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.
  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For reed relays, keep switching voltage, stand-off/hold-off voltage and dielectric strength separate during selection.
  • Product family context: High Voltage Reed Relay.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Separate switching, stand-off and dielectric ratingsSwitching voltage is the voltage the relay may open or close under specified load. Stand-off/hold-off and dielectric ratings are withstand tests and should not be treated as hot-switching capability.
Dry reed relays are low-bounce, not universally zero-bounceUse model datasheets for operate time and bounce behavior. Reserve bounce-free language for mercury wetted contacts or explicitly specified designs.
Load type controls lifeCapacitive inrush, inductive energy and hot-switching conditions can reduce contact life. Confirm load type, duty cycle and safety margin through datasheet review and RFQ.

Typical applications

  • Semiconductor ATE and wafer probe switching
  • Medical high-voltage diagnostic equipment
  • Cable / insulation / hipot test systems
  • Precision instrumentation and high-voltage multiplexing

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

HRM12-12A04 ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering HRM12-12A04?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for HRM12-12A04?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Semiconductor ATE and wafer probe switching, Medical high-voltage diagnostic equipment, Cable / insulation / hipot test systems, Precision instrumentation and high-voltage multiplexing.

Recommended next steps

HRM12-12A04 selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView High Voltage Reed Relays familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download HRM12-12A04 Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

HRM12-12A04

12-channel High Voltage Reed Relay Module, 12V Coil

The HRM12-12A04 is a 12-channel high-voltage reed relay module in a DIN rail or M4 screw mounting package, driven by a 12VDC coil. With dielectric strength up to 4 KVDC (series), an LED status indicator, and professional circuit protection, it installs easily into control cabinets for industrial automation and high-voltage switching applications.

Key Specifications

Module type 12-channel high-voltage reed relay module
Mounting DIN rail or M4 screw mounting
Nominal coil voltage 12 VDC
Pickup voltage (max) 9 VDC
Dropout voltage (min) 1 VDC
Operate voltage (max) 16 VDC
Coil resistance 400 Ω ±10% at 20°C
Contact rating 100 W
Max switching voltage 1000 V (max DC/peak AC)
Max switching current 1.0 A (max DC/peak AC)
Max carry current 2.5 A
Contact resistance 150 mΩ
Dielectric strength, between contacts 4000 VDC (static)
Dielectric strength, contact to coil 4000 VDC (static)
Insulation resistance 1011 Ω
Operate / release time 1.0 ms / 0.1 ms
Life expectancy 5×107 operations (at 500VDC, 10mA)
Operating temperature -20°C to +70°C
Storage temperature -35°C to +105°C
Indicator LED status indicator
Compliance RoHS

Key Highlights

  • 12-channel high-voltage relay module
  • Dielectric strength up to 4 KVDC
  • LED status indicator
  • Professional circuit protection
  • Industrial control grade
  • Custom design available, RoHS compliant

Applications

  • Industrial control systems
  • Automation equipment
  • High-voltage switching cabinets
  • Test and measurement

Coil data for the 12V version; contact and relay ratings per the HRM series datasheet. Refer to the HRM datasheet or submit an RFQ to confirm the exact configuration.

Additional information

Dimensions 15 × 15 × 15 cm
