Molded Reed Switch Datasheets

1. Features

Output reliable contact switch
High-end sensor applications
High insulation resistance
Suitable for low power operation
Custom design available
Conforming to RoHS directive

2. Performance Data

Parameter	Value
Rated Power (max.)	10 W
Switching Voltage (Max DC/Peak AC)	180 V / AC 260/DC 200 V
Switching Current (Max DC/Peak AC)	0.5 A / AC 0.3/DC 0.4 A
Carry Current (max.)	1.25-1.4 A
Contact Resistance (@0.5V & 50mA)	150 mΩ
Breakdown Voltage	250-400 VDC
Insulation Resistance	10⁹-10¹⁰ Ω
Operating Time (max.)	0.7 ms
Release Time (max.)	0.05-1.5 ms
Capacitance (typ.)	0.3-1.5 pF
Vibration Resistance	20 G
Shock Resistance	30 G
Operating Temperature	-30~-40 ~ +80 °C
Storage Temperature	-40 ~ +85 °C

3. Example of Order Marking

MRS08 - □ - □ - □ - □ (XXX)

| Position | Description | Options |

----------	-------------	---------
①	Product model	MRS08
②	Contact form	1A: Form A; 1B: Form B; 1C: Form C
③	Switch characteristic	1: 10W; 2: 10W(HV)
④	Magnetic sensitivity (AT)	A: 05-10; B: 10-15; C: 15-20; D: 20-25; E: 25-30; F: 30-35; G: 35-40
⑤	Cable Length (mm)	1: 200; 2: 300; 3: 500; 4: 1000; 5: 1500; 6: 2000; 7: 3000; 8: 5000
⑥	Special code	Customer special requirement

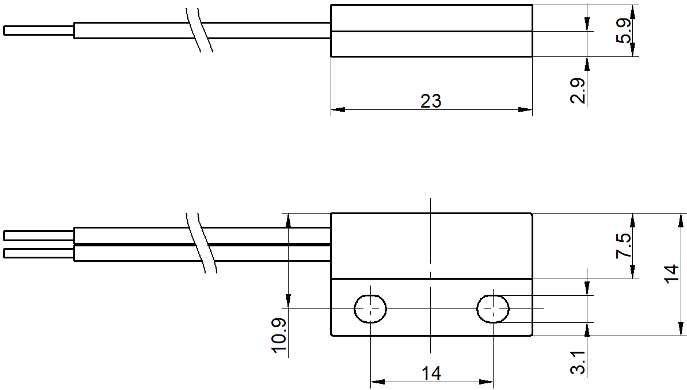

4. Outline Drawing

MRS08 Outline Drawing

Refer to technical drawings for exact dimensions and mounting configuration.

5. Layout

MRS08 PCB Layout

Standard PCB footprint layout for MRS08 series switches.

6. Precautions for Use

1. Environment: Avoid installation in areas directly exposed to rain, strong magnetic fields, or near objects with thermal radiation.

2. Density: Avoid excessive bulk density in use, which may affect the electrical characteristics of the switch.

3. Mechanical Shock: Excessive mechanical shock strength may change its magnetic sensitivity or even damage the switch.

4. Soldering: Use appropriate pin tightening or heat dissipation to prevent mechanical or thermal stress during welding.

5. Welding Parameters: The maximum welding temperature is 260°C and the time is less than 5 seconds.

Technical Support

For specific parameters and performance details, please refer to the specifications and samples provided by SHR AUTOSENSOR TECH LIMITED.

Performance parameters vary from application area to application area. Customers should choose the appropriate product according to the specific conditions of use.

Contact Information:

SHR AUTOSENSOR TECH LIMITED

📧 Email: [email protected]

🌐 Website: www.reed-relay.com

Disclaimer

This document is for customer reference only. Specifications and parameters may be changed due to product improvement without further notice.

*Document Version: 2.0*
