MSIP-1A05S-ATE Miniature SIP Reed Relay

Technical product information for engineering review. Request datasheet, samples, pricing, lead time, or a cross-reference recommendation for this part.

Request Quote Cross Reference

Msip 1a05b

MSIP-1A05S-ATE Miniature SIP Reed Relay

MSIP-1A05S-ATE Miniature SIP Reed Relay for engineering selection. ATE-optimized version for automatic test equipment. Coil 5 VDC. 1 Form A contact. 250 VAC peak / DC switching. 30 W rating.

Price on Request

This item needs engineering confirmation before purchase. Send quantity, application and target specifications for pricing.

Request Pricing Email Sales

Sample, Datasheet & Engineering Support

  • Model: MSIP-1A05S-ATE
  • Purchase path: RFQ first
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

SKU: MSIP-1A05S-ATE Category:
Model detail

MSIP-1A05S-ATE product details, applications and specifications

Select this family for compact signal-level switching. Confirm breakdown voltage, coil power and switching current against the model datasheet before final design. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

Msip 1a05b
Standard & Miniature Reed Relay principle illustration
1Control coil drive
2Hermetic reed switch
3SIP / miniature package
4PCB signal output

Main specifications for RFQ

Public model
MSIP-1A05S-ATE
Product family
MSIP Miniature SIP Reed Relays
Voltage classes
Signal-level ratings by series; model-specific breakdown voltage per datasheet
Contact forms
1 Form A / 1 Form B and series-dependent options
Coil options
5 VDC / 12 VDC / 24 VDC nominal; custom coils on request
Insulation focus
Sealed low-leakage signal switching
Mounting
PCB through-hole, SMD or connector options
Datasheet
Available as individual PDF for this model
Datasheet-style view

MSIP-1A05S-ATE technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Voltage classes
Signal-level ratings by series; model-specific breakdown voltage per datasheet

Coil / control data

Coil options
5 VDC / 12 VDC / 24 VDC nominal; custom coils on request

Contact / output data

Contact forms
1 Form A / 1 Form B and series-dependent options

Mechanical & mounting

Insulation focus
Sealed low-leakage signal switching
Mounting
PCB through-hole, SMD or connector options

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.

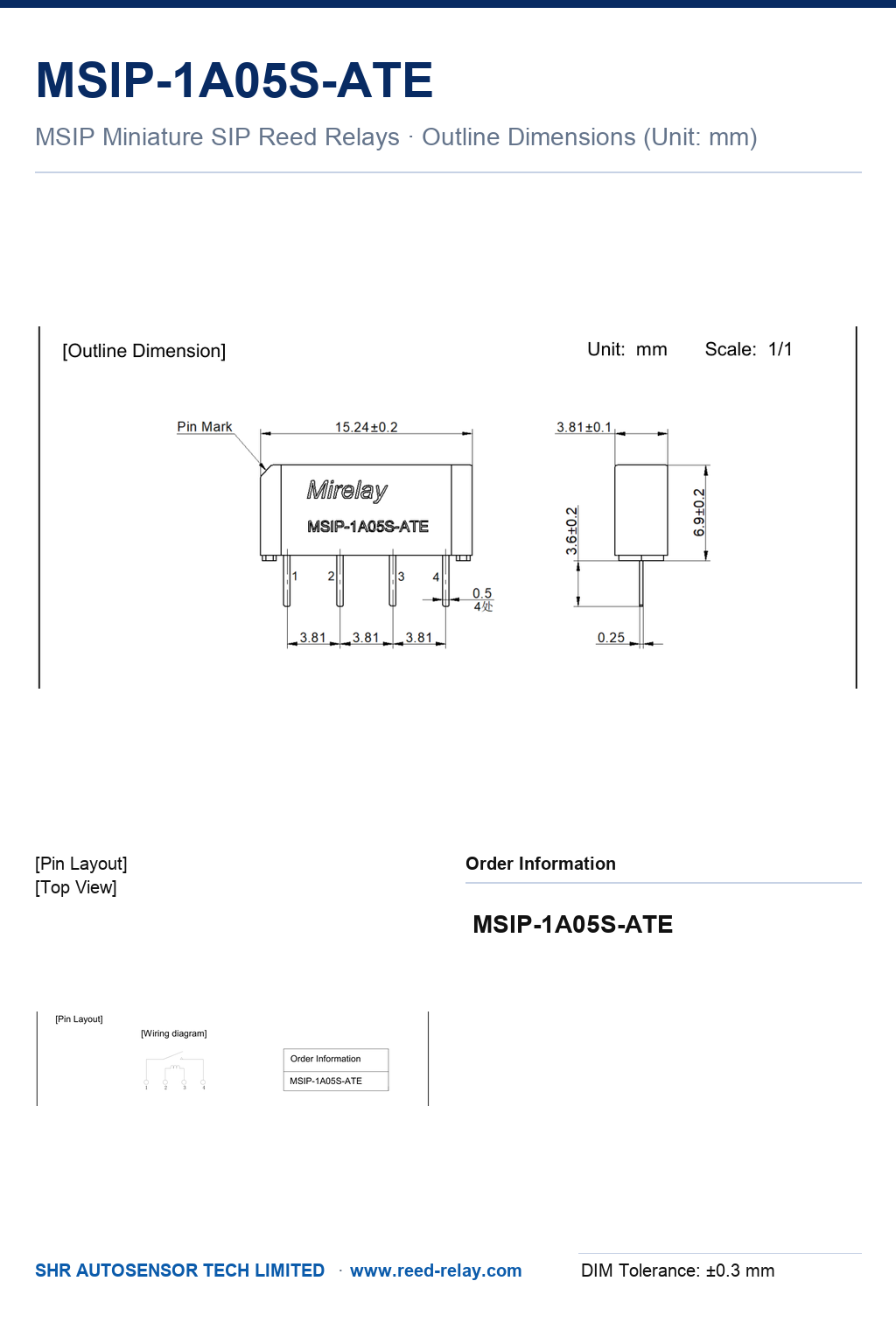

  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For reed relays, keep switching voltage, stand-off/hold-off voltage and dielectric strength separate during selection.
  • Product family context: Standard & Miniature Reed Relay.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Separate switching, stand-off and dielectric ratingsSwitching voltage is the voltage the relay may open or close under specified load. Stand-off/hold-off and dielectric ratings are withstand tests and should not be treated as hot-switching capability.
Dry reed relays are low-bounce, not universally zero-bounceUse model datasheets for operate time and bounce behavior. Reserve bounce-free language for mercury wetted contacts or explicitly specified designs.
Load type controls lifeCapacitive inrush, inductive energy and hot-switching conditions can reduce contact life. Confirm load type, duty cycle and safety margin through datasheet review and RFQ.

Typical applications

  • Test and measurement equipment
  • Telecom and data-line switching
  • Industrial control boards
  • Medical diagnostic instruments

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

MSIP-1A05S-ATE ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering MSIP-1A05S-ATE?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for MSIP-1A05S-ATE?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Test and measurement equipment, Telecom and data-line switching, Industrial control boards, Medical diagnostic instruments.

Recommended next steps

MSIP-1A05S-ATE selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView MSIP Miniature SIP Reed Relays familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download MSIP-1A05S-ATE Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

MSIP-1A05S-ATE Miniature SIP Reed Relay for engineering selection. ATE-optimized version for automatic test equipment. Coil 5 VDC. 1 Form A contact. 250 VAC peak / DC switching. 30 W rating. Values are organized from the professional datasheet for engineering pre-selection. Confirm final switching load, insulation and footprint before order.

SeriesMSIP
Withstand0.25 kV
Coil5 VDC
Contact1 Form A
Browse HTML DatasheetDownload PDF DatasheetRequest Engineering RFQ

Technical specifications

Nominal coil voltage 5 VDC
Max Operating voltage 15 VDC
Max Pull-in voltage 3.8 VDC
Min Drop-out voltage 0.4 VDC
Coil Resistance 400 Ω
Contact Form 1 Form A
Max Contact Rating 30 W
Max Switch Voltage 250 VAC peak / DC
Max Switch Current 1.0 A
Max Carrying Current 1.5 A
Min Breakdown Voltage 250 VDC
Max Contact Resistance 100 mΩ
Dielectric Strength coil/contact 1.2 kVDC
Insulation Resistance coil/contact 1.00E+12 Ω
Operate Time (incl. Bounce) 0.5 ms
Reset Time 0.3 ms
Capacitance Across Contacts 1.0 pF
Storage Temperature -35 to +105 °C
Operating Temperature -20 to +70 °C
Soldering Temperature 260 °C, 5 sec max

Selection notes

  • Separate switching voltage from dielectric/breakdown withstand voltage.
  • Check contact form, coil drive and PCB/package outline before design-in.
  • Confirm pin layout (BS / S variants) and PCB footprint before design-in.
