SMD-105J SMD Reed Relay

Technical product information for engineering review. Request datasheet, samples, pricing, lead time, or a cross-reference recommendation for this part.

Request Quote Cross Reference

IMG_5376

SMD-105J SMD Reed Relay

SMD-105J Surface-Mount (SMD) Reed Relay for engineering selection. Coil 5 VDC. 1 Form A contact. 100 V switching. 10 W rating. Values are organized from the professional datasheet for engineering pre-selection.

Price on Request

This item needs engineering confirmation before purchase. Send quantity, application and target specifications for pricing.

Request Pricing Email Sales

Sample, Datasheet & Engineering Support

  • Model: SMD-105J
  • Purchase path: RFQ first
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

Buy Sample

Shipping included · In stock · Ships within 72 hours

SKU: SMD-105J Category:
Model detail

SMD-105J product details, applications and specifications

Select this family for compact signal-level switching. Confirm breakdown voltage, coil power and switching current against the model datasheet before final design. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

IMG_5376
Standard & Miniature Reed Relay principle illustration
1Control coil drive
2Hermetic reed switch
3SIP / miniature package
4PCB signal output

Main specifications for RFQ

Public model
SMD-105J
Product family
SMD Reed Relays
Contact form
1 Form A
Max operating voltage
8 VDC
Max pull-in voltage
3.8 VDC
Min drop-out voltage
0.7 VDC
Coil resistance
150 Ω
Max carrying current
1.0 A
Min breakdown voltage
200 VDC
Max contact resistance
150 mΩ
Insulation resistance
1.00×1012 Ω
Reset time
0.05 ms
Datasheet
Available as individual PDF for this model

Specifications above are extracted from the live product content for this model. Confirm final ratings, drawings and ordering code through the PDF datasheet or RFQ before production use.

Datasheet-style view

SMD-105J technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Voltage classes
Signal-level ratings by series; model-specific breakdown voltage per datasheet

Coil / control data

Coil options
5 VDC / 12 VDC / 24 VDC nominal; custom coils on request

Contact / output data

Contact forms
1 Form A / 1 Form B and series-dependent options

Mechanical & mounting

Insulation focus
Sealed low-leakage signal switching
Mounting
PCB through-hole, SMD or connector options

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.

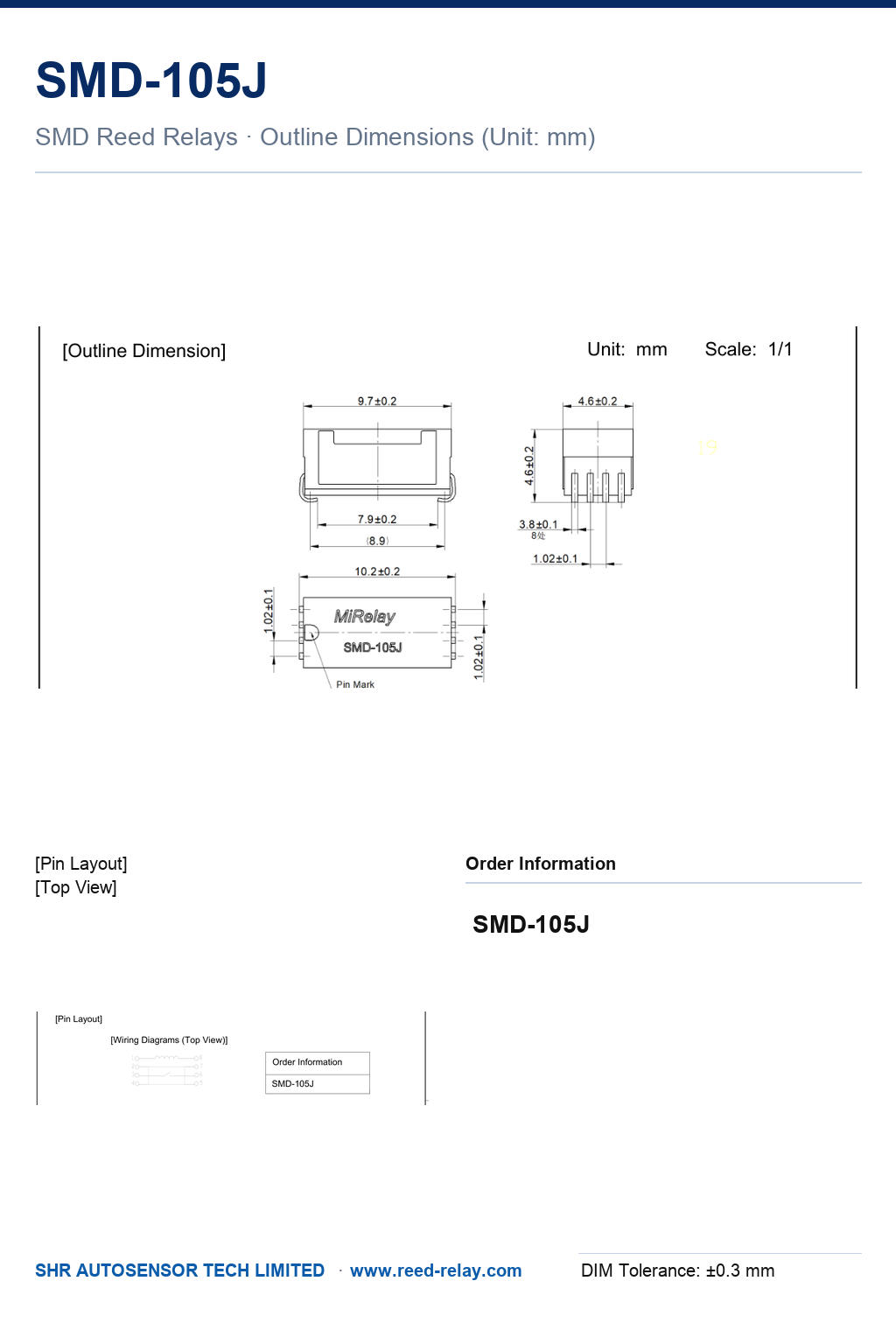

  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For reed relays, keep switching voltage, stand-off/hold-off voltage and dielectric strength separate during selection.
  • Product family context: Standard & Miniature Reed Relay.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Separate switching, stand-off and dielectric ratingsSwitching voltage is the voltage the relay may open or close under specified load. Stand-off/hold-off and dielectric ratings are withstand tests and should not be treated as hot-switching capability.
Dry reed relays are low-bounce, not universally zero-bounceUse model datasheets for operate time and bounce behavior. Reserve bounce-free language for mercury wetted contacts or explicitly specified designs.
Load type controls lifeCapacitive inrush, inductive energy and hot-switching conditions can reduce contact life. Confirm load type, duty cycle and safety margin through datasheet review and RFQ.

Typical applications

  • Test and measurement equipment
  • Telecom and data-line switching
  • Industrial control boards
  • Medical diagnostic instruments

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

SMD-105J ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering SMD-105J?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for SMD-105J?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

Test and measurement equipment, Telecom and data-line switching, Industrial control boards, Medical diagnostic instruments.

Recommended next steps

SMD-105J selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView SMD Reed Relays familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download SMD-105J Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

SMD-105J

SMD Reed Relay, 5V Coil, 1 Form A

The SMD-105J is a surface-mount reed relay in a compact SMD package for automated PCB assembly. Driven by a 5VDC coil, it offers 10W contact rating with fast operate time of 0.3ms, suitable for high-volume telecom, test and industrial applications.

Key Specifications

Package SMD, surface mount
Contact form 1 Form A
Nominal coil voltage 5 VDC
Max operating voltage 8 VDC
Max pull-in voltage 3.8 VDC
Min drop-out voltage 0.7 VDC
Coil resistance 150 Ω
Max contact rating 10 W
Max switching voltage 100 V
Max switching current 0.5 A
Max carrying current 1.0 A
Min breakdown voltage 200 VDC
Max contact resistance 150 mΩ
Dielectric strength 1.5 KVDC (contact/shield, contact/coil, shield/coil)
Insulation resistance 1.00×1012 Ω
Operate time (incl. bounce) 0.3 ms
Reset time 0.05 ms
Operating temperature -20°C to +80°C
Soldering temperature 260°C max, 5 sec

Key Highlights

  • SMD package for automated assembly
  • Fast operate time
  • Low contact resistance
  • Magnetic shield option (MSG series)
  • Suitable for reflow soldering

Applications

  • Telecom and communication equipment
  • Automatic test equipment
  • Industrial control systems
  • High-volume consumer electronics

Specifications per the SMD-105J datasheet (SHR). Refer to the datasheet for outline dimensions and pad layout.
