## Introduction
In automated test equipment (ATE) for semiconductors, precision is everything. A single microsecond of contact bounce can cause measurement errors that result in false failures – costing manufacturers thousands of dollars in rework and damaged reputation.
This is where mercury-wetted reed relays (HGFR series) stand apart from conventional dry reed relays.
## What Makes Mercury Wet Reed Relays Different?
### The Physics of Zero Bounce
Unlike dry reed relays that rely on magnetic force to snap contacts together, mercury-wetted relays use a pool of liquid mercury to bridge the contacts. When the coil energizes, the mercury instantly creates a liquid bridge between contacts. Since mercury remains liquid at standard operating temperatures (-25C to +70C), there is zero mechanical bounce.
### Key Advantages
– Contact Bounce: 0ms (vs 0.5-1.5ms for dry relays)
– Contact Resistance: 50-100mOhm (vs 100-200mOhm)
– Max Switching Speed: 3kHz (vs 500Hz)
– Hot Switching: Excellent (vs Limited)
– Life Cycle: 10^8 operations (vs 10^7)
## Applications Where Zero Bounce Matters
### 1. Semiconductor Test Equipment
In IC test handlers, HGFR relays route test signals to DUTs (Devices Under Test). Any bounce during the critical measurement window causes false reads. Mercury wet relays eliminate this risk.
### 2. High-Speed Data Acquisition
For ADC/DAC testing, timing accuracy within nanoseconds is required. The zero-bounce characteristic ensures each measurement is captured at the exact intended moment.
### 3. RF Signal Routing
In RF test systems, mercury wet relays provide consistent, bounce-free switching for frequencies up to 3GHz.

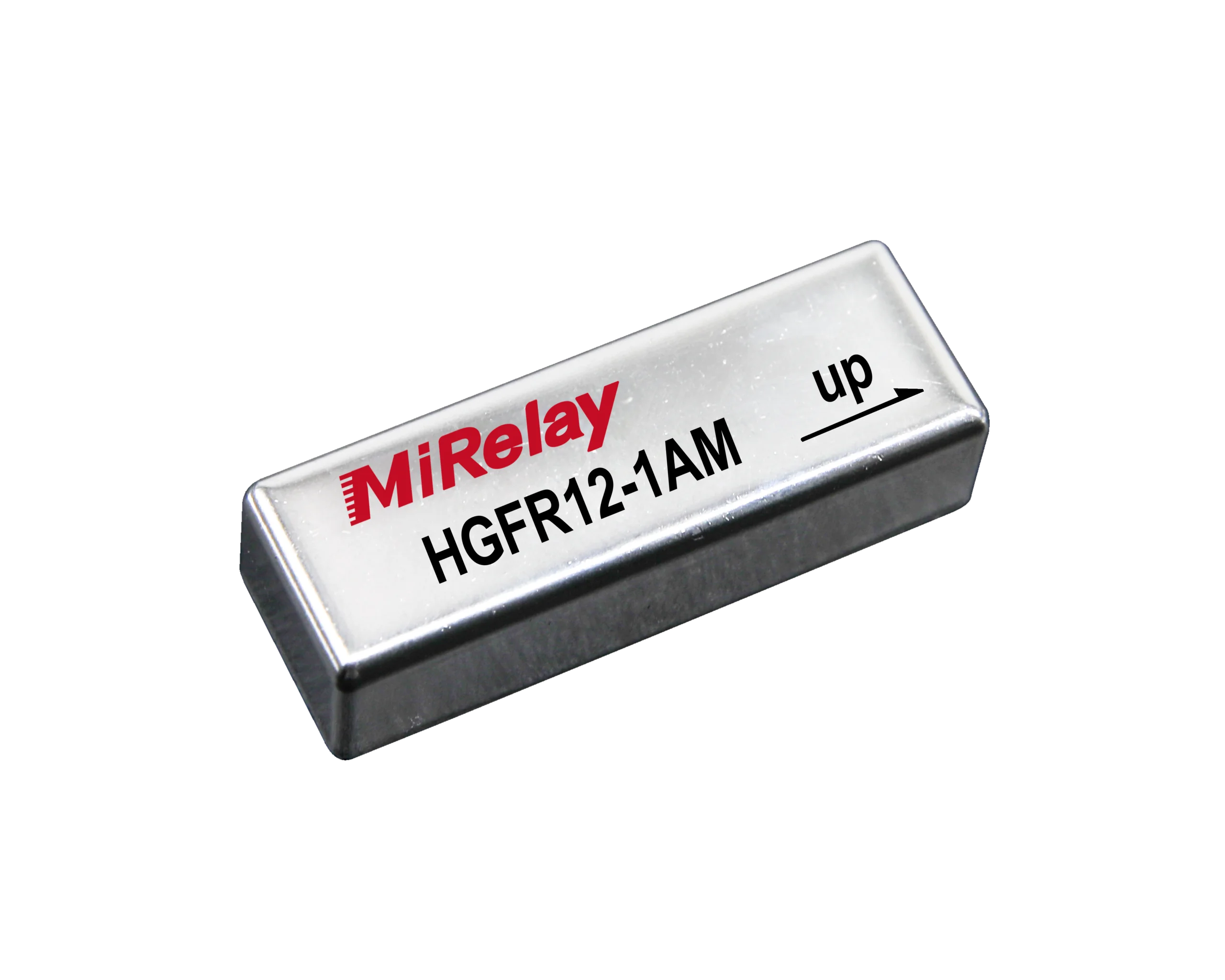

## HGFR Series Specifications
– HGFR-101: Form A, 1A/500V – General purpose
– HGFR-102: Form A, 2A/500V – High current
– HGFR-201: Form C, 1A/500V – Changeover
– HGFR-301: Form A, 4A/500V – Power switching
## Conclusion
When your test system cannot afford contact bounce, mercury-wetted reed relays deliver reliable, consistent performance that dry reed relays simply cannot match.
