MRS20 Series - Reed Proximity Switch (Bistable Magnetic Latching)
1. Features
- Output reliable contact switch
- High-end sensor applications
- Bistable magnetic latching technology
- Suitable for low power operation
- Custom design available
- Conforming to RoHS directive
2. Performance Data
| Parameter | Units | Value | |
|---|---|---|---|
| Contact Type | / | E (Bistable Magnetic Latching) | |
| Rated Power (max.) | W | 10 | 100 |
| Switching Voltage (Max DC/Peak AC) | V | 180 | 1000 |
| Switching Current (Max DC/Peak AC) | A | 0.5 | 1.0 |
| Carry Current (max.) | A | 1.25 | 2.5 |
| Contact Resistance (@0.5V & 50mA) | mΩ | 150 | 150 |
| Insulation Resistance (Rh <45%, 100V Test) | Ω | 10¹⁰ | 10¹⁰ |
| Vibration (0~2000Hz) | G | 20 | 20 |
| Shock Resistance (11ms, 1/2 sine wave) | G | 30 | 30 |
| Operating Temperature | °C | -40 ~ +80 | -40 ~ +80 |
| Storage Temperature | °C | -40 ~ +85 | -40 ~ +85 |
3. Example of Order Marking
MRS20 - □ - □ - (XXX)
| Position | Description | Options |
| ---------- | ------------- | --------- |
|---|---|---|
| ① | Product model | MRS20 |
| ② | Contact form | 1E: Form E (Bistable Magnetic Latching) |
| ③ | Switch characteristic | 1: 10W; 2: 100W |
| ④ | Special code | Customer special requirement |
4. Outline Drawing
1) MRS20-1E-1 (10W Version)
2) MRS20-1E-2 (100W Version)
Refer to technical drawings for exact dimensions and mounting configuration.

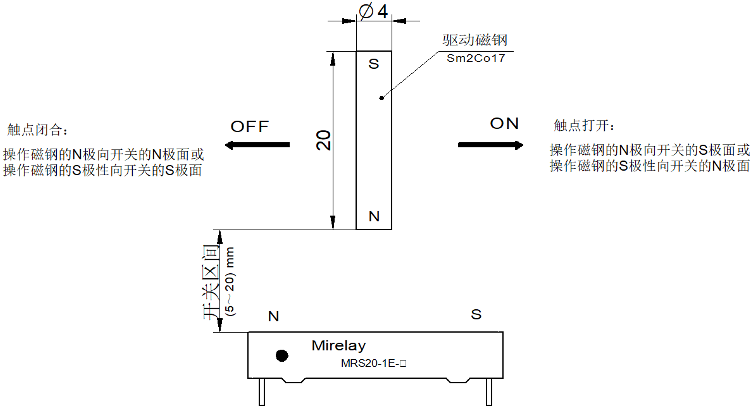

5. Operation Type
The bistable magnetic latching mechanism maintains state without continuous power, making it ideal for energy-efficient applications.
6. Precautions for Use
1. Environment: Avoid installation in areas directly exposed to rain, strong magnetic fields, or near objects with thermal radiation.
2. Density: Avoid excessive bulk density in use, which may affect the electrical characteristics of the switch.
3. Mechanical Shock: Excessive mechanical shock strength may change its magnetic sensitivity or even damage the switch.
4. Mounting: Use appropriate mounting methods to reduce switching distance and avoid installation on any ferromagnetic material surface.
Technical Support
For specific parameters and performance details, please refer to the specifications and samples provided by SHR AUTOSENSOR TECH LIMITED.
Performance parameters vary from application area to application area. Customers should choose the appropriate product according to the specific conditions of use.
Contact Information:
SHR AUTOSENSOR TECH LIMITED
📧 Email: [email protected]
🌐 Website: www.reed-relay.com
Disclaimer
This document is for customer reference only. Specifications and parameters may be changed due to product improvement without further notice.
