Relais Reed HVFR

HVFR Series

High Power Open-Frame Reed Relays. Featuring Tungsten contacts for high inrush capability and excellent heat dissipation. Available in Vertical and Flat mounting options.

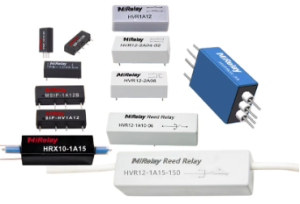

HVFR Relay
4kV Breakdown Volts
1000V Switching Volts
100 W Max Power
1A – 4A Configurations

1 Form A Models (SPST)

Part NumberTension de la bobineInstallationSwitching V.Breakdown V.Action
HVFR05-1A5 VCCVertical1000V4000VQuote
HVFR12-1A12 V CCVertical1000V4000VQuote
HVFR24-1A24 VCCVertical1000V4000VQuote
HVFR05-1A-015 VCCFlat1000V4000VQuote
HVFR12-1A-0112 V CCFlat1000V4000VQuote
HVFR24-1A-0124 VCCFlat1000V4000VQuote

2 Form A Models (DPST)

Part NumberTension de la bobineInstallationSwitching V.Breakdown V.Action
HVFR05-2A5 VCCVertical1000V4000VQuote
HVFR12-2A12 V CCVertical1000V4000VQuote
HVFR24-2A24 VCCVertical1000V4000VQuote
HVFR05-2A-015 VCCFlat1000V4000VQuote
HVFR12-2A-0112 V CCFlat1000V4000VQuote
HVFR24-2A-0124 VCCFlat1000V4000VQuote

3 Form A Models (3PST)

Part NumberTension de la bobineInstallationSwitching V.Breakdown V.Action
HVFR05-3A5 VCCVertical1000V4000VQuote
HVFR12-3A12 V CCVertical1000V4000VQuote
HVFR24-3A24 VCCVertical1000V4000VQuote
HVFR05-3A-015 VCCFlat1000V4000VQuote
HVFR12-3A-0112 V CCFlat1000V4000VQuote
HVFR24-3A-0124 VCCFlat1000V4000VQuote

4 Form A Models (4PST)

Part NumberTension de la bobineInstallationSwitching V.Breakdown V.Action
HVFR05-4A5 VCCVertical1000V4000VQuote
HVFR12-4A12 V CCVertical1000V4000VQuote
HVFR24-4A24 VCCVertical1000V4000VQuote
HVFR05-4A-015 VCCFlat1000V4000VQuote
HVFR12-4A-0112 V CCFlat1000V4000VQuote
HVFR24-4A-0124 VCCFlat1000V4000VQuote

Design Note

Vertical Installation (No Suffix): Ideal for high-density packing on the PCB where height is not restricted.
Flat Installation (-01): Ideal for card cages or applications with strict height restrictions.

Relais Reed HVFRTélécharger
