Relais Reed à haute isolation

HRX Series High Insulation 15kV Isolation

High Insulation Reed Relays

Designed for critical applications requiring ultra-low leakage current and extreme voltage isolation. Featuring >10¹²Ω insulation resistance and up to 15kV stand-off capability.

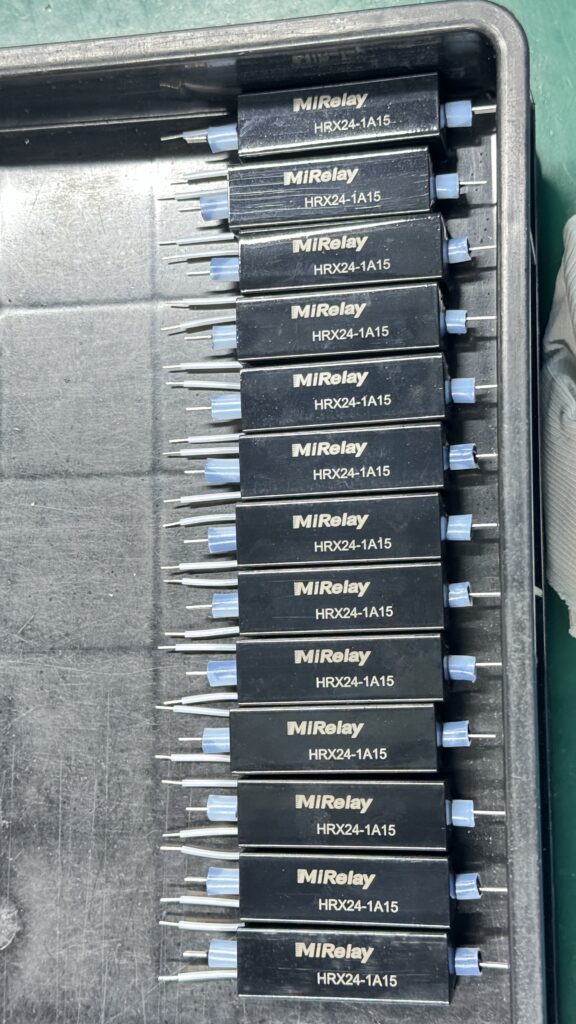

HRX High Insulation Reed Relay
15kV Max Isolation
>10¹²Ω Résistance d'isolement
10kV Tension de commutation
3.0A Switching Current

Aperçu

Le HRX Series is engineered for applications where standard high voltage relays fall short in terms of leakage current. By utilizing specialized potting materials and internal geometry, the HRX series achieves an Insulation Resistance (IR) of greater than 10¹² Ohms.

This ultra-high insulation makes it perfect for measuring pico-ampere signals in high voltage environments, ensuring measurement accuracy is not compromised by the relay itself.

Target Applications

  • Medical: Defibrillator discharge and patient isolation.
  • Test & Measurement: Cable insulation testing (Hipot) and Electrometers.
  • Semiconductor: Wafer leakage testing.
  • Physics: High voltage power supply control.

Ordering Information

10kV Isolation Models

Part Number Tension de la bobine Switching V. Breakdown V. Insulation Res. Datasheet Action
HRX05-1A10 5 VCC 7500V 10000V > 10¹² Ω PDF Quote
HRX12-1A10 12 V CC 7500V 10000V > 10¹² Ω PDF Quote
HRX24-1A10 24 VCC 7500V 10000V > 10¹² Ω PDF Quote

15kV Isolation Models

Part Number Tension de la bobine Switching V. Breakdown V. Insulation Res. Datasheet Action
HRX05-1A15 5 VCC 10000V 15000V > 10¹² Ω PDF Quote
HRX12-1A15 12 V CC 10000V 15000V > 10¹² Ω PDF Quote
HRX24-1A15 24 VCC 10000V 15000V > 10¹² Ω PDF Quote

Part Number Decoder

HRX [24] – 1A [15]

HRX
High Insulation Series
[24]
Coil: 05, 12, 24 VDC
1A
Formulaire de contact
[15]
Isolation: 10kV, 15kV
HRX10-1A15Télécharger
