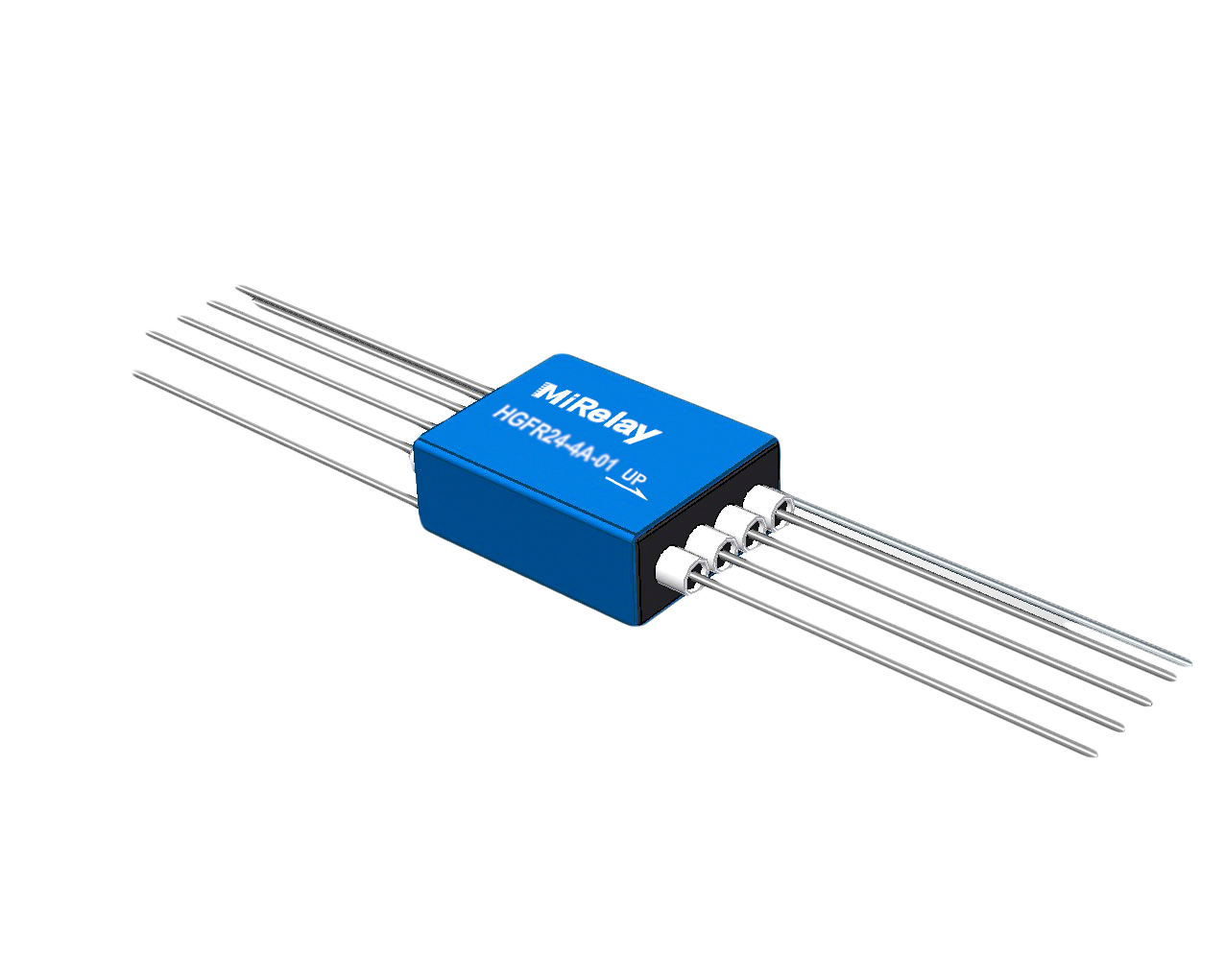

Relais à mercure HGFR

Mercury Wetted Multi-Pole (1A-4A) Flat or Vertical

HGFR Series

Versatile Mercury Wetted Relays offering multiple mounting options and voltage ratings. Available in 1 to 4 poles with switching voltages up to 1500V and carry currents up to 3A.

Relais à mercure HGFR
1000/1500V Tension de commutation
50 W Contacter Notation
3.0A Max Carry Current
2000V Stand-off Voltage

Configuration Flexibility

Le HGFR Series allows engineers to choose the exact specification needed for their application. With options for Flat (01) or Vertical (Blank) mounting, it fits various PCB height restrictions.

Additionally, users can select between Standard (L), High Voltage (H), or High Current (Blank) performance grades.

Series Highlights

  • Standard (L): 1000V Switching.
  • High Voltage (H): 1500V Switching.
  • High Current (Blank): Optimized for current carrying.
  • Zero Bounce: Mercury-wetted reliability.

Ordering Information

Part Number Coil Form Montage Type Switching V. Action
HGFR05-1A01L5V1 Form AFlatStandard1000VQuote
HGFR05-2A01L5V2 Form AFlatStandard1000VQuote
HGFR12-1AL12V1 Form AVerticalStandard1000VQuote
HGFR24-1A01H24V1 Form AFlatHigh Volt1500VQuote
HGFR24-2AH24V2 Form AVerticalHigh Volt1500VQuote
HGFR05-4A5V4 Form AVerticalHigh Current1000VQuote
HGFR12-3A0112V3 Form AFlatHigh Current1000VQuote
HGFR24-4A0124V4 Form AFlatHigh Current1000VQuote

* Note: Mercury relays are position sensitive. Install within ±30° of vertical.

Part Number Decoder

HGFR[05]-[1A][01][L]

[05] Coil: 05, 12, 24 VDC
[1A] Form: 1A, 2A, 3A, 4A
[01] 01: Flat
Blank: Vertical
[L] L: Standard
H: High Volt
Blank: High Current
