EVP-600 High Voltage DC Contactor

Technical product information for engineering review. Request datasheet, samples, pricing, lead time, or a cross-reference recommendation for this part.

Request Quote Cross Reference

EVP-600 High Voltage DC Contactor

EVP-600 High Voltage DC Contactor

EVP-600 High Voltage DC Contactor for engineering selection. Coil 24 VDC (pickup 18 max, dropout 2.4 min, operate 32 max). 1 Form A (SPST-NO) contact.

Price on Request

This item needs engineering confirmation before purchase. Send quantity, application and target specifications for pricing.

Request Pricing Email Sales

Sample, Datasheet & Engineering Support

  • Model: EVP-600
  • Purchase path: RFQ first
  • Production projects: RFQ recommended for final electrical confirmation.

Download PDF DatasheetRequest Production QuoteSample Store

Request QuoteCross Reference

Primary path is RFQ. Use Buy Sample only for engineering validation quantities.

SKU: EVP-600 Categories: , ,
Model detail

EVP-600 product details, applications and specifications

Use this family for DC power-path control where arc suppression, contact life, coil control and thermal design must be confirmed against the real load profile. The table below summarizes the key selection points; use the model datasheet for dimensions, ratings and ordering confirmation.

EVP-600 High Voltage DC Contactor
High Voltage DC Contactor principle illustration
1Battery / DC bus
2Coil drive
3Main contact chamber
4Load / inverter / charger

Main specifications for RFQ

Public model
EVP-600
Product family
4.4KV Reed Relay, EVP High Voltage DC Contactors, High Voltage DC Contactors
Application voltage
High-voltage DC platform; model-specific rating by datasheet
Current range
Model-specific continuous and making/breaking current
Coil voltage
12V / 24V / custom options depending on series
Auxiliary contact
Available on selected models for state feedback
Mounting
Panel, chassis or busbar integration depending on model
Datasheet
Available as individual PDF for this model
Datasheet-style view

EVP-600 technical data by section

Grouped specification blocks make this model page easier to scan for engineering selection, RFQ review and sample validation.

Electrical ratings

Application voltage
High-voltage DC platform; model-specific rating by datasheet
Current range
Model-specific continuous and making/breaking current
Coil voltage
12V / 24V / custom options depending on series

Contact / output data

Auxiliary contact
Available on selected models for state feedback

Mechanical & mounting

Mounting
Panel, chassis or busbar integration depending on model

Ordering / RFQ notes

  • Confirm exact ordering code, coil voltage, contact form and termination style before purchase.
  • Share load voltage/current, load type, duty cycle, ambient temperature and isolation requirement in RFQ.
  • Use the linked PDF datasheet for package drawing, dimensions and final rating limits.
  • For DC contactors, confirm carry current separately from make/break current, including voltage, load type, polarity, pre-charge and expected electrical life.
  • Follow the datasheet for coil suppression/economizer wiring; do not add external suppression if the model prohibits it.
  • Product family context: High Voltage DC Contactor.
Engineering selection notes

Avoid common specification mistakes

These notes keep product pages useful for engineers while avoiding overclaims. Final ratings remain model- and application-specific.

Carry current is not make/break currentContinuous current, making current and breaking current depend on DC voltage, time constant, polarity, pre-charge strategy and expected electrical life. Use the datasheet limits and RFQ review for the real load profile.
Pre-charge and polarity matterDC-link capacitors usually need a pre-charge path. Many DC contactors are polarity-sensitive for interruption, so bidirectional or reverse-current systems require explicit confirmation.
Follow coil suppression instructionsDo not add external flyback diodes or suppression to internally economized/suppressed contactor coils unless the contactor datasheet approves it; delayed release can reduce interrupt capability.

Typical applications

  • EV battery disconnect and pre-charge systems
  • Charging piles and DC fast charging
  • Energy storage systems
  • Industrial DC power and safety isolation

What to confirm before purchase

  • Voltage, current, load type and safety margin
  • Contact form, coil voltage and drive circuit
  • Mounting, wiring, environmental and compliance requirements
  • Sample validation quantity and production forecast
FAQ

EVP-600 ordering FAQ

These visible answers mirror the FAQ structured data and clarify what buyers should confirm before sample approval or production ordering.

What should be confirmed before ordering EVP-600?

Confirm the exact ordering code, coil or control voltage, contact form or output type, voltage/current rating, mounting style, environmental conditions and validation quantity.

Is a PDF datasheet available for EVP-600?

Yes. The model page links to an individual PDF datasheet for engineering review and RFQ confirmation.

What applications is this product family used for?

EV battery disconnect and pre-charge systems, Charging piles and DC fast charging, Energy storage systems, Industrial DC power and safety isolation.

Recommended next steps

EVP-600 selection actions

Use these internal paths to move from overview to model comparison, datasheet review and RFQ submission.

Download model datasheetReview ratings, package drawing and ordering detailsRequest engineering quoteSend load, voltage, quantity and validation requirementsCompare all modelsBrowse the complete model index and related seriesView 4.4KV Reed Relay familyReturn to category guide, comparison and representative modelsFamily catalog PDFOpen the product-family catalog for broader selection

Download EVP-600 Datasheet Request quote for this model Compare all models

English engineering resources

Datasheet, catalog and RFQ support

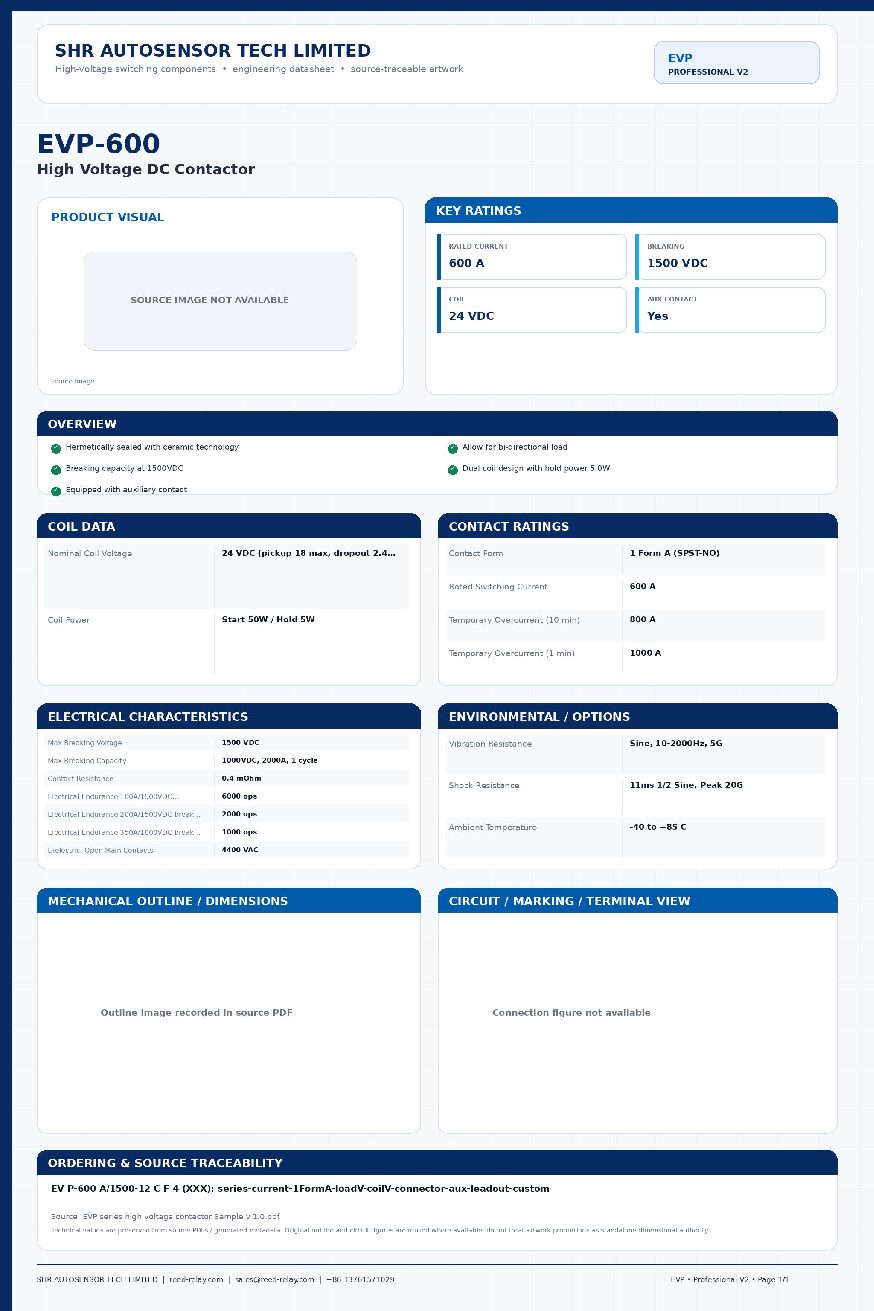

Download the original source datasheet when available; otherwise use the checked generated English datasheet, family catalog, or RFQ path.

Download English Datasheet Family Catalog Complete Catalog Request Engineering Quote

Original source PDFs are preferred when available. Generated English PDFs are used only when no original source PDF is found; final ratings, drawings and application suitability are confirmed by RFQ.

Description

EVP-600 High Voltage DC Contactor for engineering selection. Coil 24 VDC (pickup 18 max, dropout 2.4 min, operate 32 max). 1 Form A (SPST-NO) contact. Values are organized from the professional datasheet for engineering pre-selection. Confirm final switching load, insulation and footprint before order.

SeriesEVP
Withstand4.4 kV
Coil24 VDC (pickup 18 max, dropout 2.4 min, operate 32 max)
Contact1 Form A (SPST-NO)
Download PDF DatasheetRequest Engineering RFQ

Technical specifications

Nominal Coil Voltage 24 VDC (pickup 18 max, dropout 2.4 min, operate 32 max)
Coil Power Start 50W / Hold 5W
Contact Form 1 Form A (SPST-NO)
Rated Switching Current 600 A
Temporary Overcurrent (10 min) 800 A
Temporary Overcurrent (1 min) 1000 A
Max Breaking Voltage 1500 VDC
Max Breaking Capacity 1000VDC, 2000A, 1 cycle
Contact Resistance 0.4 mΩ
Electrical Endurance 100A/1500VDC make-break 6000 ops
Electrical Endurance 200A/1500VDC break only 2000 ops
Electrical Endurance 350A/1000VDC break only 1000 ops
Dielectric, Open Main Contacts 4400 VAC
Dielectric, Main Contact to Coil 4400 VAC
Dielectric, Main to Aux Contacts 4400 VAC
Dielectric, Open Aux Contacts 800 VAC
Insulation Resistance @1000VDC 10^9 ohm min
Operate Time max 50 ms
Release Time max 30 ms
Auxiliary Contact 1 Form A, 3A/24VDC max, 10mA/24VDC min
Vibration Resistance Sine, 10-2000Hz, 5G
Shock Resistance 11ms 1/2 Sine, Peak 20G
Ambient Temperature -40 to +85 C

Selection notes

  • Separate switching voltage from dielectric/breakdown withstand voltage.
  • Check contact form, coil drive and PCB/package outline before design-in.
  • For HRM modules, confirm terminal wiring and panel/cabinet installation requirements.
