Reed relays and mercury wetted relays are both types of electromechanical switches used in various applications, including power systems, telecommunications, and industrial automation. While they share the function of switching electrical circuits, they differ significantly in their construction and operating principles.
Benvenuti a
Relè a lamella SHR
Relè Reed, relè al mercurio, relè bagnati, da 4 kV, 6 kV, 10 kV, 15 kV a 20 kV.
Relè Reed ad alta tensione
Relè Reed da 10KV e 15KV:
- Elevata rigidità dielettrica fino a 15 kV
- Sigillato ermeticamente per una lunga durata
- Bassa resistenza di contatto
- Eccellenti caratteristiche di durata
- Disponibile progettazione personalizzata per resistenza bobina e pinout.
Relè Reed da 4KV e 6KV:
- Elevata rigidità dielettrica fino a 4 kV o 6 kV
- Sigillato ermeticamente per una lunga durata
- Bassa resistenza di contatto
- Eccellenti caratteristiche di durata
- Disponibile design personalizzato.

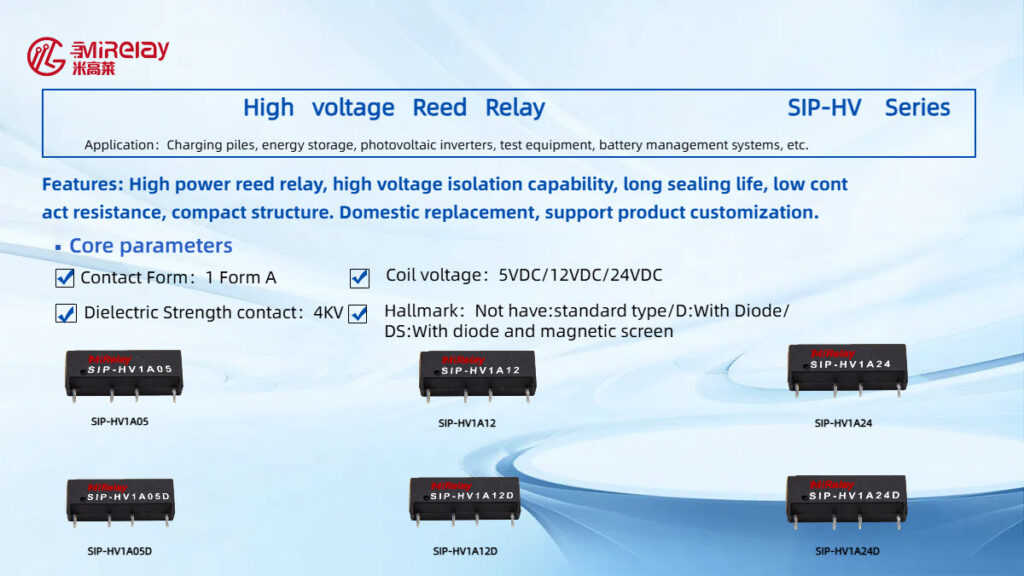

3KV & 4KV SIP-HV SERIES Reed Relay:
- High Dielectric Strength Up to 4kV
- Sigillato ermeticamente per una lunga durata
- Bassa resistenza di contatto
- Eccellenti caratteristiche di durata
- Disponibile design personalizzato.

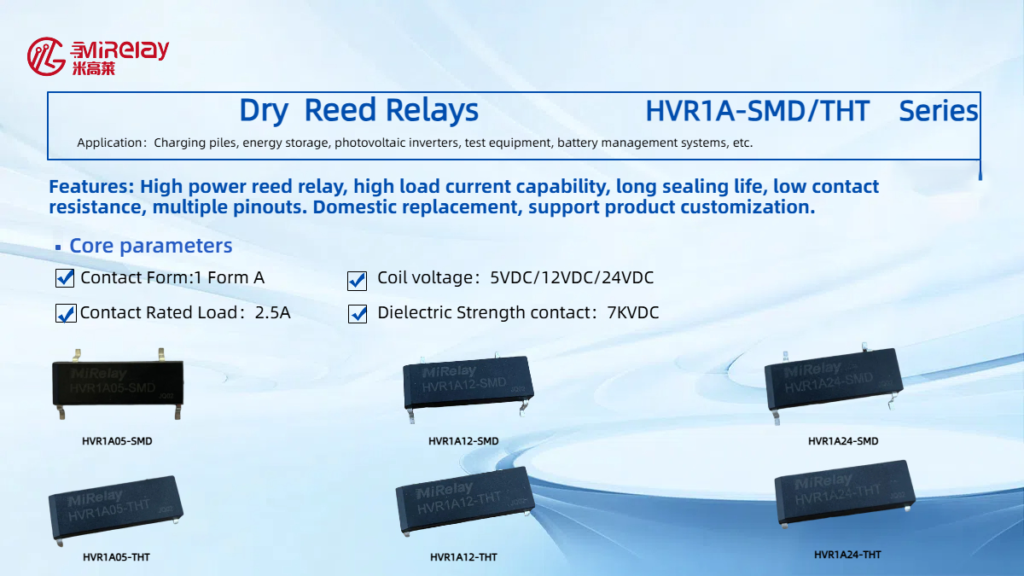

7KV SMD & THT SERIES Reed Relay:
- High Dielectric Strength Up to 7kV
- Sigillato ermeticamente per una lunga durata
- Bassa resistenza di contatto
- Eccellenti caratteristiche di durata
- Disponibile design personalizzato.
Relè a lamella bagnata al mercurio
Relè al mercurio bagnato:
- Relè ad alta potenza bagnato al mercurio, rigidità dielettrica fino a 2000 V CC
- Alta corrente di trasporto
- Bassa resistenza di contatto
- Eccellenti caratteristiche di durata
- Schermo magnetico ed elettrostatico esterno
Modulo relè Reed ad alta tensione:
- Relè Reed su PCB con connettore
- Un buon design per risparmiare spazio
- Design personalizzato disponibile
- Connettore in serie per alta tensione o parallelo per più linee
