HGSR Merkura Relajso

Mercury Wetted High Power Multi-Pole

HGSR Series

Heavy-duty Mercury Wetted Relays designed for high current capability and long life. Featuring up to 2 Form A or 2 Form C contacts with 4kV Isolation and 8.5A Carry Current.

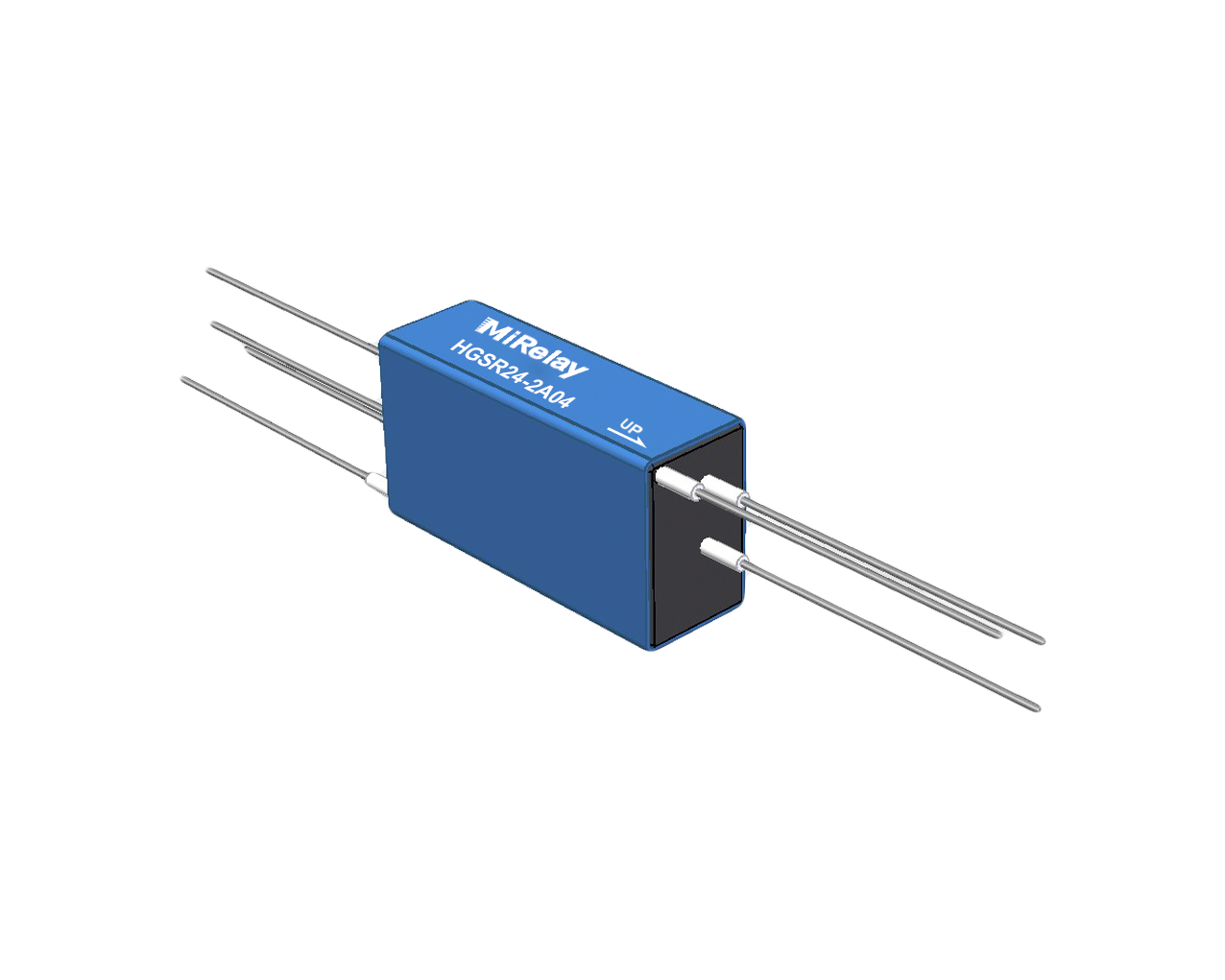

HGSR Mercury Wetted Relay
4kV Stand-Off Voltage
100W Kontakta Taksado
8.5A Max Carry Current
2.0A Switching Current

Industrial Grade Performance

La HGSR Series utilizes advanced mercury-wetted technology to provide “bounce-free” switching with high power handling capabilities. It is specifically engineered for applications requiring high reliability over billions of operations.

Unlike smaller relays, the HGSR can support multi-pole configurations (such as **2 Form A** and **2 Form C**) while maintaining high dielectric strength (**4000V**) between coil and contact.

Series Highlights

  • Zero Contact Bounce: Ideal for precision instrumentation.
  • High Carry Current: Up to 8.5A continuous load.
  • Multi-Pole: Available in 1A, 2A, 1C, and 2C forms.
  • High Voltage: 4000V Stand-off protection.

Ordering Information

Part Number Coil Kontakta Formo Isolation Switching V. Action
HGSR05-1A045V1 Form A4000V500VQuote
HGSR05-2A045V2 Form A4000V500VQuote
HGSR05-1C045V1 Form C4000V500VQuote
HGSR05-2C045V2 Form C4000V500VQuote
HGSR12-1A0412V1 Form A4000V500VQuote
HGSR12-2A0412V2 Form A4000V500VQuote
HGSR12-1C0412V1 Form C4000V500VQuote
HGSR12-2C0412V2 Form C4000V500VQuote
HGSR24-1A0424V1 Form A4000V500VQuote
HGSR24-2A0424V2 Form A4000V500VQuote
HGSR24-1C0424V1 Form C4000V500VQuote
HGSR24-2C0424V2 Form C4000V500VQuote

* Note: Mercury relays are position sensitive. Install within ±30° of vertical.

Part Number Decoder

HGSR[05]-[1A][04]

HGSR Series Name
[05] Coil: 05, 12, 24 VDC
[1A] Form: 1A, 2A, 1C, 2C
[04] Isolation: 04 = 4000V
